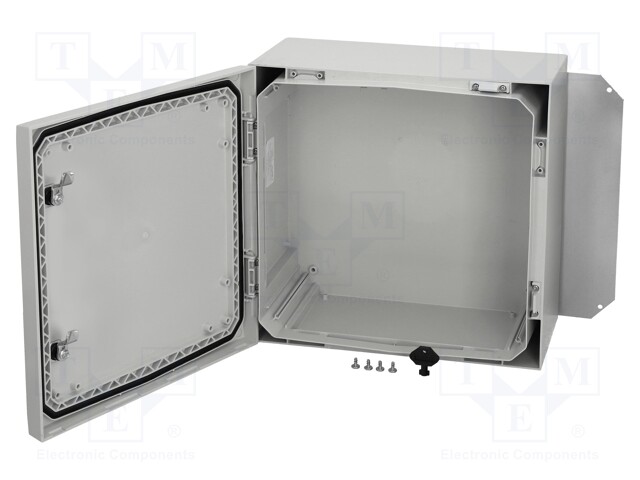

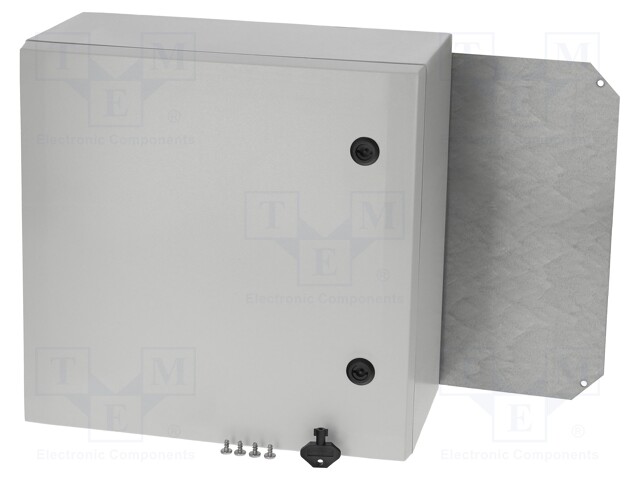

Enclosure: wall mounting; X: 400mm; Y: 400mm; Z: 210mm; ARCA; grey
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
ARCA 404021
Tootja: FIBOX
Tootja tootekood: ARCA 404021
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDCB783A1B41E6720D2&compId=ARCA_DE_EN.pdf?ci_sign=d188f43387019031a19a421c07d6af42a091ea96
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDCB79C726E01E5E0D2&compId=ARCA404021_EN.pdf?ci_sign=170e4f15fa3c7193b11ae6127195957c5efc6f35
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDDAA8A1EA0C1E0C0D3&compId=FIBOX%20GROUP.txt?ci_sign=3279eee6074d1752cc1d4c3324a8505dbbe5f778
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDDBEF0B86EACBFA0D5&compId=fibox.txt?ci_sign=951ab67ab6b41421b28cf94fca71315f820268cc
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDF85D4F61EC14FC0D6&compId=FIBOX_Mat.txt?ci_sign=ba466ad526cfe3efd6882fe5fc8b801129db56e1
Spetsifikatsioon tootele Enclosure: wall mounting; X: 400mm; Y: 400mm; Z: 210mm; ARCA; grey
| Operating temperature | -40...80°C |
| IP rating | IP66 |
| Enclosure material | polycarbonate |
| Type of enclosure | wall mounting |
| Resistance to | to weather conditions, UV rays |
| Flammability rating | UL94-5VA |
| Dimension Y | 400mm |
| Body colour | grey |
| Dimension X | 400mm |
| Dimension Z | 210mm |
| Kit contents | lock, mounting plate, mounting screws |
| Cover colour | grey |
| Mechanical impact resistance | IK10 |
