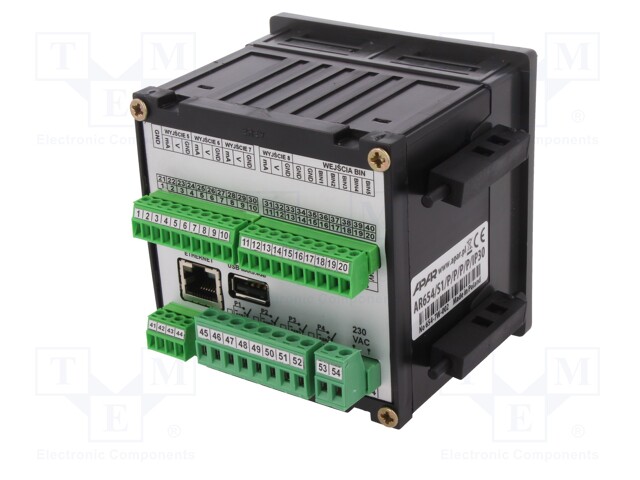

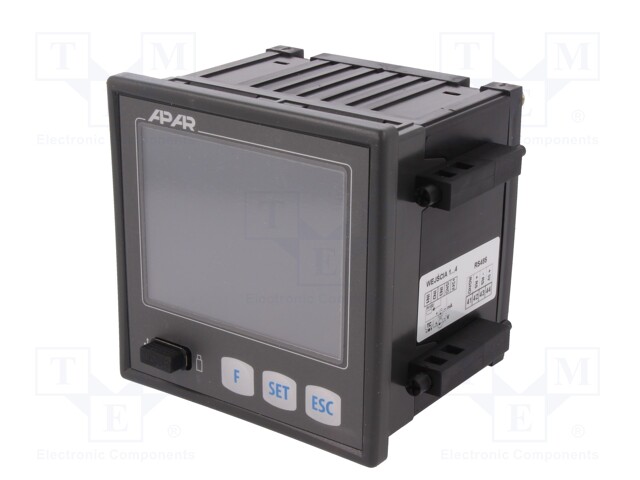

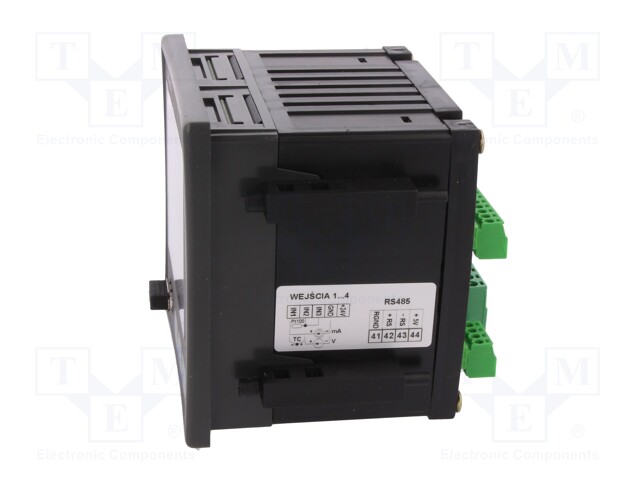

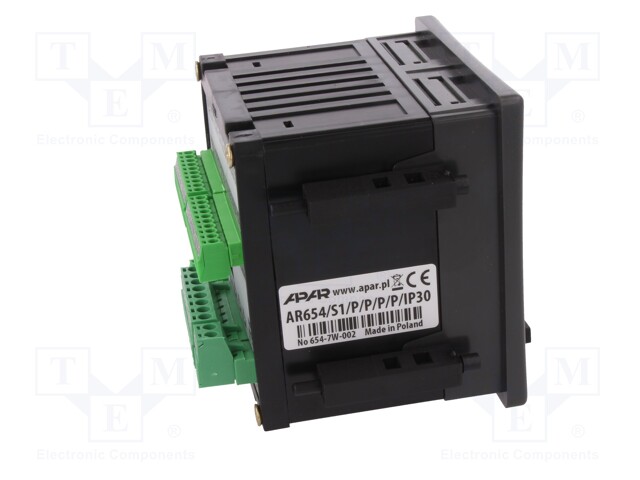

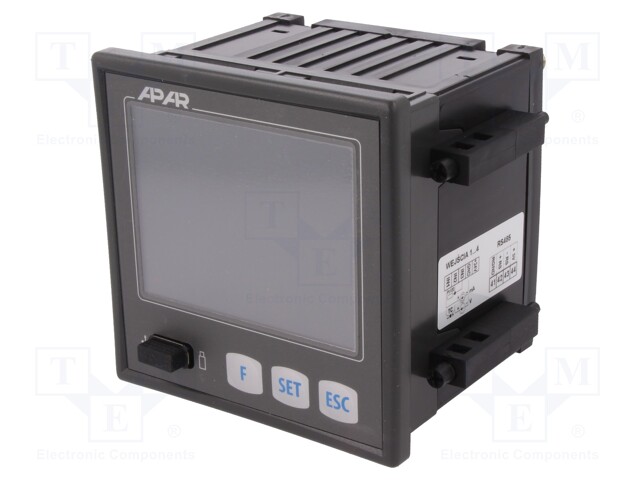

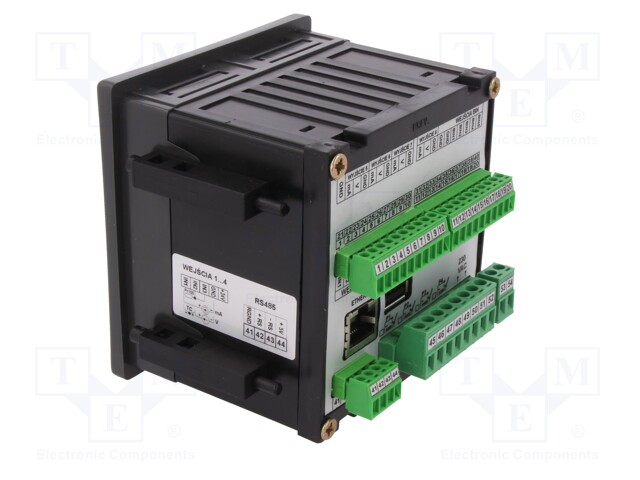

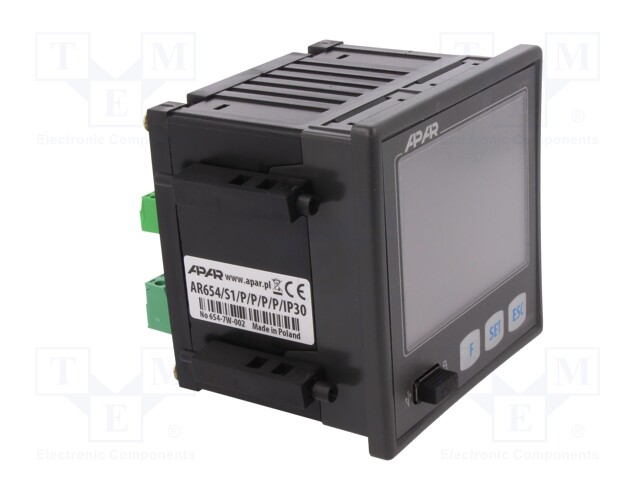

Four channel regulator; 24VAC; 24VDC; IP30 (from the front)
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
AR654/S2/P/P/P/P/IP30
Tootja: APAR
Tootja tootekood: AR654/S2/P/P/P/P/IP30
Product downloads
Spetsifikatsioon tootele Four channel regulator; 24VAC; 24VDC; IP30 (from the front)
| Mounting | on panel, panel |
| Supply voltage | 24V AC, 24V DC |
| Operating temperature | 0...50°C |
| IP rating | IP30 (from the front) |
| Type of module | four channel regulator |
| Mounting hole diameter | 92x89mm |
| Body dimensions | 96x96x79mm |
| Kind of display used | LCD TFT 3,5" |
| Additional functions | display brightness adjustment, error messages on the LED display, locked by password, transducers power supply 24V DC |
| Display resolution | 320x240 |
| Kind of input 1 | 0...10V, 0...20mA, 0...60mV, 0...850Ω, 4...20mA, universal |
| Kind of temperature sensor | Ni100, Pt100, Pt1000, Pt500, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T |
| Controlled parameter | fluid flow, humidity, pressure, speed, temperature |
| Kind of output 1 | SPST-NO |
| The programming method | computer disk, foil keypad, memory stick, MODBUS, RS485, USB |
| Kind of output 2 | SPST-NO |
| Kind of output 3 | SPST-NO |
| Kind of output 4 | SPST-NO |
| Input 1 properties | 4 channel, RTD, thermocouple |
| Regulation for output 1 | AUTOTUNING, ON-OFF with hysteresis, PID, PROGRAM |
