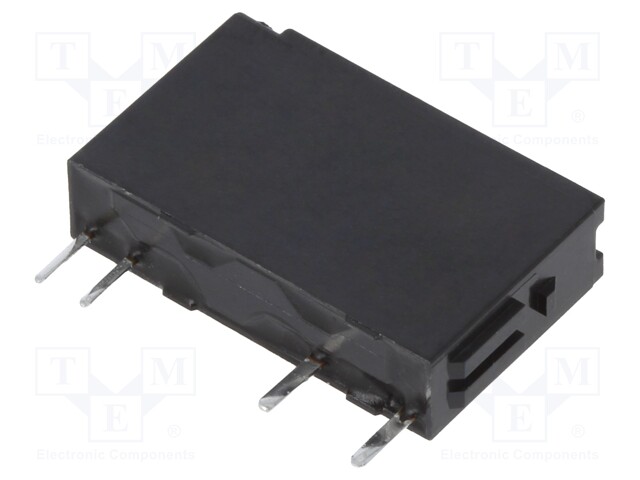

Relay: electromagnetic; SPST-NO; Ucoil: 4.5VDC; 5A/250VAC; 110mW

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: APAN314H
    Tootja: PANASONIC
    Tootja tootekood: APAN314H
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    8,69 € 8,69 € (KM-TA) 8.69 EUR

    8,69 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 4.5VDC; 5A/250VAC; 110mW

    Mounting PCB
    Operating temperature -40...90°C
    Contact material AgNi + Au
    Terminal pitch 5.08mm
    Body dimensions 20x5x12.8mm
    Mechanical durability 20000000cycles
    Switched voltage ≤ 110V DC, ≤ 250V AC
    Coil resistance 184Ω
    Rated coil voltage 4.5V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 3.15V DC
    Coil power consumption 110mW
    Operate time 10ms
    Release time 5ms
    Coil current 24.4mA
