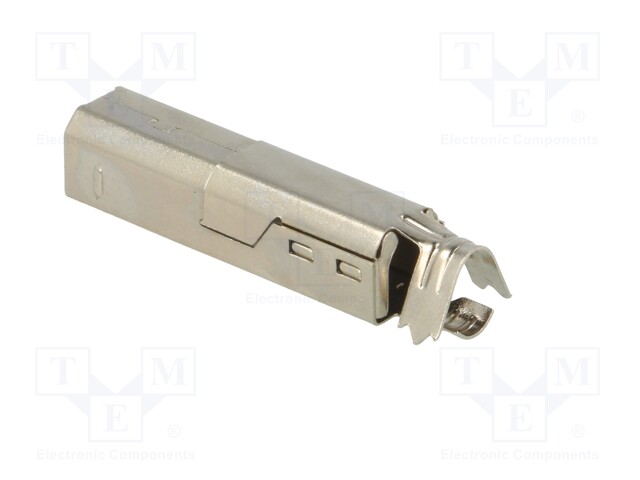

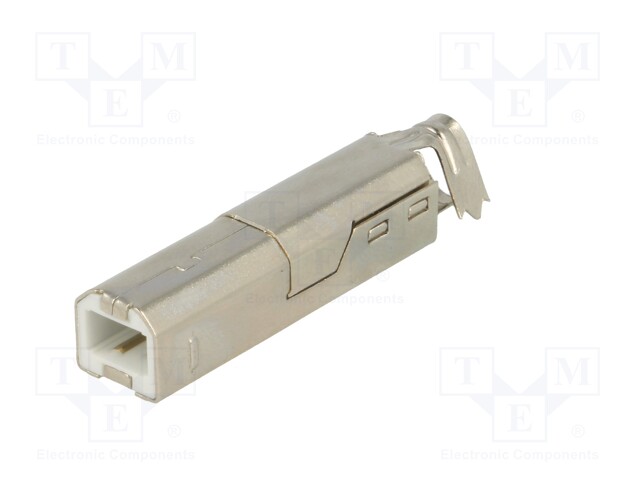

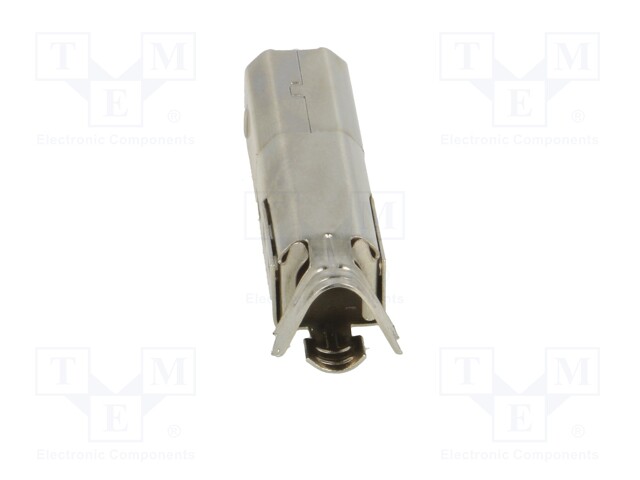

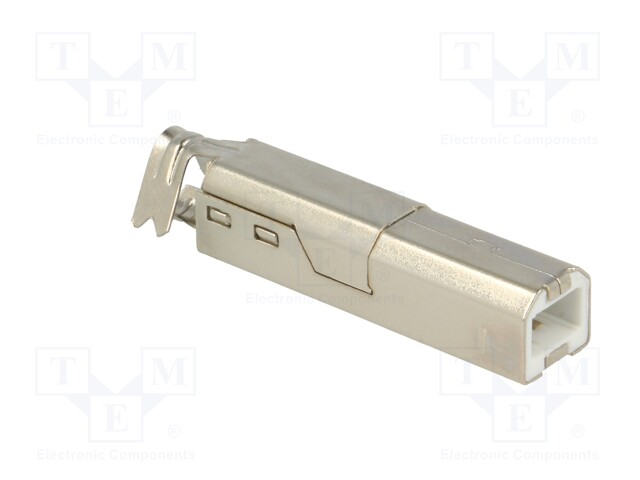

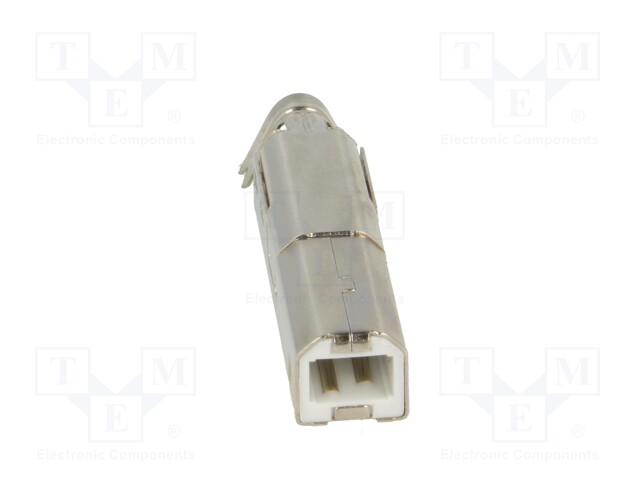

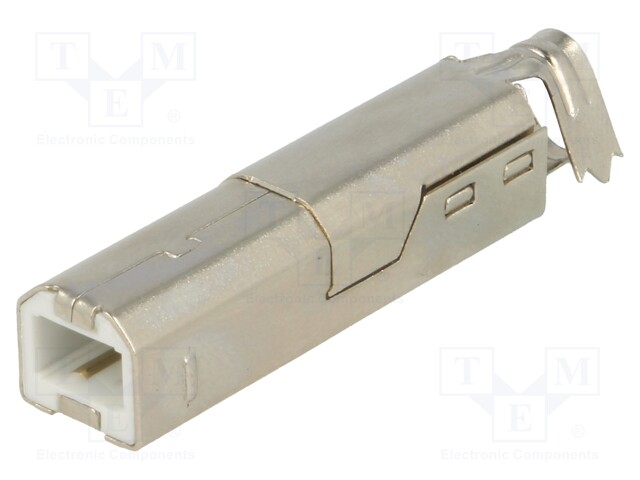

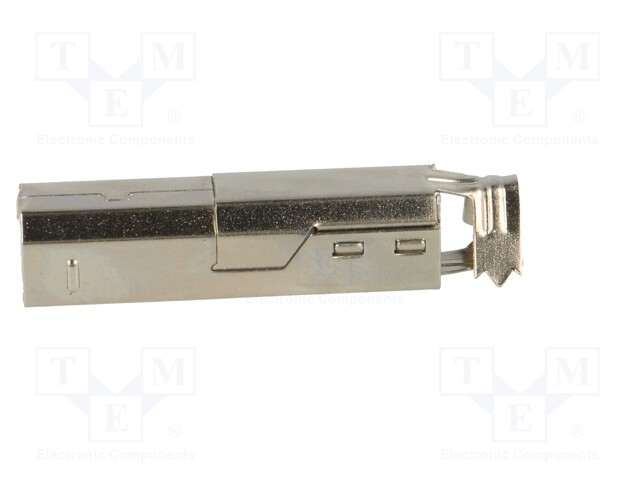

Plug; USB B; for cable; soldering; PIN: 4; straight; USB 2.0; 1A; 30V

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 926
    Tootja: KEYSTONE
    Tootja tootekood: 926
    • Operating temperature
    • Electrical mounting
    • Connector
    • Mechanical mounting
    • Contact plating
    • Contact plating
    • Type of connector
    • Number of pins
    • Version
    • Contact material
    • Max. contact resistance
    • Flammability rating
    • Mechanical durability
    • Current rating
    • Rated voltage
    • Spatial orientation
    • Insulator material

    2,96 € 2,96 € (KM-TA) 2.96 EUR

    2,96 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Plug; USB B; for cable; soldering; PIN: 4; straight; USB 2.0; 1A; 30V

    Operating temperature -25...80°C
    Electrical mounting soldering
    Connector plug
    Mechanical mounting for cable
    Contact plating gold flash, nickel plated
    Type of connector USB B
    Number of pins 4
    Version USB 2.0
    Contact material phosphor bronze
    Max. contact resistance 15mΩ
    Flammability rating UL94V-0
    Mechanical durability 1500cycles
    Current rating 1A
    Rated voltage 30V
    Spatial orientation straight
    Insulator material thermoplastic
