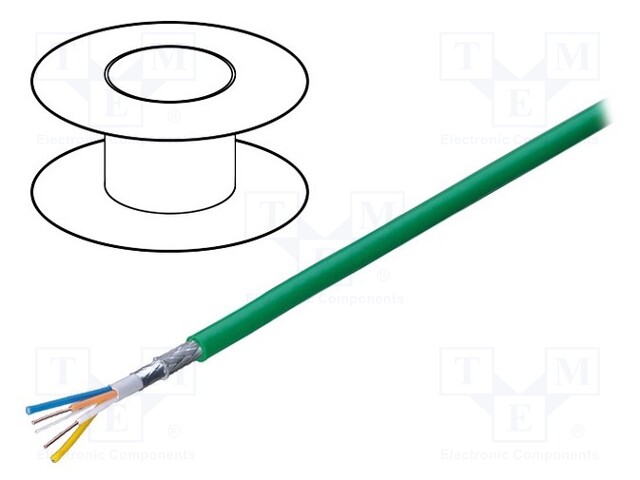

Wire; industrial Ethernet,PROFINET; 5e; solid; Cu; 4x22AWG; PVC
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
70006E.01500
Tootja: BELDEN
Tootja tootekood: 70006E.01500
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE8DEB4C51902760D5&compId=70006E.01305.pdf?ci_sign=66fd8c47bfe43b9ece1b78781f15532f14bd6379
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE96F178AFA5BD40D5&compId=Ethernet%20Cable.txt?ci_sign=339abd646a4ab99851aa83b6a70ec6e35878c062
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE96F178AFA5BD40D5&compId=Ethernet%20Cable.txt?ci_sign=339abd646a4ab99851aa83b6a70ec6e35878c062
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE96F178AFA5BD40D5&compId=Ethernet%20Cable.txt?ci_sign=339abd646a4ab99851aa83b6a70ec6e35878c062
- pVersion=0046&contRep=ZT&docId=8954D222ECA01EDDB4BEB9086843E0D4&compId=kable.txt?ci_sign=7b3d2dd3b18122de9bd4adb1264f5299c9ecabd9
- pVersion=0046&contRep=ZT&docId=E1C042F2F8FD87F1A6F5005056AB5A8F&compId=70006x-70007x.pdf?ci_sign=9cabc972a5306918e7e8057544e43af1401b9dfb
Spetsifikatsioon tootele Wire; industrial Ethernet,PROFINET; 5e; solid; Cu; 4x22AWG; PVC
| Operating temperature | -40...80°C |
| Core structure | solid |
| Kind of core | Cu |
| Number of cores | 4 |
| Resistance to | most of oils, most of solvents, mechanical stesses |
| Wire insulation material | PVC |
| Ethernet category | Cat 5e |
| Kind of wire | SF/UTP |
| Cable external diameter | 6.5mm |
| Insulation colour | green |
| Cable application | industrial Ethernet, PROFINET |
| Type of wire | data transmission |
| Shield structure | aluminium foil, tinned copper braid |
| CPR standard | E<sub>ca</sub> |
