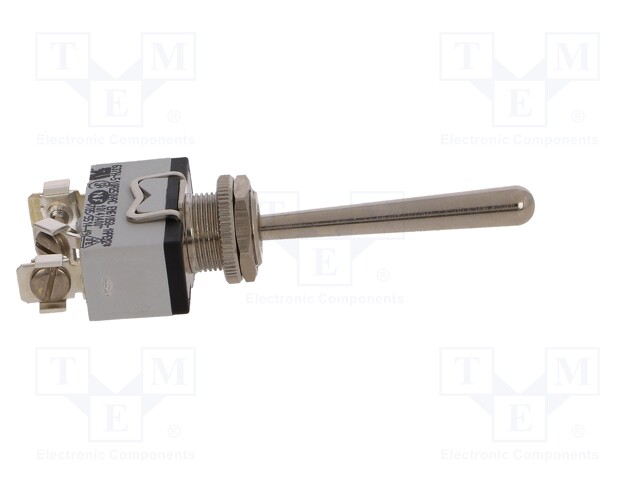

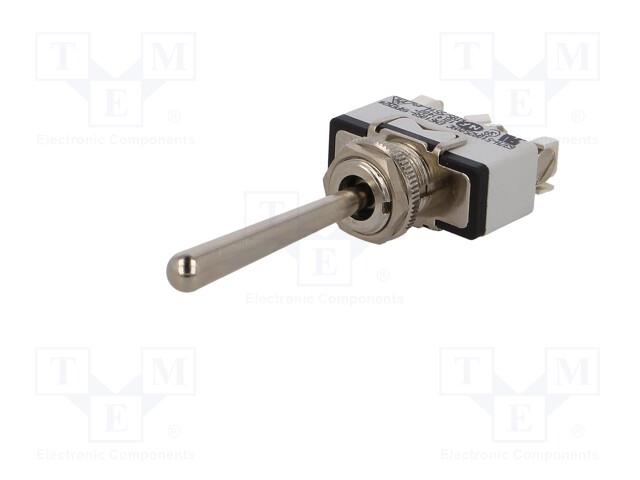

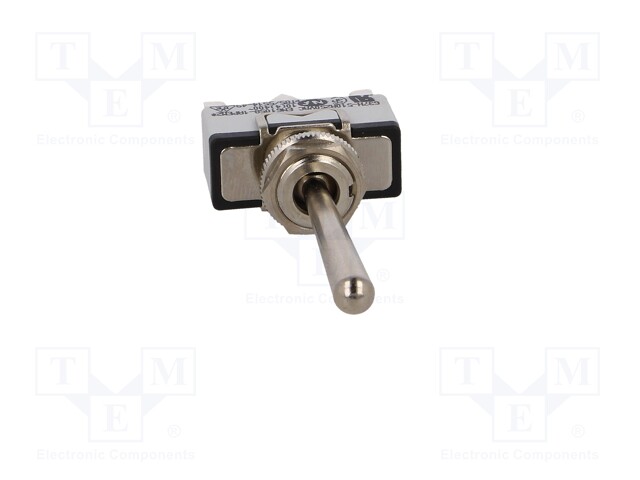

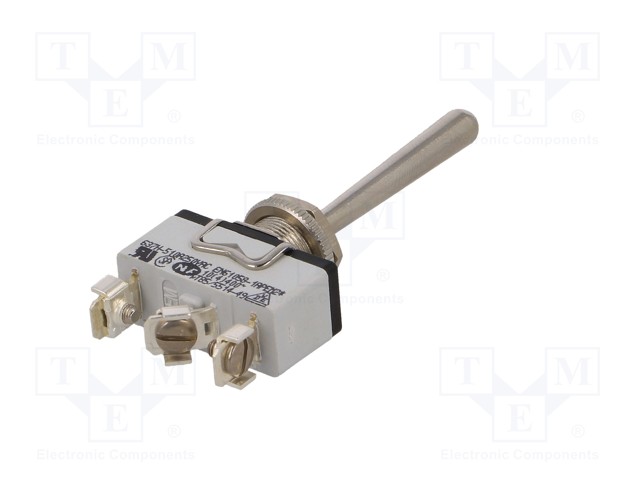

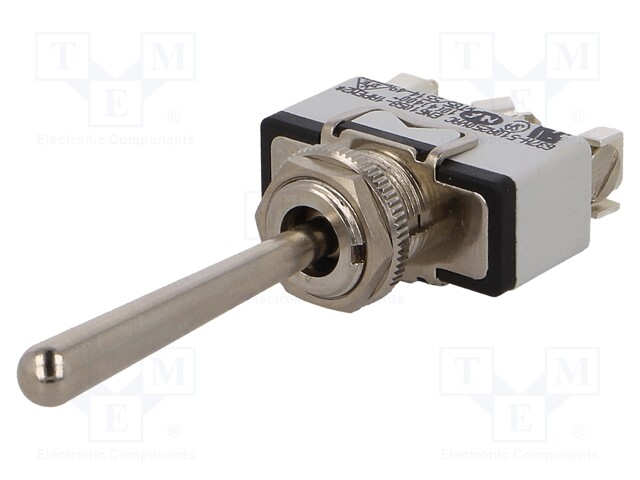

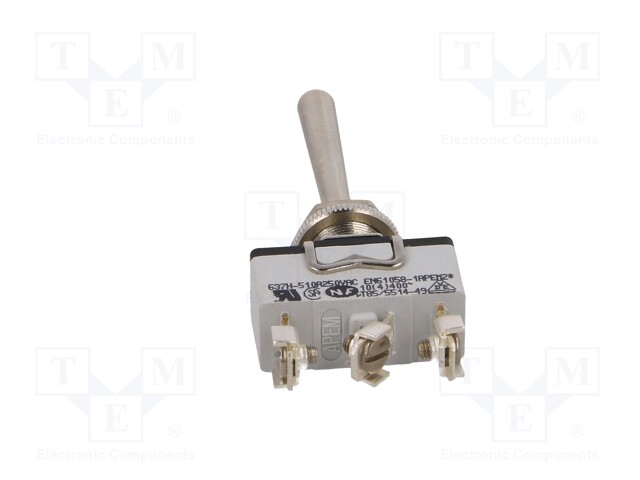

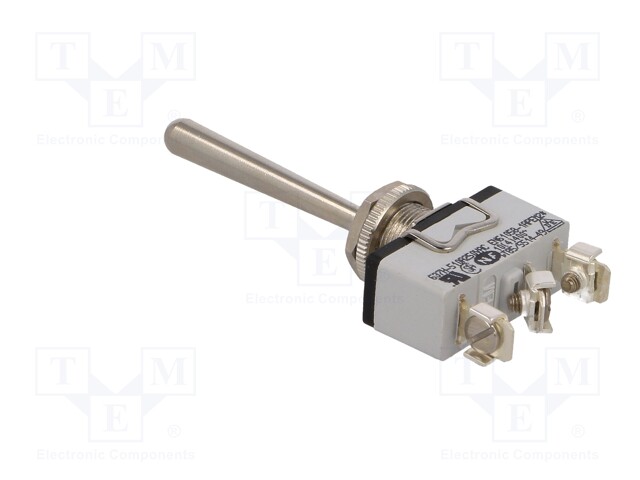

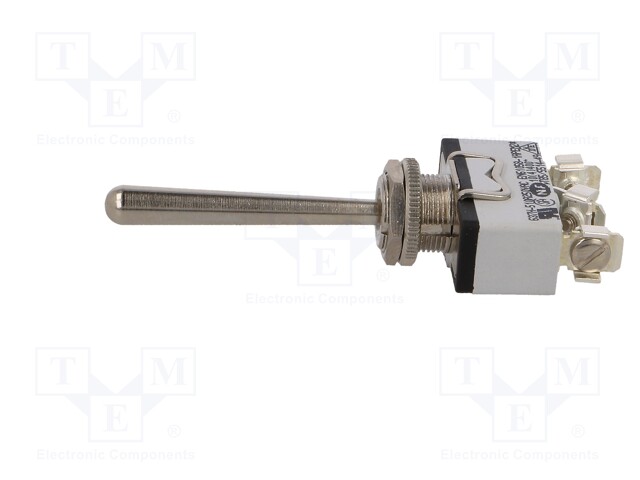

Switch: toggle; Pos: 3; SP3T; (ON)-OFF-(ON); 15A/250VAC; 5A/25VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 637H-5
    Tootja: APEM
    Tootja tootekood: 637H-5
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Max. contact resistance
    • Mounting hole diameter
    • Body dimensions
    • Panel thickness
    • Min. insulation resistance
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Knob height
    • Kind of toggle

    11,85 € 11,85 € (KM-TA) 11.85 EUR

    11,85 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: toggle; Pos: 3; SP3T; (ON)-OFF-(ON); 15A/250VAC; 5A/25VDC

    Operating temperature -20...55°C
    Type of switch toggle
    Contact plating silver nickel alloy
    Number of positions 3
    Leads screw terminals
    Max. contact resistance 10mΩ
    Mounting hole diameter Ø12.2mm
    Body dimensions 29.5x14x15mm
    Panel thickness ≤ 4.5mm
    Min. insulation resistance 1GΩ
    Electrical life 10000cycles
    Contacts configuration SP3T
    DC contacts rating @R 5A / 25V DC
    AC contacts rating @R 15A / 250V AC
    Switching method (ON)-OFF-(ON)
    Stable positions number 1
    Knob height 40mm
    Kind of toggle round
