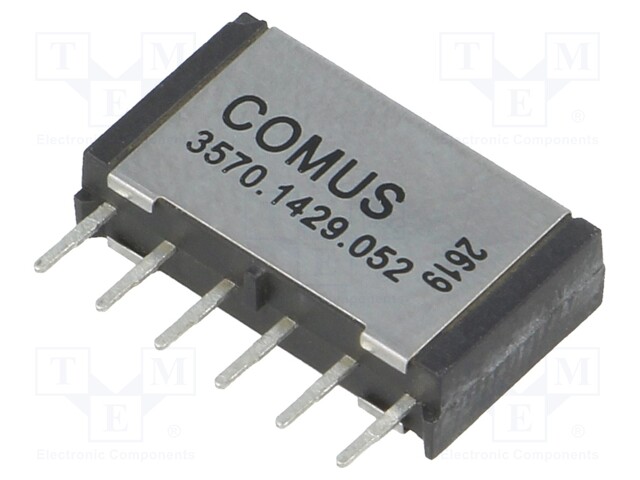

Relay: reed; DPST-NO; Ucoil: 5VDC; 1A; max.200VDC; 15W; Rcoil: 375Ω

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 3570.1429.052
    Tootja: COMUS
    Tootja tootekood: 3570.1429.052
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Relay features
    • Optional equipment

    5,09 € 5,09 € (KM-TA) 5.09 EUR

    5,09 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; DPST-NO; Ucoil: 5VDC; 1A; max.200VDC; 15W; Rcoil: 375Ω

    Mounting THT
    Case SIP
    Operating temperature -40...85°C
    Terminal pitch 2.54mm
    Body dimensions 15.2x8.89x3.81mm
    Switched voltage ≤ 200V DC
    Switching capacity 15W
    Coil resistance 375Ω
    Rated coil voltage 5V DC
    Contacts configuration DPST-NO
    Contact resistance 150mΩ
    Contact current max. 1A
    Coil voltage max. 7V DC
    Type of relay reed
    Coil voltage min. 3.8V DC
    Relay features high reliability
    Optional equipment electrostatic shield
