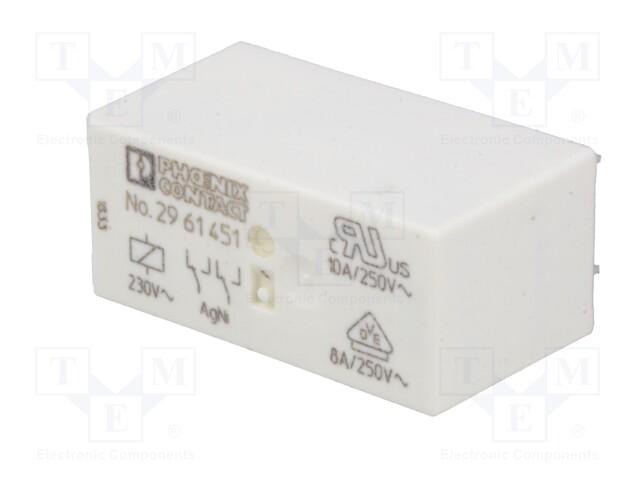

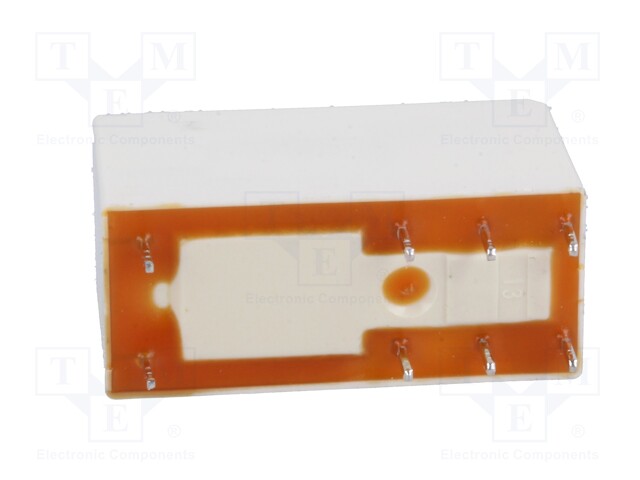

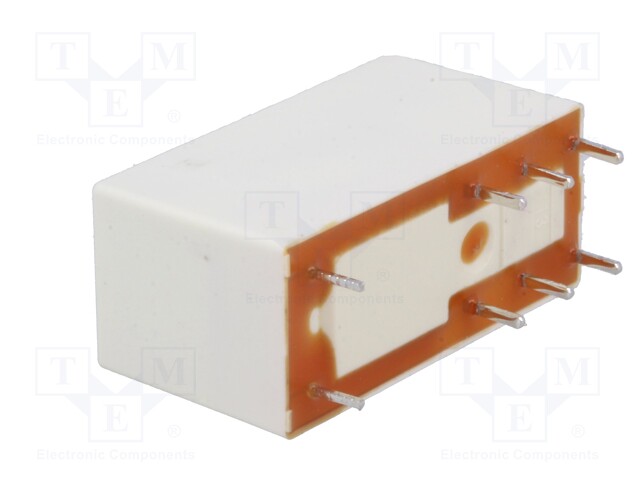

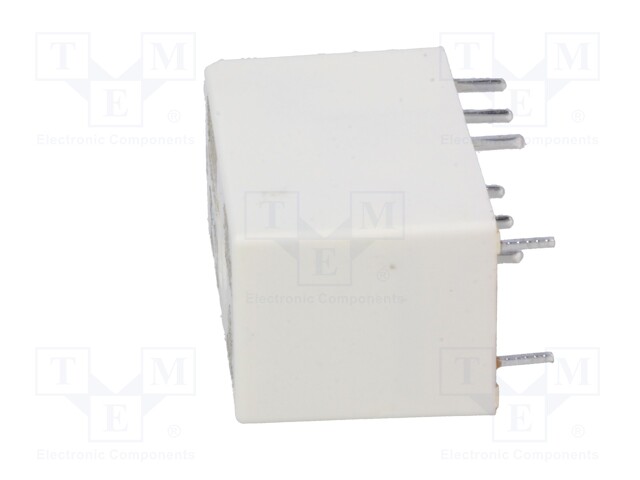

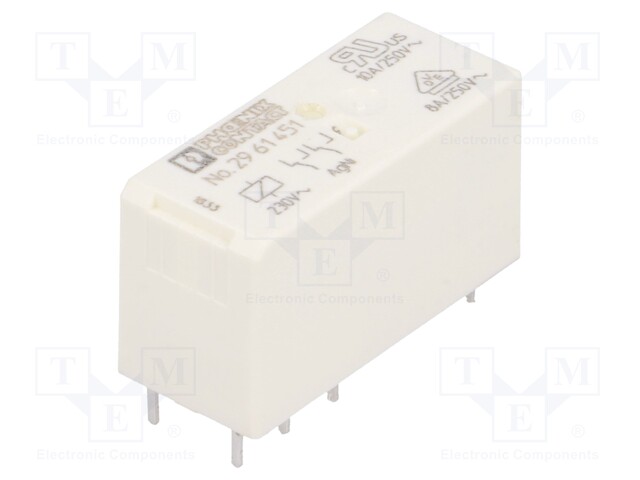

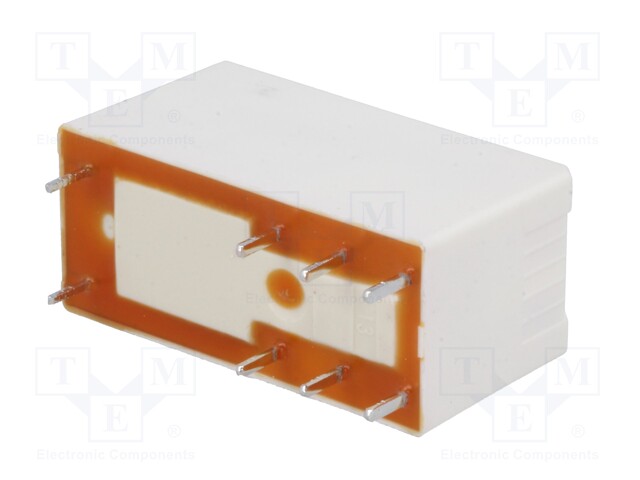

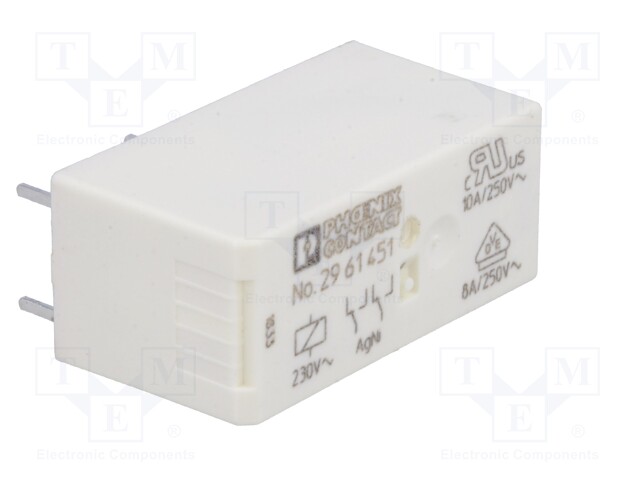

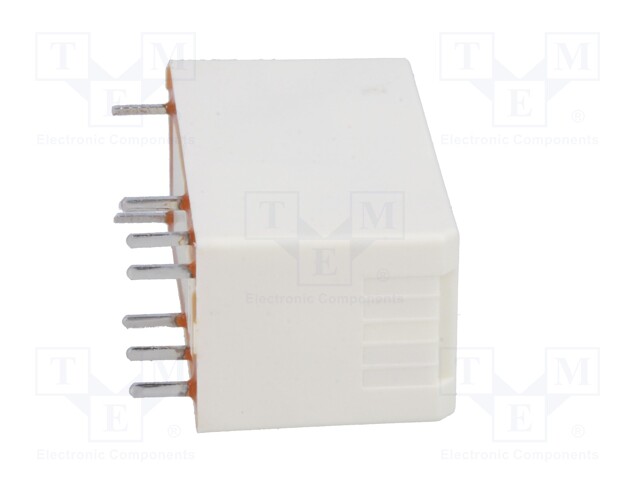

Relay: electromagnetic; DPDT; Ucoil: 230VAC; 8A/250VAC; 2A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 2961451
    Tootja: PHOENIX CONTACT
    Tootja tootekood: 2961451
    • Mounting
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Operate time
    • Coil current

    7,41 € 7,41 € (KM-TA) 7.41 EUR

    7,41 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 230VAC; 8A/250VAC; 2A/24VDC

    Mounting PCB, socket
    Operating temperature -40...85°C
    Leads for soldering
    Contact material AgNi
    Terminal pitch 5mm
    Body dimensions 29x12.7x15.7mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 250V AC, ≤ 250V DC
    Coil resistance 32.5kΩ
    Contacts configuration DPDT
    DC contacts rating @R 2A / 24V DC
    AC contacts rating @R 3A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Operate time 12ms
    Coil current 3mA
