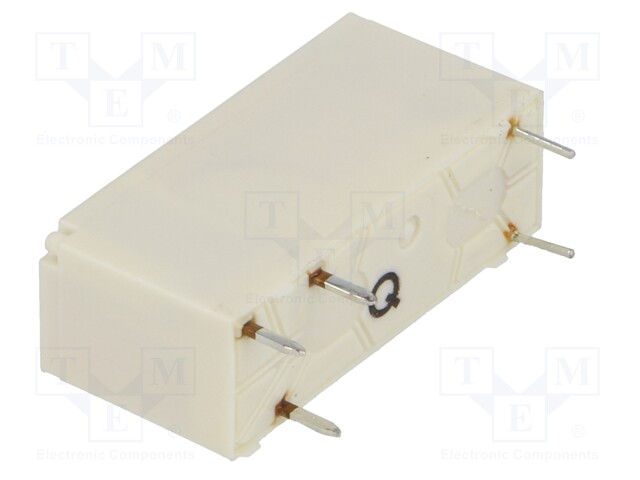

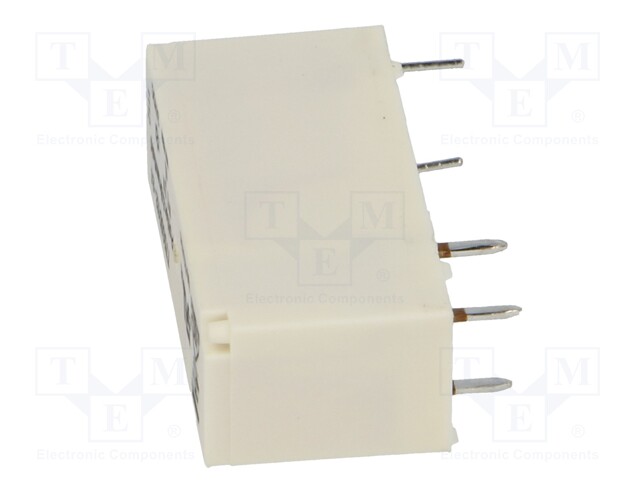

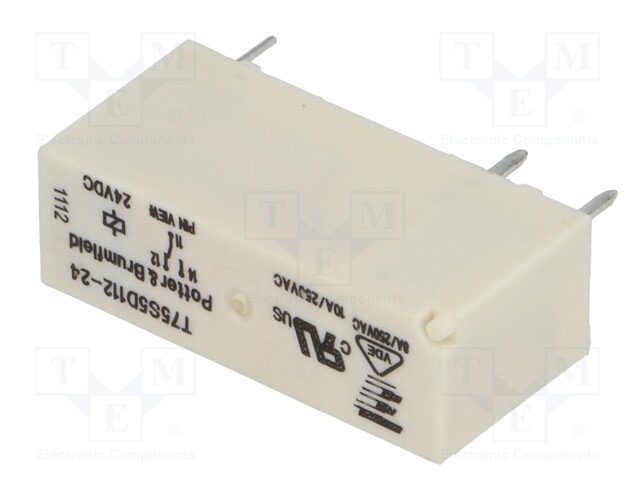

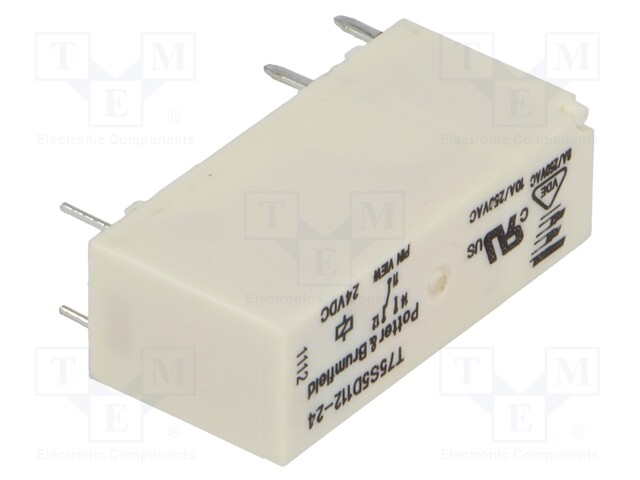

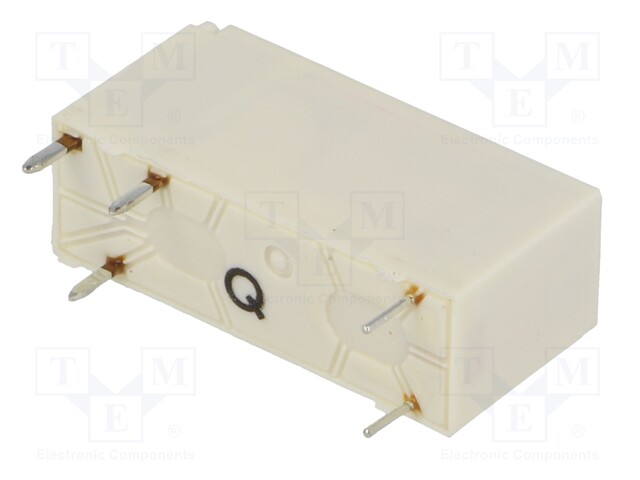

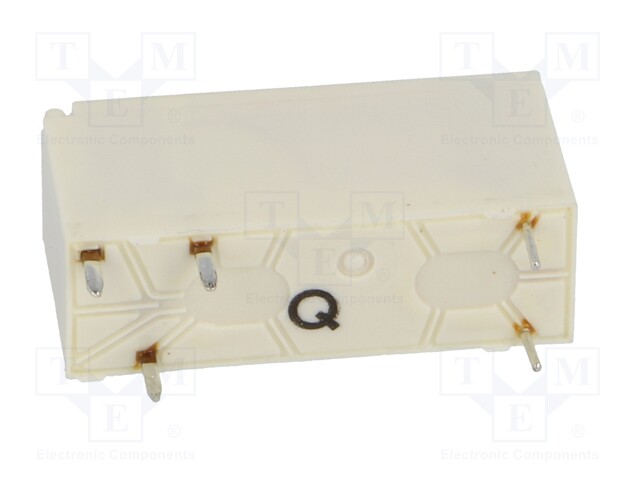

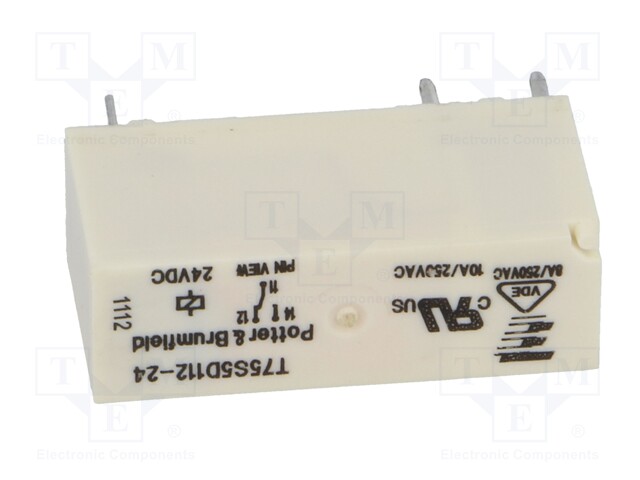

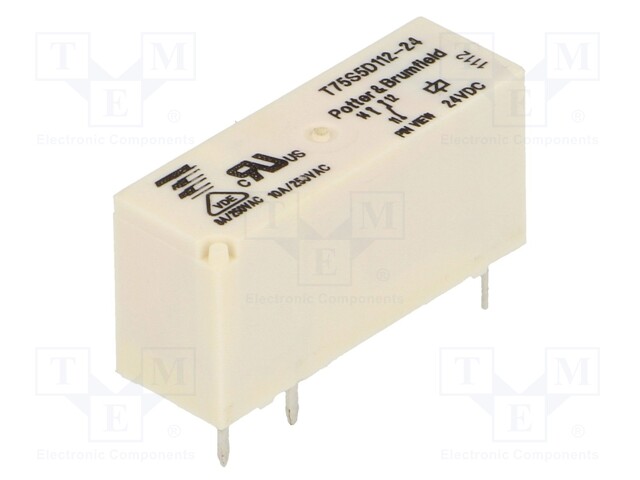

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/240VAC; 8A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 2-1393223-8
    Tootja: TE Connectivity
    Tootja tootekood: 2-1393223-8
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/240VAC; 8A/24VDC

    Mounting THT
    Operating temperature -40...85°C
    Contact material AgCdO

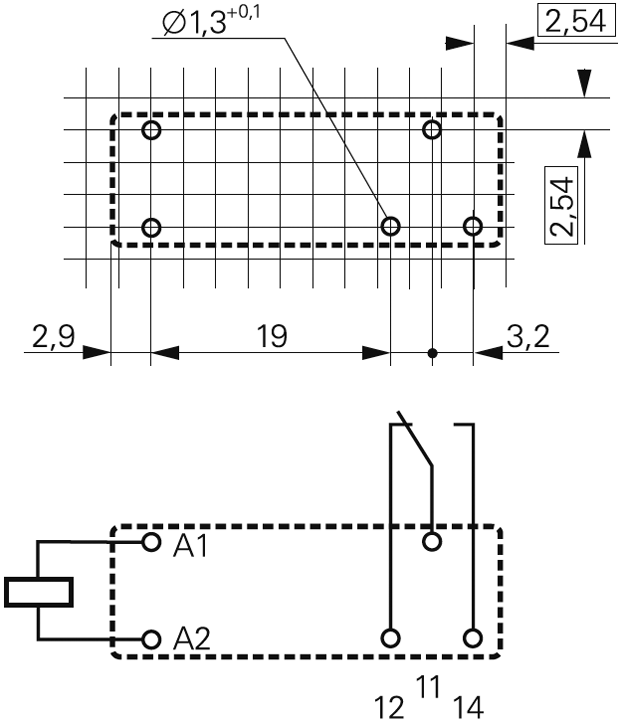

    Terminal pitch 2.54mm
    Height 15mm

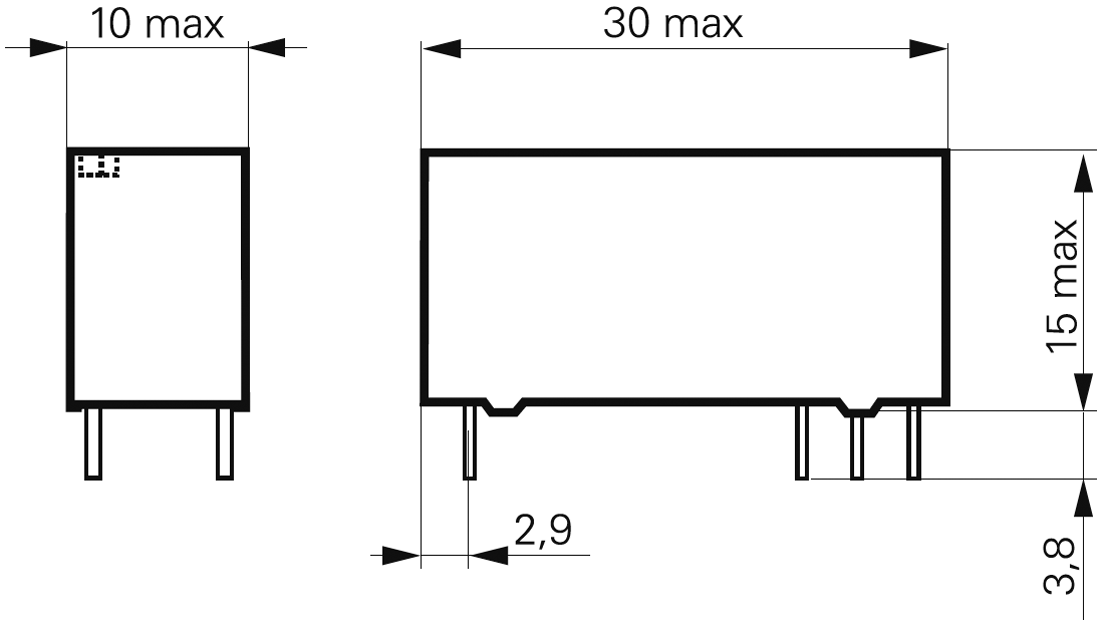

    Body dimensions 28.6x15x10mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 250V AC
    Switching capacity 2kVA
    Coil resistance 2.27kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 8A / 24V DC
    AC contacts rating @R 10A / 240V AC
    Contact current max. 8A
    Type of relay electromagnetic
    Coil voltage min. 16.3V DC
    Coil power consumption 254mW
    Operate time 10ms
    Release time 5ms
    Coil current 10.5mA
