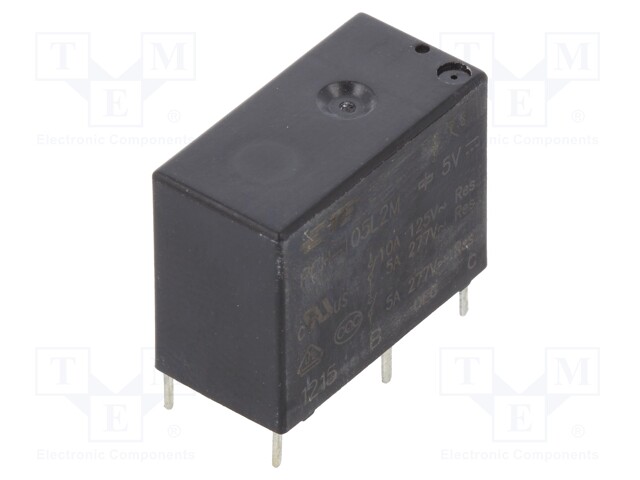

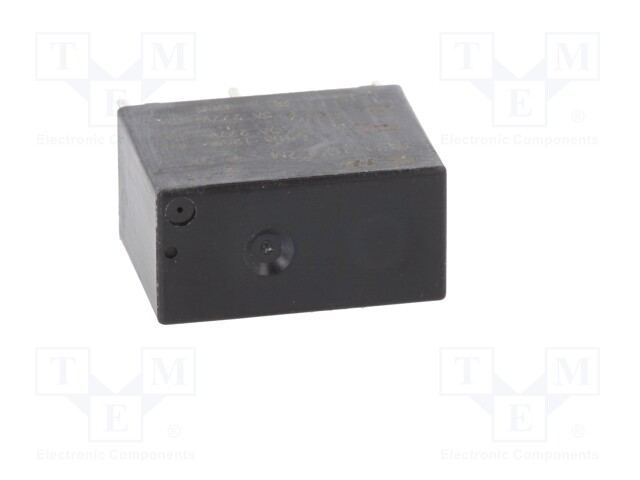

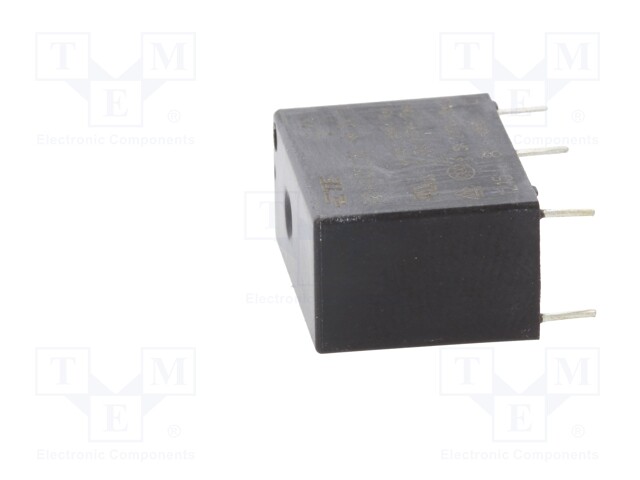

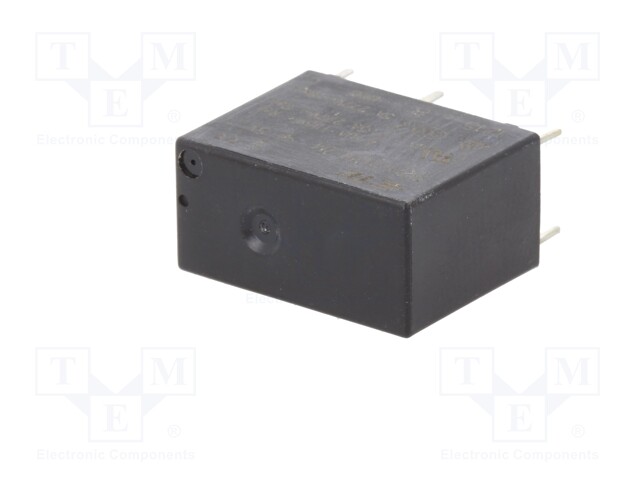

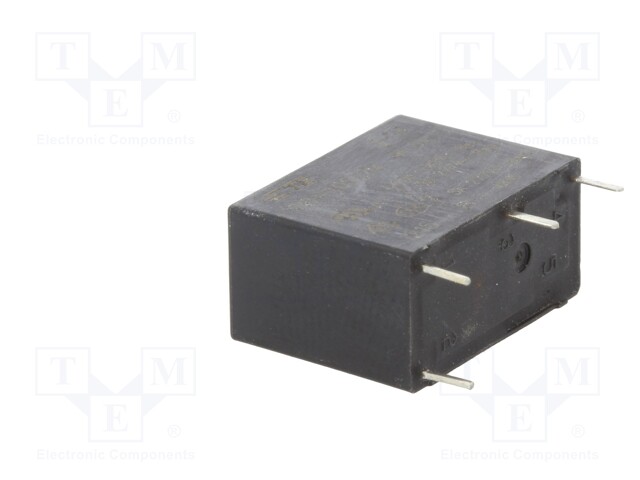

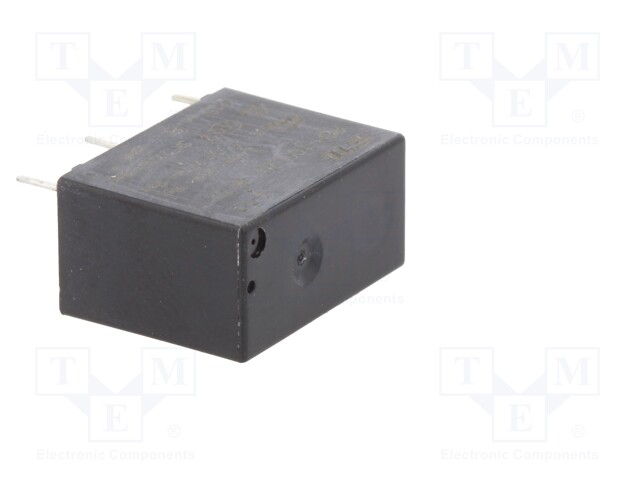

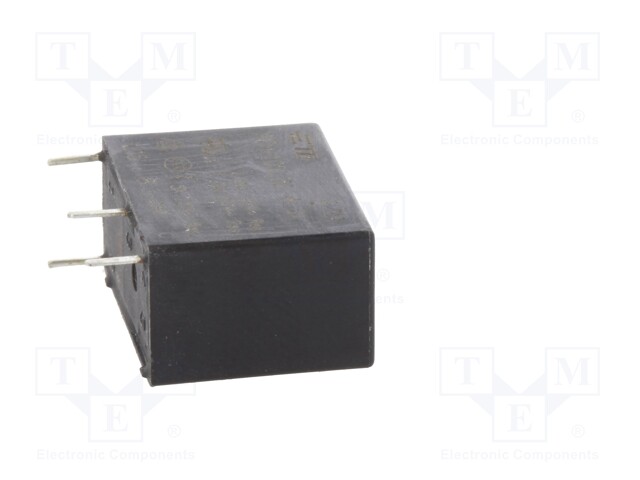

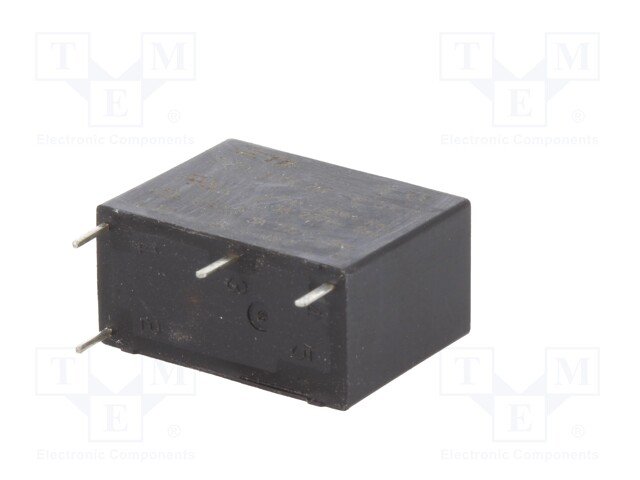

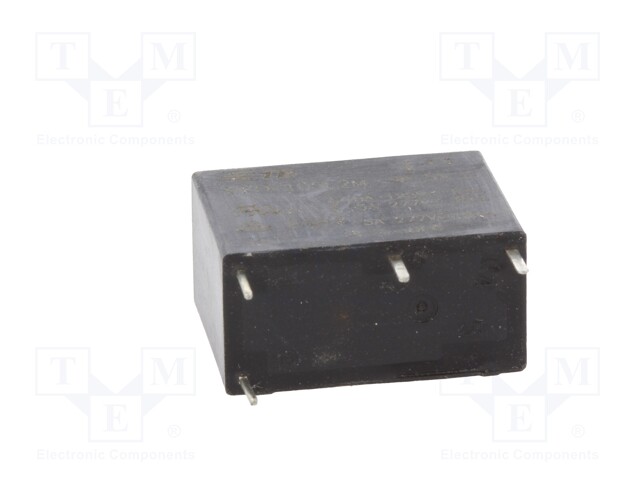

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A/277VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1461352-2
    Tootja: TE Connectivity
    Tootja tootekood: 1461352-2
    • Mounting
    • Operating temperature
    • Series
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    2,84 € 2,84 € (KM-TA) 2.84 EUR

    2,84 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A/277VAC; 5A/30VDC

    Mounting THT
    Operating temperature -40...85°C
    Series PCH
    Contact material AgSnO<sub>2</sub>
    Body dimensions 20x15.2x10mm
    Switched voltage ≤ 30V DC, ≤ 277V AC
    Coil resistance 125Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    AC contacts rating @R 5A / 277V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 3.75V DC
    Coil power consumption 200mW
    Operate time 10ms
    Release time 5ms
