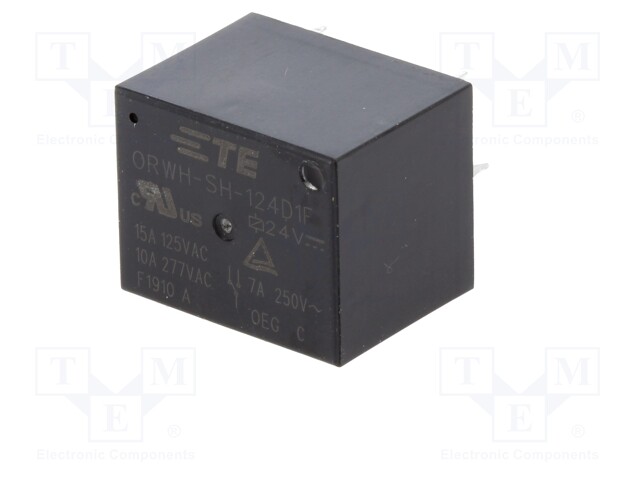

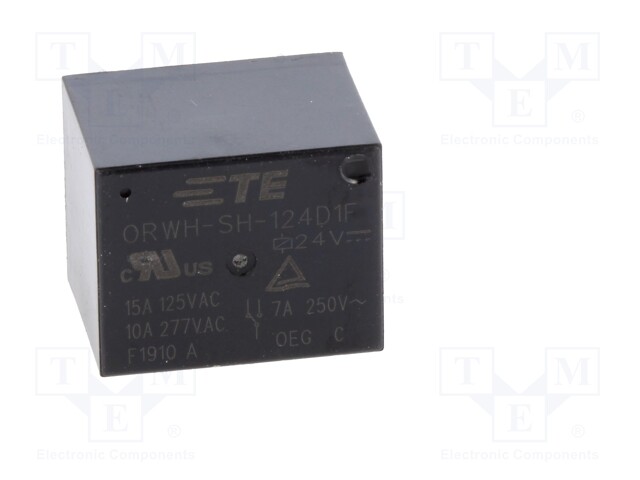

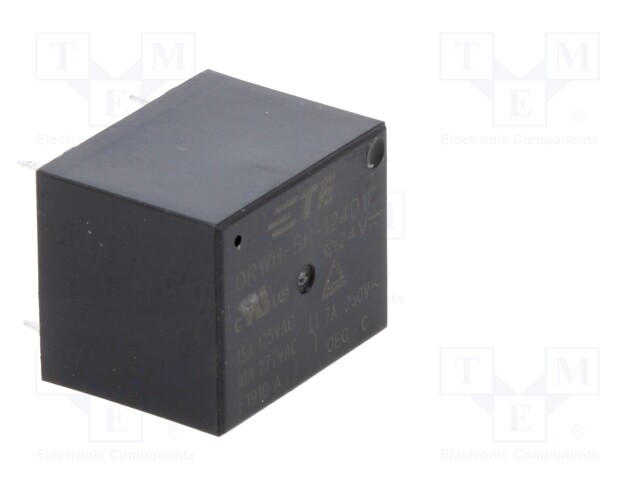

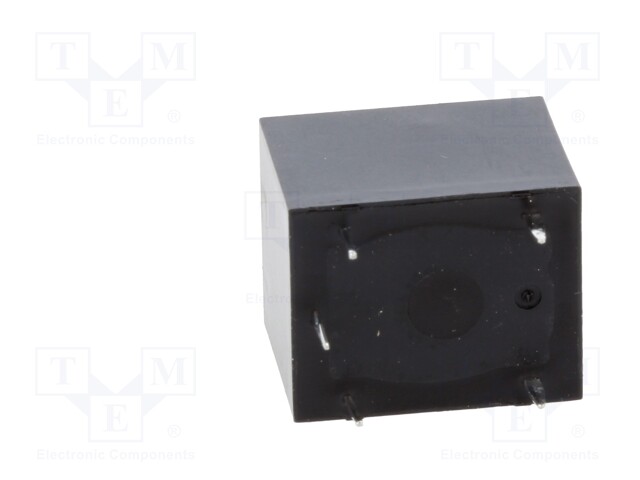

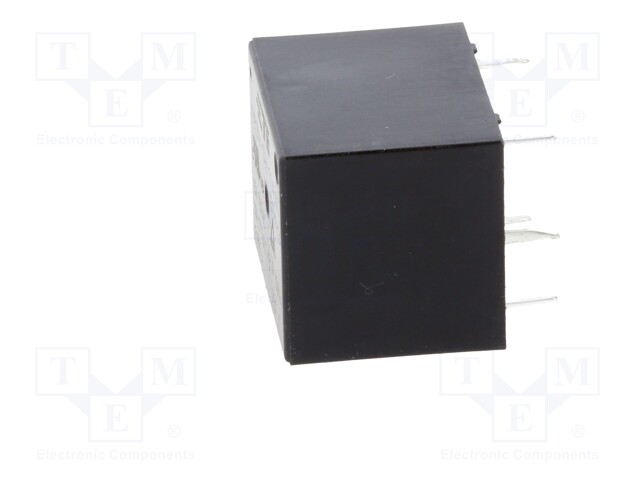

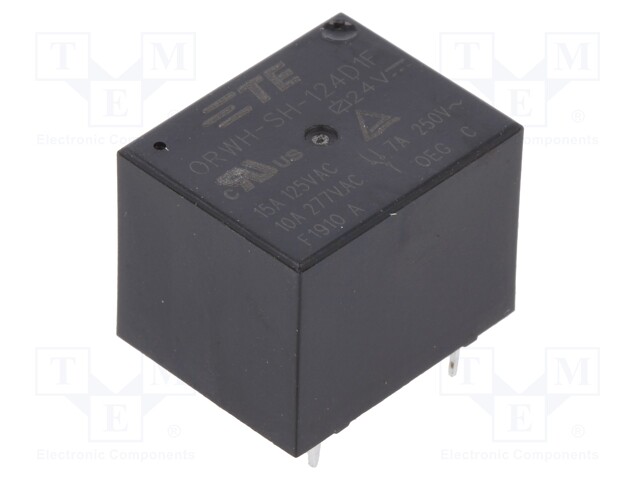

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/277VAC; 10A/28VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1-1721150-5
    Tootja: TE Connectivity
    Tootja tootekood: 1-1721150-5
    • Mounting
    • Operating temperature
    • Contact material
    • Height
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    2,31 € 2,31 € (KM-TA) 2.31 EUR

    2,31 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/277VAC; 10A/28VDC

    Mounting PCB
    Operating temperature -30...70°C
    Contact material AgZnO
    Height 15.8mm
    Body dimensions 19x15.5x15.8mm
    Switched voltage ≤ 28V DC, ≤ 277V AC
    Coil resistance 1.6kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 10A / 28V DC
    AC contacts rating @R 10A / 277V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 360mW
    Operate time 10ms
    Release time 5ms
