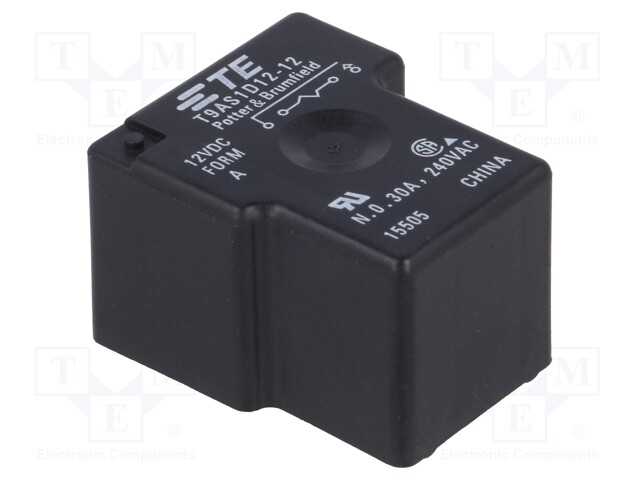

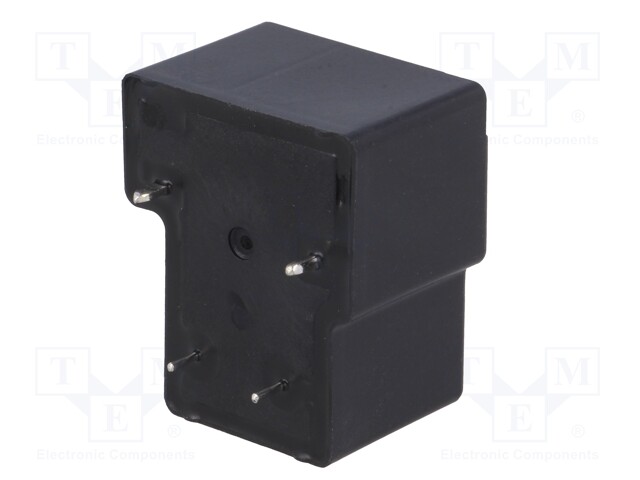

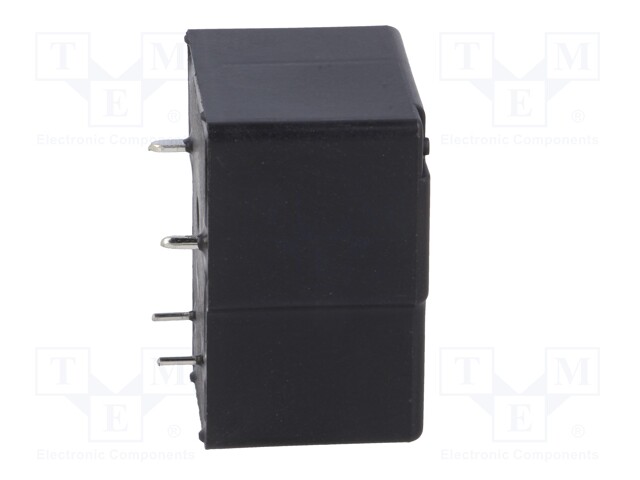

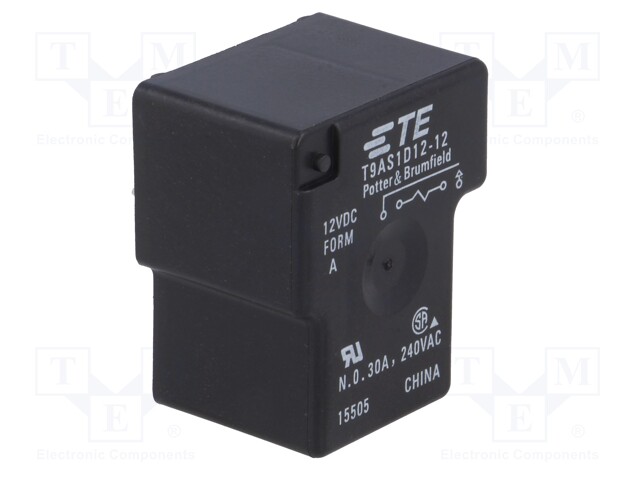

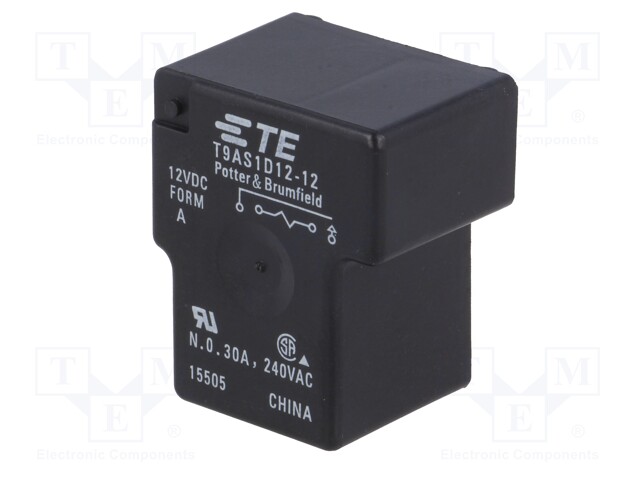

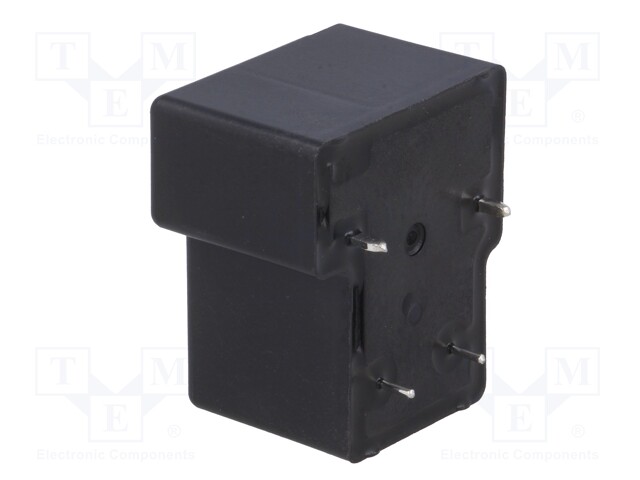

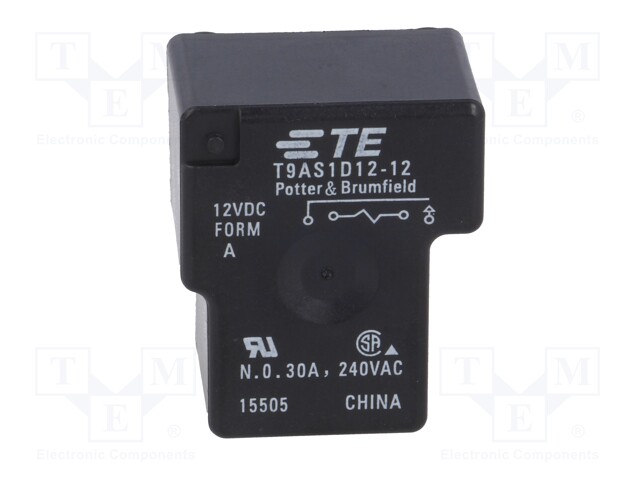

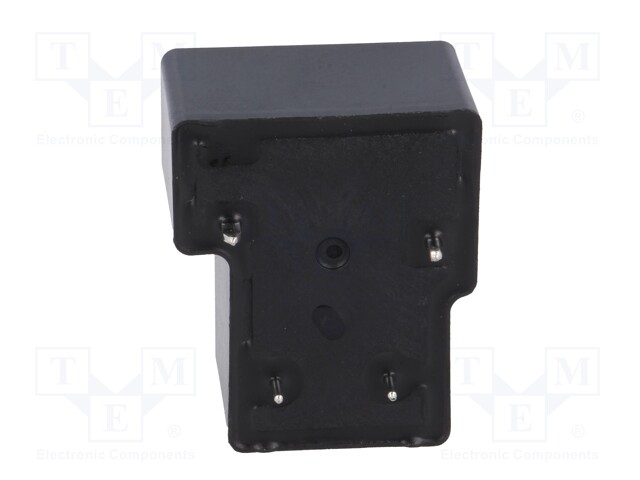

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; Ucoil min: 9VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1-1393210-3
    Tootja: TE Connectivity
    Tootja tootekood: 1-1393210-3
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series

    6,53 € 6,53 € (KM-TA) 6.53 EUR

    6,53 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; Ucoil min: 9VDC

    Mounting PCB
    Operating temperature -55...85°C
    Leads for PCB
    Contact material AgCdO
    Body dimensions 32.5x27.4x27.9mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 28V DC, ≤ 277V AC
    Coil resistance 144Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 10A / 28V DC
    Contact resistance 75mΩ
    AC contacts rating @R 30A / 240V AC
    Contact current max. 30A
    Relay variant power
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 1W
    Relay series T9A
