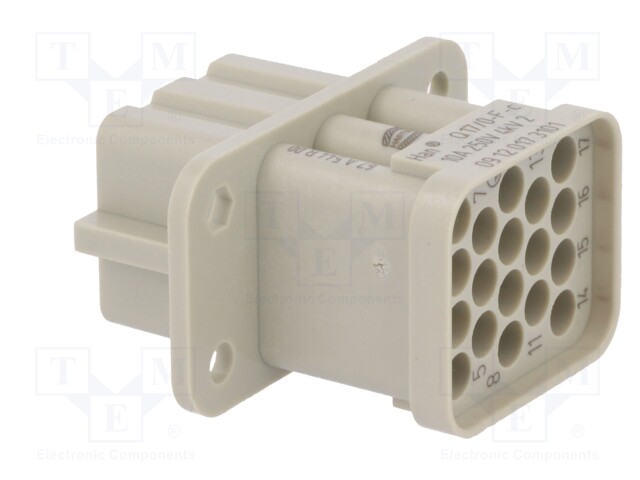

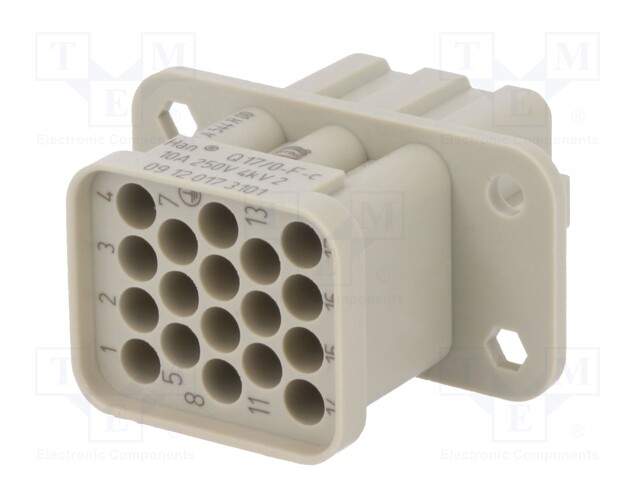

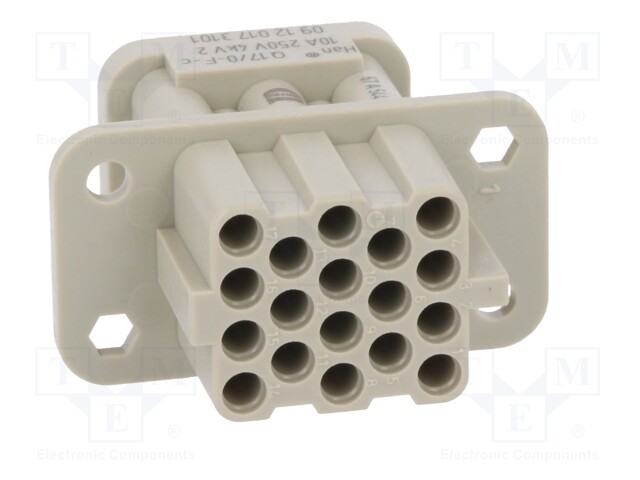

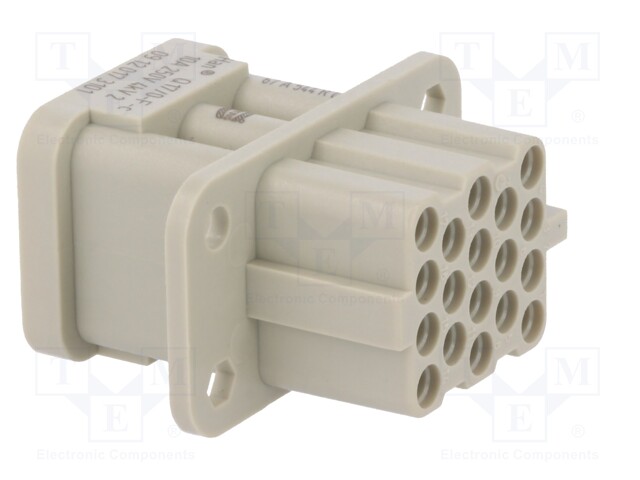

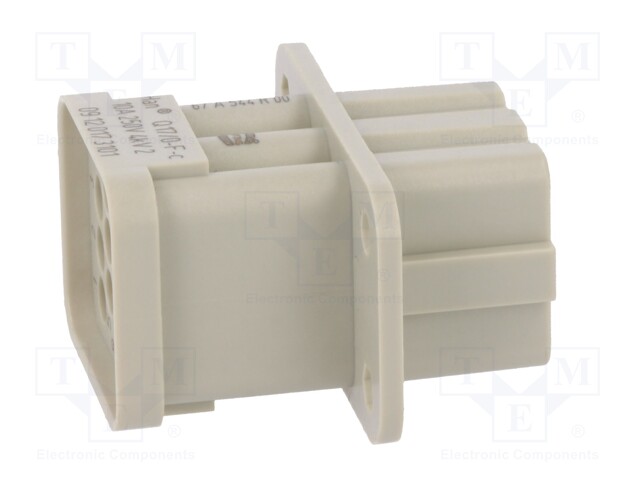

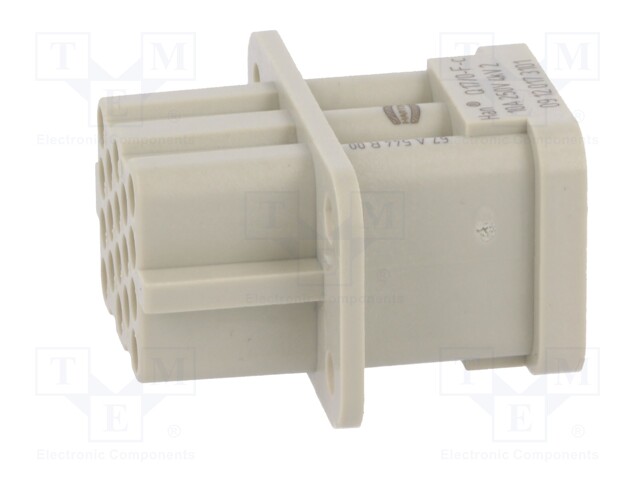

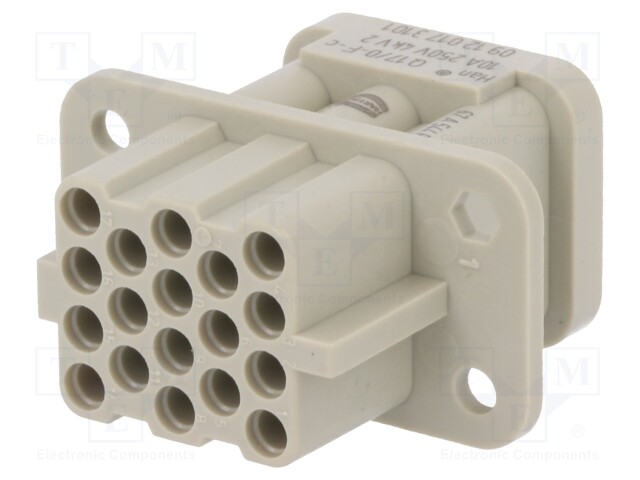

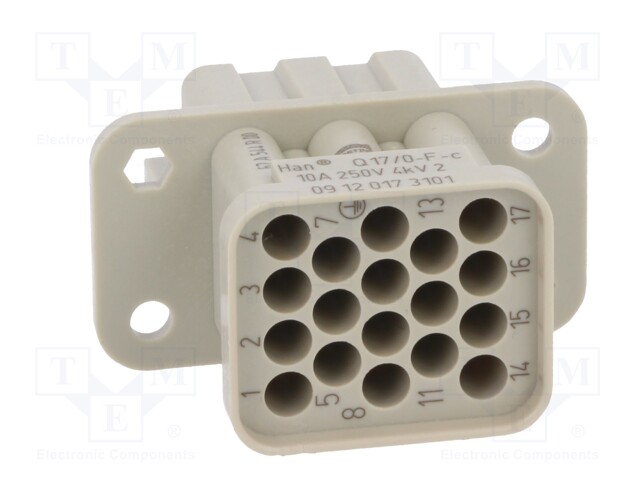

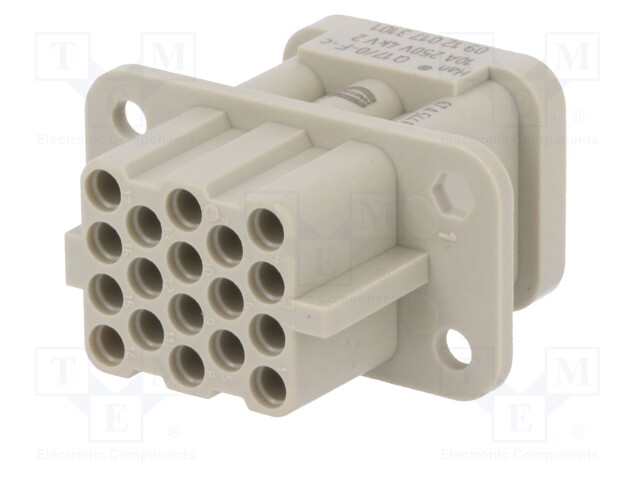

Connector: HDC; female; Han Q; PIN: 17; Compact; crimped
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
09120173101
Tootja: HARTING
Tootja tootekood: 09120173101
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDA959571C5957560C4&compId=09120173101_RYS.PDF?ci_sign=5271b85fd45537f0c871ce6320060eeb693bcaa7
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDA95957A7931A8C0C4&compId=09120173101.PDF?ci_sign=3699685b0ad23026bd9b61357796ea3acdac0429
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDB90F072897C46C0C7&compId=HCONNECTORS.txt?ci_sign=141d3c2cfd0a49571b399f65e27eb8ef24cc7e9e
Spetsifikatsioon tootele Connector: HDC; female; Han Q; PIN: 17; Compact; crimped
| Case | size Han Compact |
| Operating temperature | -40...125°C |
| Electrical mounting | crimped |
| Connector | contact insert |
| Kind of connector | female |
| Type of connector | HDC |
| Number of pins | 18 |
| Flammability rating | UL94V-0 |
| Mechanical durability | 500cycles |
| Current rating | 10A |
| Type of pin configuration | 17+PE |
| Rated voltage | 500V |
| Connector variant | w/o contacts |
| Engineering PN | Han Q 17/0-F-c 10A |
| Insulator material | polycarbonate |
