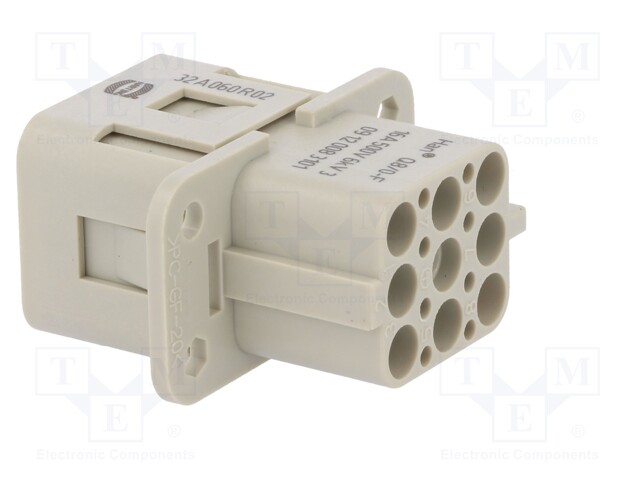

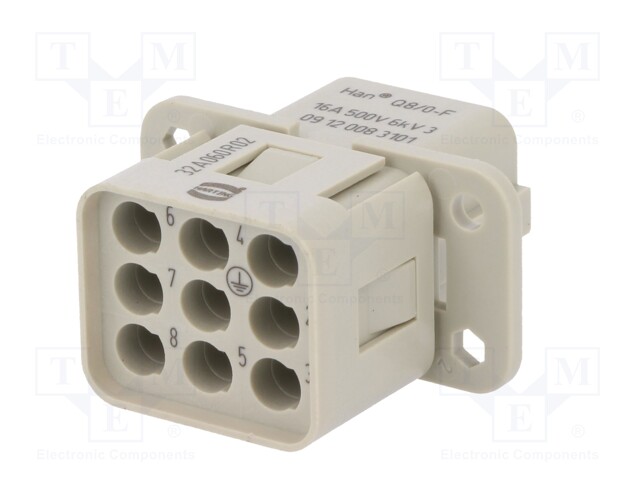

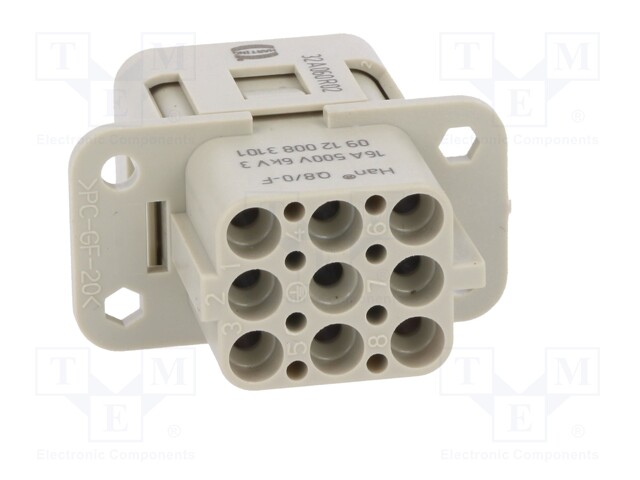

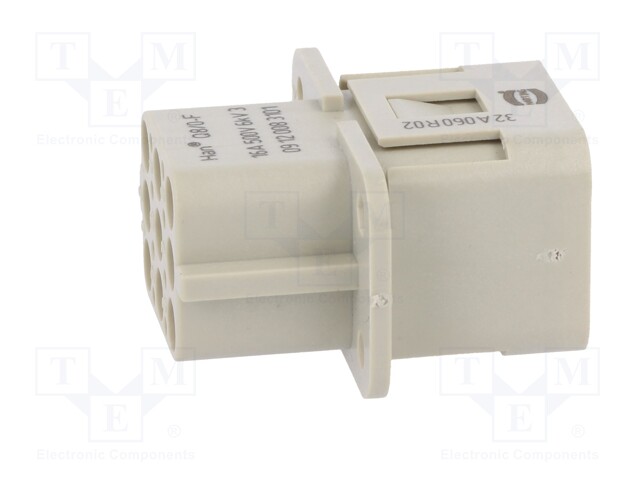

Connector: HDC; female; Han Q; PIN: 8; Compact; crimped
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
09120083101
Tootja: HARTING
Tootja tootekood: 09120083101
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDA9595719B058580C4&compId=09120083101_RYS.PDF?ci_sign=7bf27a4b402c83da71b5990b09b3fb123dd165a5
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDA959579B9CEB7A0C4&compId=09120083101.PDF?ci_sign=5eb8de5702d598636e363c1f6f738d554425d5e3
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDB90F072897C46C0C7&compId=HCONNECTORS.txt?ci_sign=141d3c2cfd0a49571b399f65e27eb8ef24cc7e9e
Spetsifikatsioon tootele Connector: HDC; female; Han Q; PIN: 8; Compact; crimped
| Case | size Han Compact |
| Operating temperature | -40...125°C |
| Electrical mounting | crimped |
| Connector | contact insert |
| Kind of connector | female |
| Type of connector | HDC |
| Number of pins | 9 |
| Flammability rating | UL94V-0 |
| Mechanical durability | 500cycles |
| Current rating | 16A |
| Type of pin configuration | 8+PE |
| Rated voltage | 500V |
| Connector variant | w/o contacts |
| Insulator material | polycarbonate |
