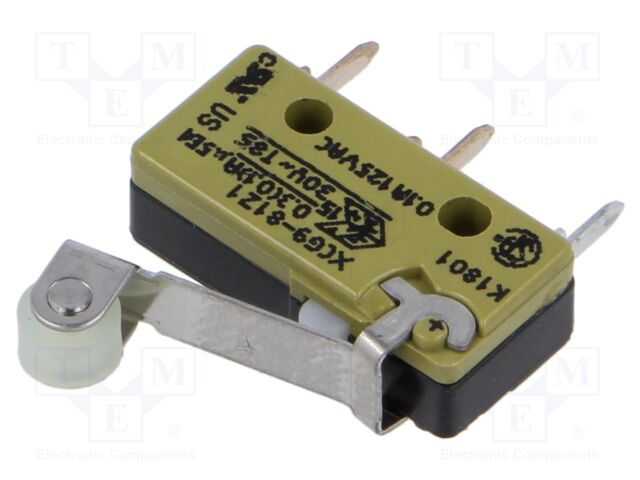

Microswitch SNAP ACTION; 6A/250VAC; with lever (with roller)

    Multiples: 1.0
    Minimum quantity: 5.0
    Product code: XCG9-81-S1Z1
    Manufacturer: SAIA-BURGESS
    Manufacturer code: XCG9-81-S1Z1
    • Operating temperature
    • IP rating
    • Type of switch
    • Switches features
    • Contact plating
    • Number of positions
    • Leads
    • Terminal pitch
    • Body dimensions
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Lever length

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Microswitch SNAP ACTION; 6A/250VAC; with lever (with roller)

    Operating temperature -40...85°C
    IP rating IP40
    Type of switch microswitch SNAP ACTION
    Switches features with lever (with roller)
    Contact plating gold-plated
    Number of positions 2
    Leads for PCB
    Terminal pitch 7.6mm
    Body dimensions 19.9x6.4x9.5mm
    Contacts configuration SPDT
    AC contacts rating @R 6A / 250V AC
    Switching method ON-(ON)
    Stable positions number 1
    Operating Force 1.7N
    Lever length 16mm
