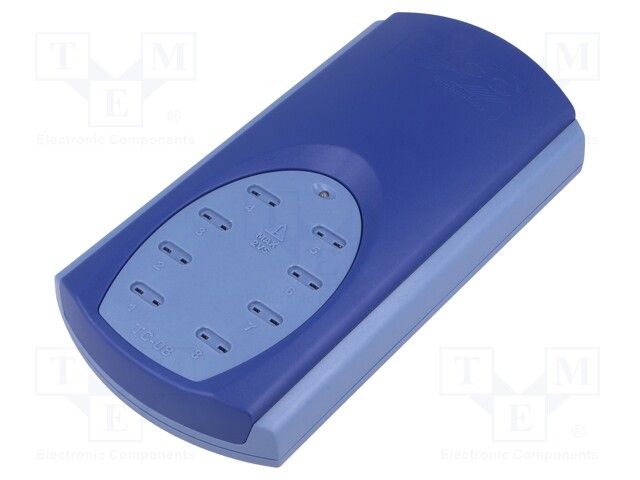

Logger: temperature; Temp: -270÷1820°C; Channels: 8; Out: USB; 20bit
Multiples:
1.0
Minimum quantity:
1.0
Product code:
USB TC-08
Manufacturer: Pico Technology
Manufacturer code: USB TC-08
Product downloads
- 2630545.pdf
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDEABC2AD97901E80D6&compId=MEASURING.txt?ci_sign=d0ccb06ee923cc677e69012bfb5fb7bd92f37df8
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3ABEB6FA5EB1E81DC&compId=INB-SRO-EN.pdf?ci_sign=bbdaaf5c55aaaadc96135efb55439bcedc402292
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE890FA7BF3E8A673D3&compId=TC-08-M.pdf?ci_sign=116cc36bb4c88d17238f2e049aa5ca2caabe972b
Specification for Logger: temperature; Temp: -270÷1820°C; Channels: 8; Out: USB; 20bit
| Operating temperature | 0...50°C |
| Number of channels | 8 |
| Protection | anti-overvoltage |
| Interface | USB 1.1, USB 2.0 |
| Dimensions | 201x104x34mm |
| Temperature measuring range | -270...1820°C |
| Kind of output connector | USB |
| Operating system | Linux, Mac OS, Windows 10, Windows 7, Windows 8 |
| Producer guarantee (months) | 60 |
| Power supply | from USB port |
| Kind of temperature sensor | thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T |
| Optional equipment | PR121 |
| Measuring instrument features | cold junction compensation, math channels, possibility to connect up to 20 data loggers to one PC, programmable alarm thresholds |
| Standard equipment | USB cable |
| Type of meter | data logger |
| Measurement | 4-20mA current loop (with adapter), DC voltage (with adapter), temperature |
| Vertical resolution | 20bit |
