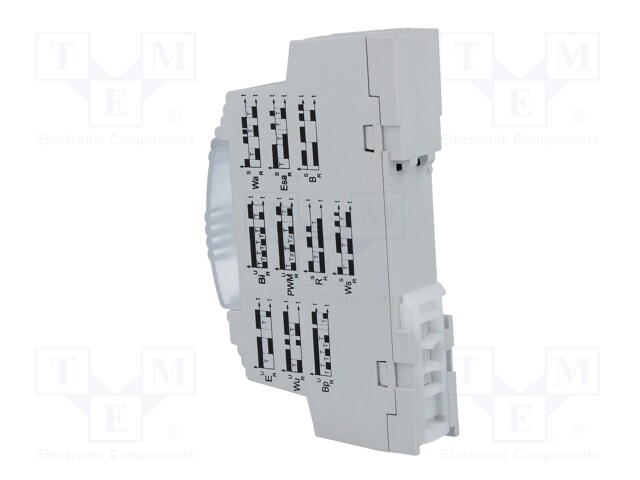

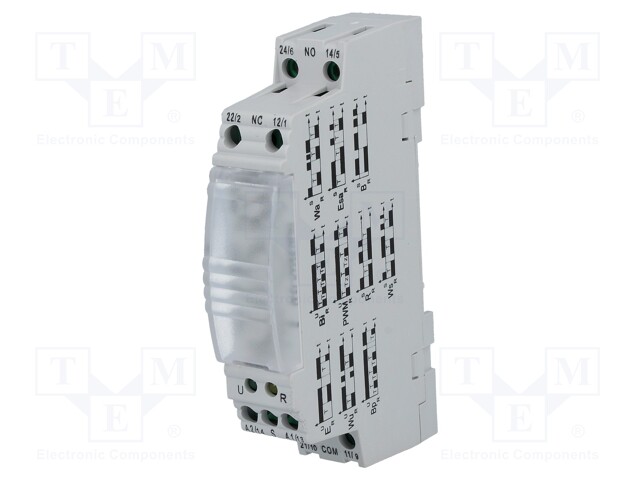

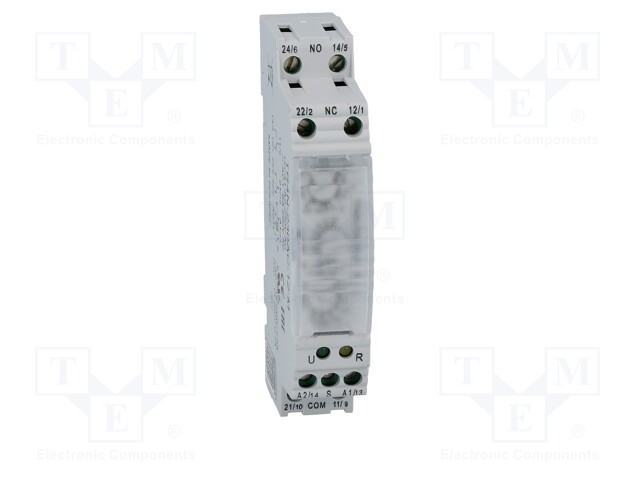

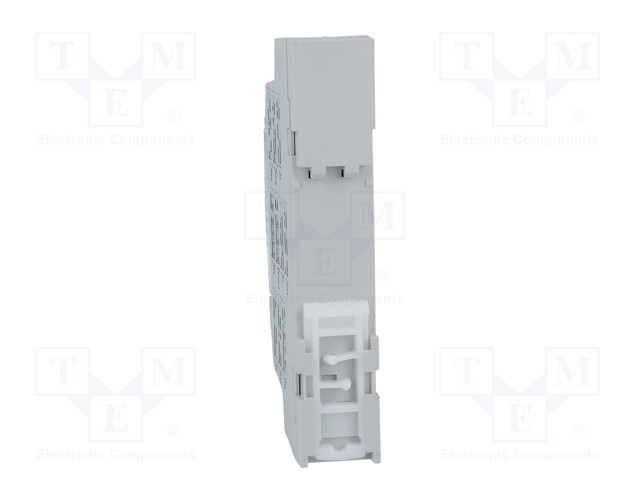

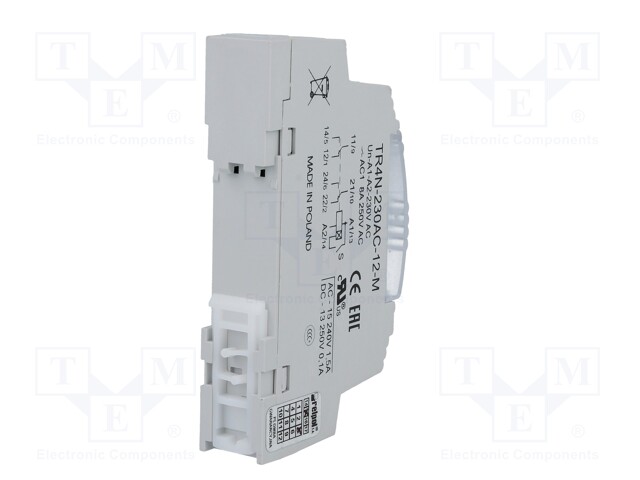

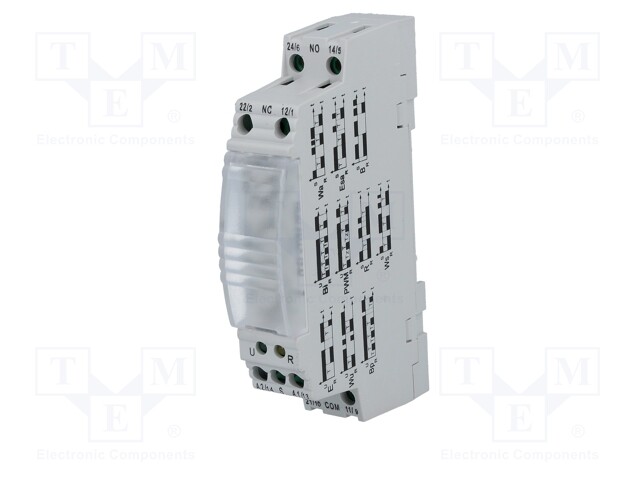

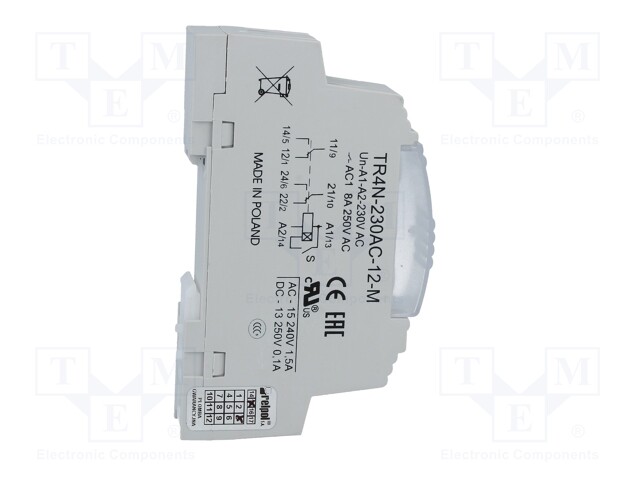

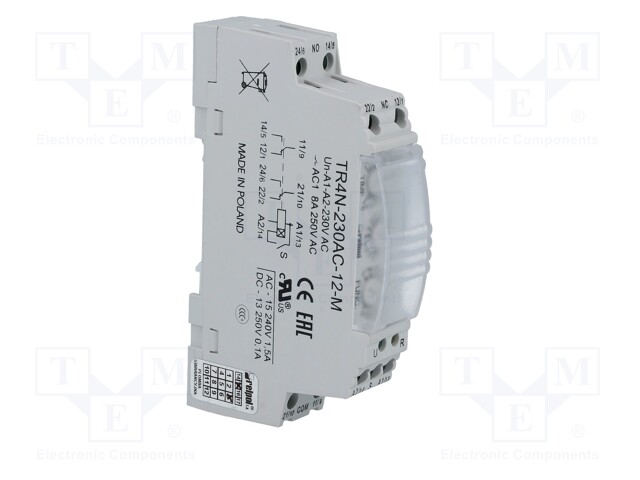

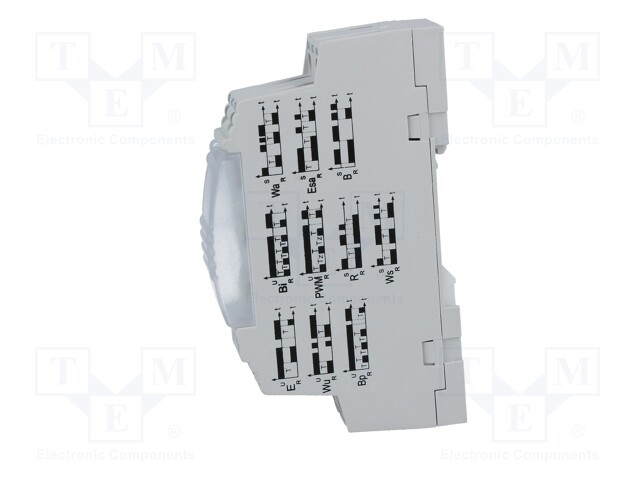

Timer; 0,1s÷10days; DPDT; 250VAC/8A; 230VAC; DIN; -20÷55°C; PIN: 9
Multiples:
1.0
Minimum quantity:
1.0
Product code:
TR4N-230AC-12-M
Manufacturer: RELPOL
Manufacturer code: TR4N-230AC-12-M
Product downloads
Specification for Timer; 0,1s÷10days; DPDT; 250VAC/8A; 230VAC; DIN; -20÷55°C; PIN: 9
| Mounting | for DIN rail mounting |
| Supply voltage | 230V AC |
| Operating temperature | -20...55°C |
| IP rating | IP20 |
| Number of pins | 9 |
| Type of module | timer |
| Body dimensions | 17.6x99x55mm |
| Kind of output | DPDT |
| Indication | LED |
| Electrical connection | screw terminals |
| Counting range | 0,1s...10days |
| Counter operation modes | cyclical operation, delayed switching off, delayed switching on, ON and OFF delay, ON for the set interval, PWM, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first, with the control contact S |
| number of operation modes | 10 |
| OEM number | 856584 |
| The additional control inputs | START |
