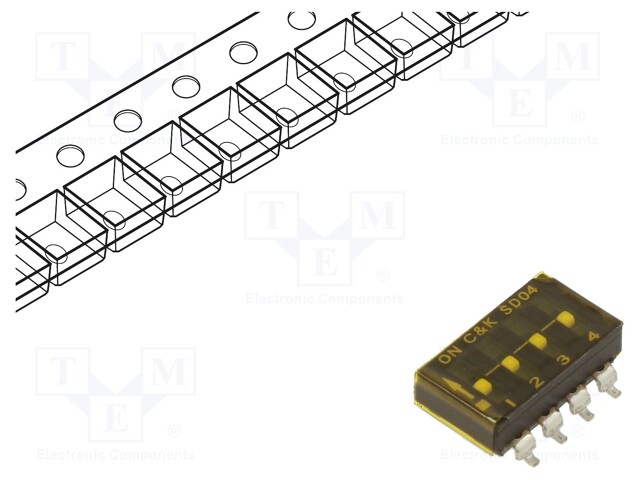

Switch: DIP-SWITCH; Poles number: 4; OFF-ON; 0.1A/25VDC; Pos: 2

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SD04H0SBR
    Manufacturer: C&K
    Manufacturer code: SD04H0SBR
    • Mounting
    • Operating temperature
    • Type of switch
    • Kind of package
    • Kind of package
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Quantity in package
    • Number of terminals
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Poles number
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Button shape

    4.19 € 4.19 € (wo VAT) 4.19 EUR

    4.19 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: DIP-SWITCH; Poles number: 4; OFF-ON; 0.1A/25VDC; Pos: 2

    Mounting SMT
    Operating temperature -40...85°C
    Type of switch DIP-SWITCH
    Kind of package reel, tape
    Contact plating gold-plated
    Number of positions 2
    Leads for PCB
    Contact material beryllium copper
    Max. contact resistance: 50mΩ
    Terminal pitch 2.54mm
    Body dimensions 11.63x6.68x4.06mm
    Mechanical durability 2000cycles
    Quantity in package 1000pcs.
    Number of terminals 8
    Illumination none
    Min. insulation resistance 1GΩ
    Electrical life 2000cycles
    Poles number 4
    Contacts configuration SPST-NO
    DC contacts rating @R 0.1A / 25V DC
    Switching method OFF-ON
    Stable positions number 2
    Button shape rectangular
