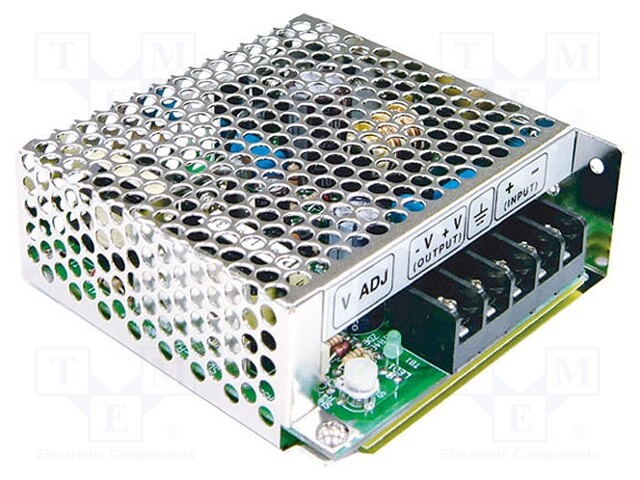

Converter: DC/DC; 25.2W; Uin: 36÷72V; Uout: 12VDC; Iout: 2.1A; 380g
Multiples:
1.0
Minimum quantity:
1.0
Product code:
SD-25C-12
Manufacturer: MEAN WELL
Manufacturer code: SD-25C-12
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69AF1B361775DCFA8&compId=INB-MN-DC-DC-EN.pdf?ci_sign=b4d84af0c4556a971f457942e6c17ea3df1f592e
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69E96C65EA8314FA8&compId=Short_Form_dd.pdf?ci_sign=9e79bc9dc6e3b250477a2cfd10198e3258f594dc
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA390A2BDE3BA60C7&compId=Mean_Well_Industrial-Catalog.pdf?ci_sign=e5a3bf0d98e6bb6b792c315b1e2cf501830c330c
- pVersion=0046&contRep=ZT&docId=E1C05851E5D630F1A6F5005056AB5A8F&compId=sd-25_series_dc-dc_converters.pdf?ci_sign=96e15becdb81ea01a488c2cc510edd99617cdeb3
Specification for Converter: DC/DC; 25.2W; Uin: 36÷72V; Uout: 12VDC; Iout: 2.1A; 380g
| Output current | 2.1A |
| Mounting | for building in |
| Power | 25.2W |
| Operating temperature | -10...60°C |
| Protection | anti-overload, anti-overvoltage, short circuit protection |

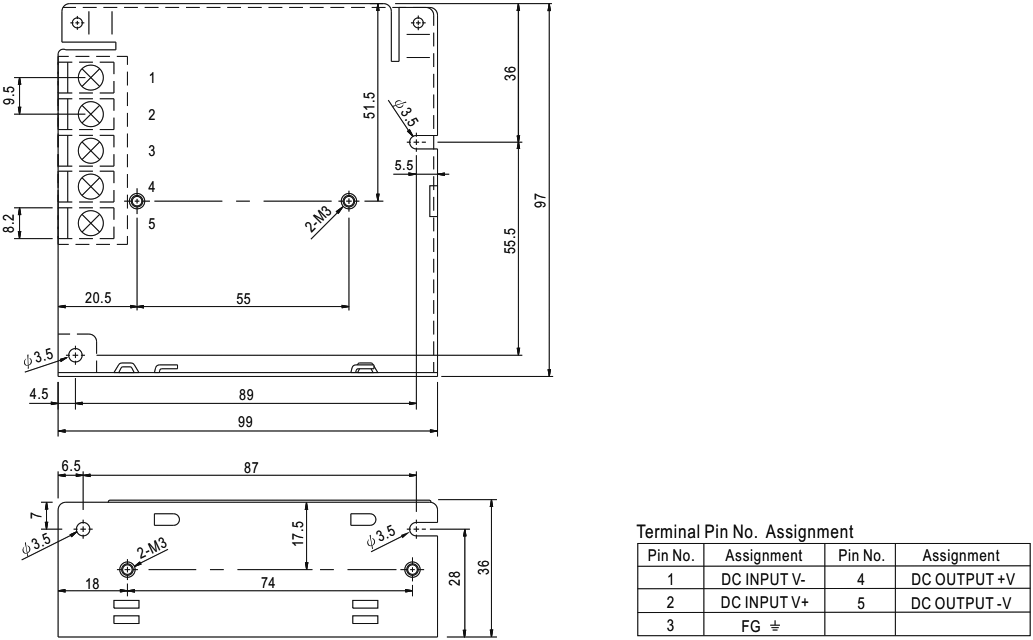

| Body dimensions | 99x97x36mm |
| Output voltage | 12V DC |
| Insulation voltage | 2kV |
| Efficiency | 78% |
| Number of outputs | 1 |
| Kind of case | 905 |
