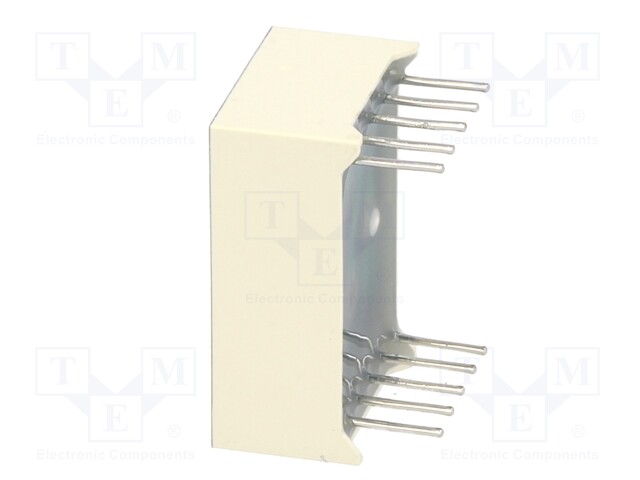

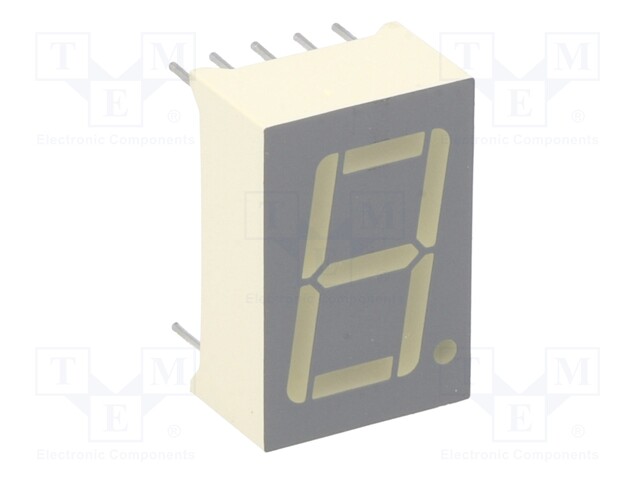

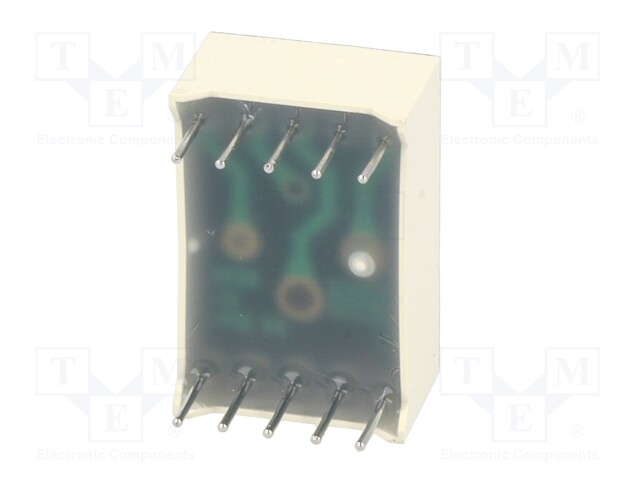

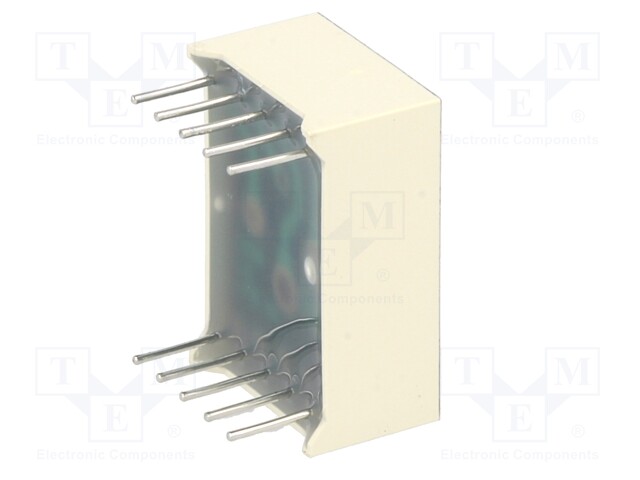

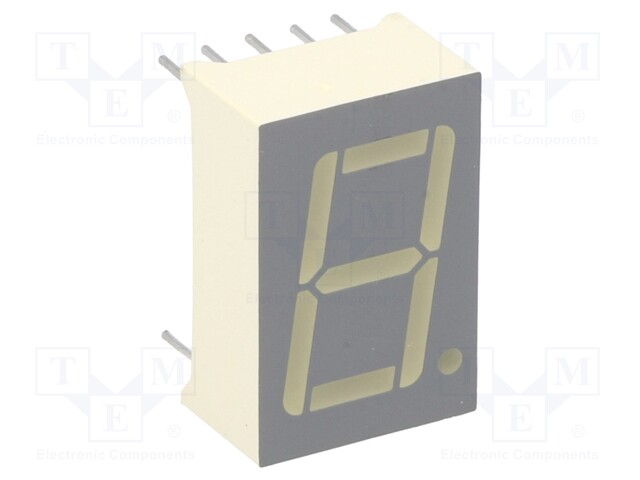

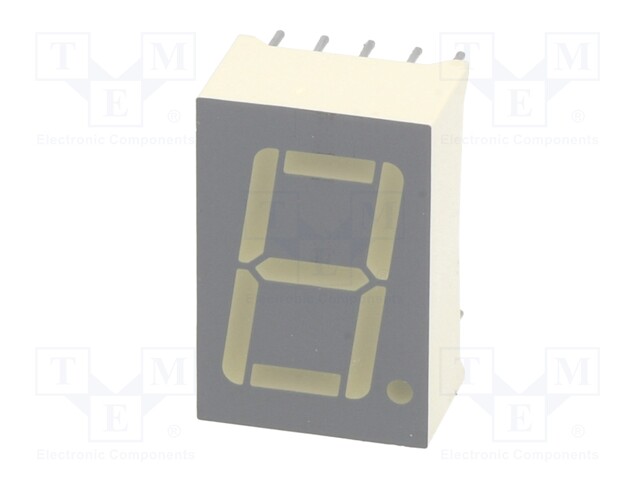

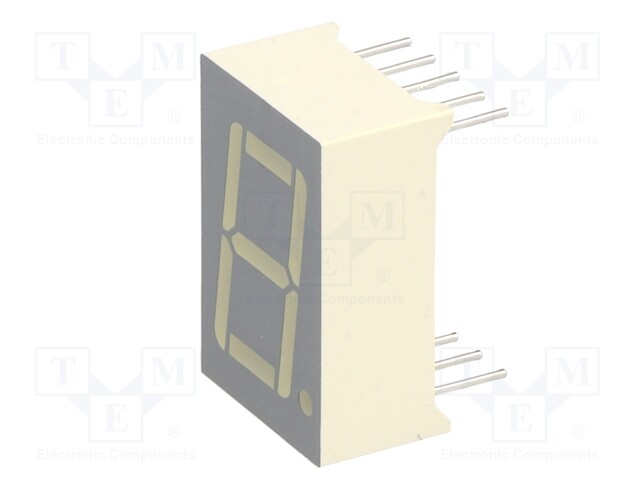

Display: LED; 7-segment; 14.22mm; 0.56"; No.char: 1; green; anode
Multiples:
1.0
Minimum quantity:
1.0
Product code:
SA56-11LGWA
Manufacturer: KINGBRIGHT ELECTRONIC
Manufacturer code: SA56-11LGWA
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE58DEC979909F56469&compId=APPLICATION%20NOTES%20(DISPLAY).pdf?ci_sign=a271ff8b5e8cfd5d816e2dfb76473e17b4a7e478
- pVersion=0046&contRep=ZT&docId=005056AB82531ED998880B4F0DC3B820&compId=KINGBRIGHT_TECH_NOTES.pdf?ci_sign=488380cf3450ddda868e2877d7bb774bb390246c
- pVersion=0046&contRep=ZT&docId=E1C0583FABE489F1A6F5005056AB5A8F&compId=SA56-11Lxxx.pdf?ci_sign=64943102b785fee2e4dc55ad6be235dc06459ebb
Specification for Display: LED; 7-segment; 14.22mm; 0.56"; No.char: 1; green; anode
| Mounting | THT |
| Colour | green |
| Row pitch | 15.24mm |
| Terminal pitch | 2.54mm |
| Dimensions | 19.05x12.7mm |
| Common electrode | anode |
| Kind of display | 7-segment |
| Number of characters | 1 |
| Luminosity | 1.04...2.5mcd |
| Type of display | LED |
| Digit height | 14.22mm |
| Wavelength | 565nm |
| Digit height " | 0.56" |
