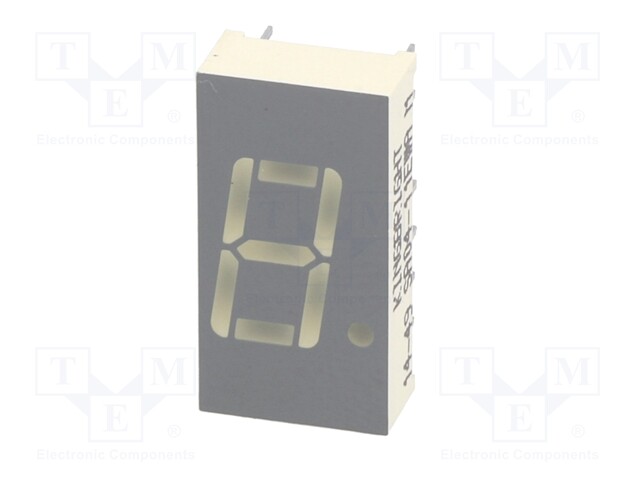

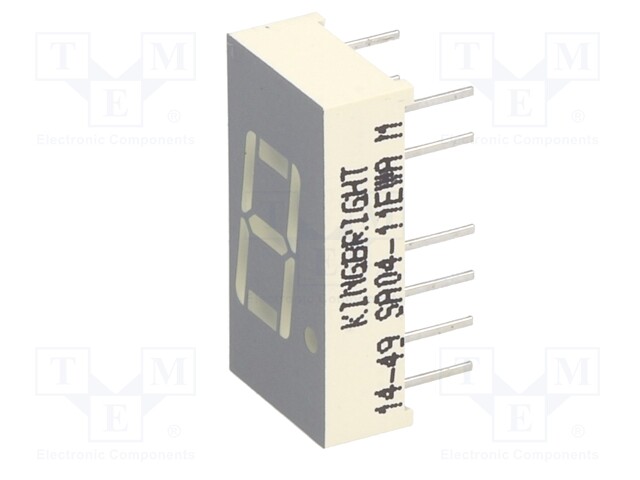

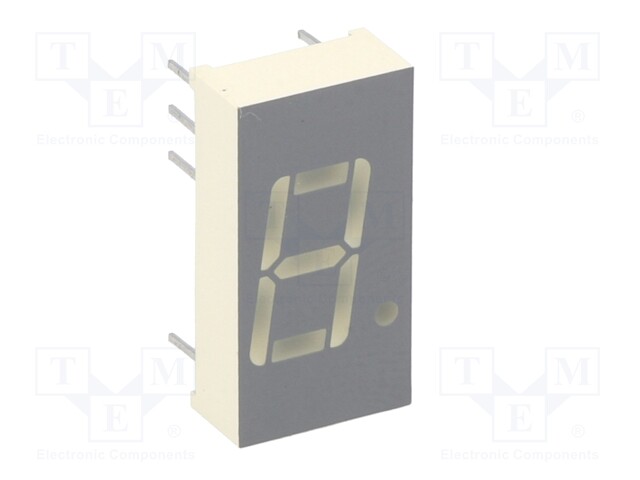

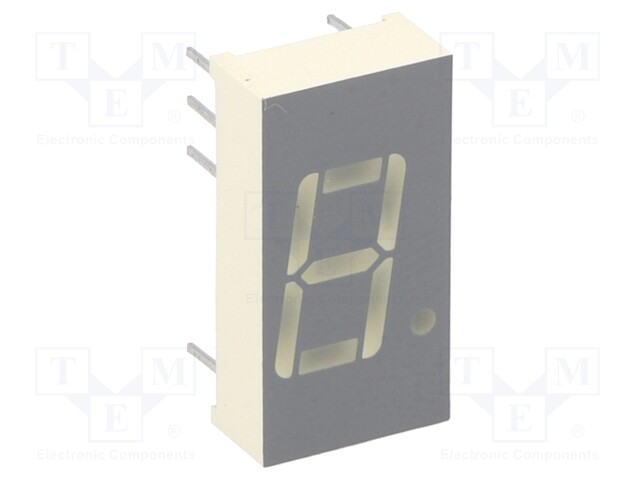

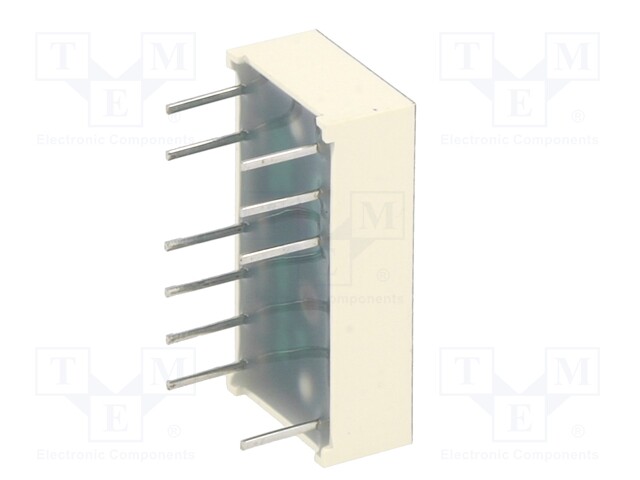

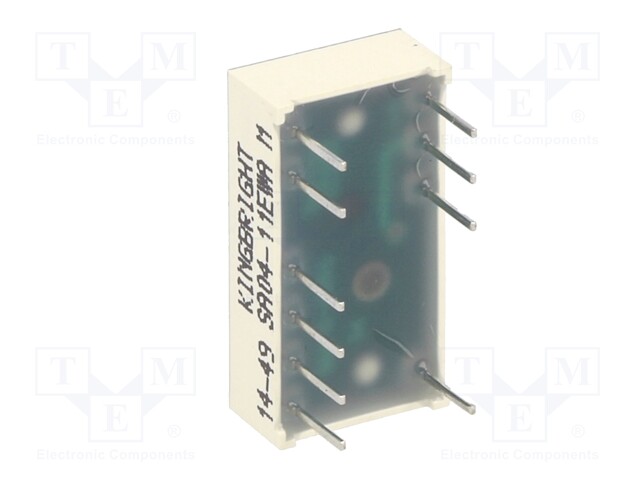

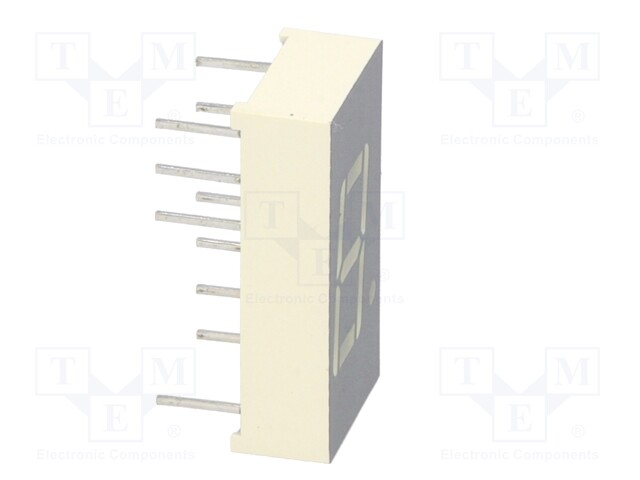

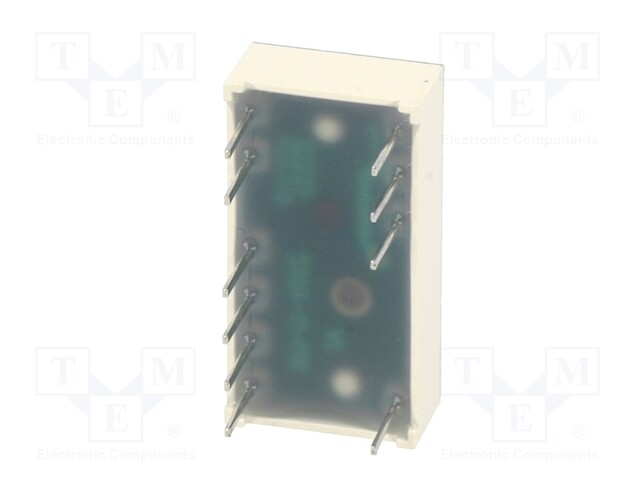

Display: LED; 7-segment; 10.16mm; 0.4"; No.char: 1; red; 3÷8mcd
Multiples:
1.0
Minimum quantity:
1.0
Product code:
SA04-11EWA
Manufacturer: KINGBRIGHT ELECTRONIC
Manufacturer code: SA04-11EWA
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE58DEC979909F56469&compId=APPLICATION%20NOTES%20(DISPLAY).pdf?ci_sign=a271ff8b5e8cfd5d816e2dfb76473e17b4a7e478
- pVersion=0046&contRep=ZT&docId=005056AB82531ED998880B4F0DC3B820&compId=KINGBRIGHT_TECH_NOTES.pdf?ci_sign=488380cf3450ddda868e2877d7bb774bb390246c
- pVersion=0046&contRep=ZT&docId=E1C05839AA1023F1A6F5005056AB5A8F&compId=SA04-11.pdf?ci_sign=1db97041217506a1bb8dc90f695c1e7db348c10a
Specification for Display: LED; 7-segment; 10.16mm; 0.4"; No.char: 1; red; 3÷8mcd
| Mounting | THT |
| Colour | red |
| Row pitch | 7.5mm |
| Terminal pitch | 2.54mm |
| Dimensions | 18.75x9.8mm |
| Common electrode | anode |
| Kind of display | 7-segment |
| Number of characters | 1 |
| Luminosity | 3...8mcd |
| Type of display | LED |
| Digit height | 10.16mm |
| Wavelength | 625nm |
| Digit height " | 0.4" |
