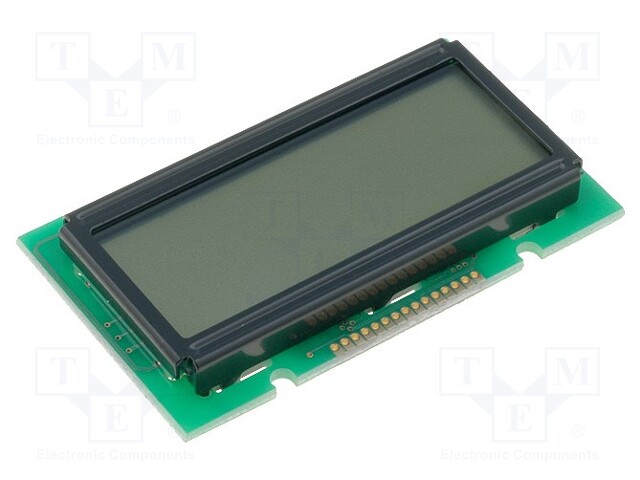

Display: LCD; alphanumeric; FSTN Positive; 12x2; yellow; LED
Multiples:
1.0
Minimum quantity:
1.0
Product code:
RC1202A-FHY-ESV
Manufacturer: RAYSTAR OPTRONICS
Manufacturer code: RC1202A-FHY-ESV
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDDBEC606CFCB6540D5&compId=RS%20PCN-NT7065B-20221110.pdf?ci_sign=e6070720770101028d3b0d4162bbef2394c5ba5b
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE80A1B5BCC66760D5&compId=displays.txt?ci_sign=eaf78fd912bebb1d94d1d350f52cc04fb0aa44fb
- pVersion=0046&contRep=ZT&docId=005056AB752F1ED48CB77DBACB3221EC&compId=Raystar_backlight%26color%20matching.JPG?ci_sign=e80807c6986c04b0fcce7e0d8f5e39f58a3db2ed
- pVersion=0046&contRep=ZT&docId=005056AB90B41ED9AAA49E51F23900C1&compId=RC1202A-FHY-ESV.pdf?ci_sign=096a7fe1f9d7f4d9950ee16f510029a0614261ad
Specification for Display: LCD; alphanumeric; FSTN Positive; 12x2; yellow; LED
| Supply voltage | 3...3.6V DC |
| Contacts pitch | 1.27mm |
| Number of pins | 15 |
| Dimensions | 55.7x32x9.7mm |
| Type of pin configuration | 1x15 |
| Number of characters (columns x lines) | 12x2 |
| Kind of display | alphanumeric |
| Display technology | FSTN Positive |
| Backgr. colour | yellow |
| Backlight colour | yellow-green |
| Illumination | LED |
| Window dimensions (H x W) | 46x14.5mm |
| Kind of controller | ST7066 |
| Type of display | LCD |
| Supported character set | English, Europe |
