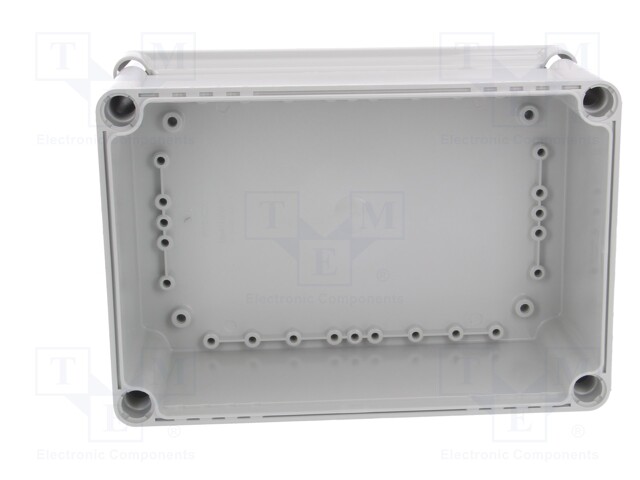

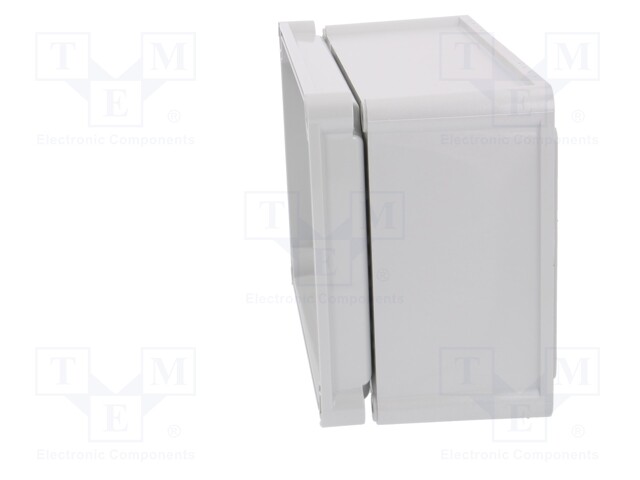

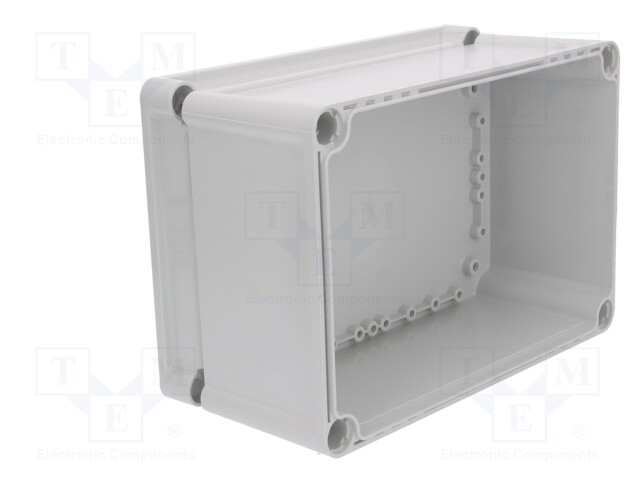

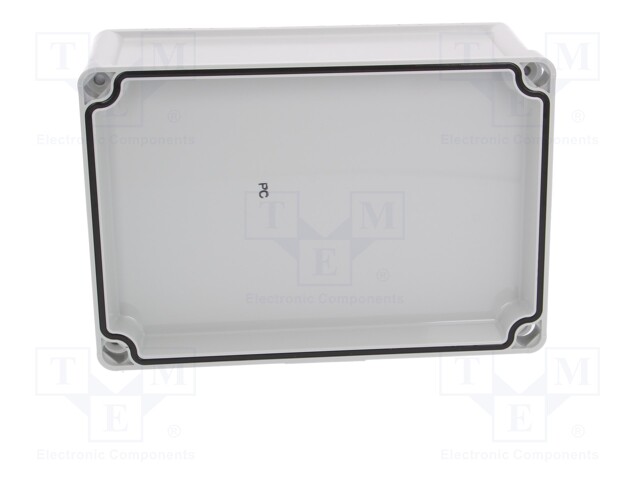

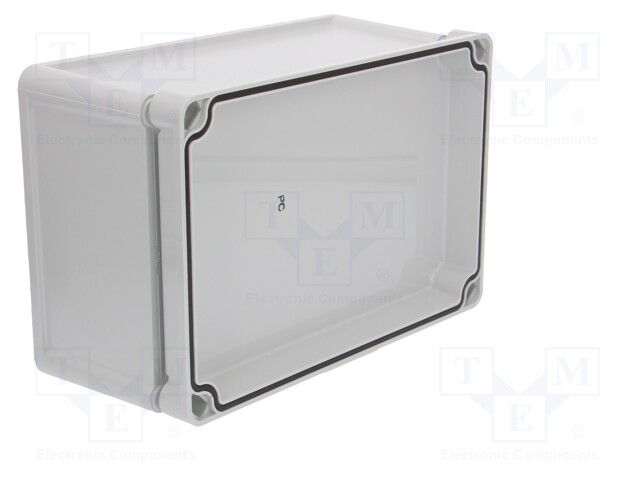

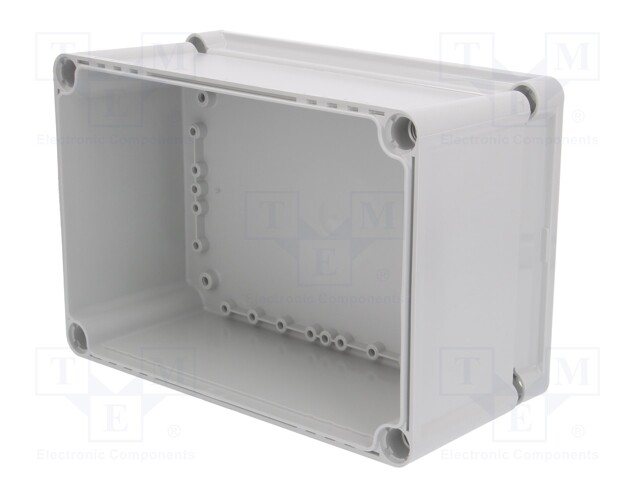

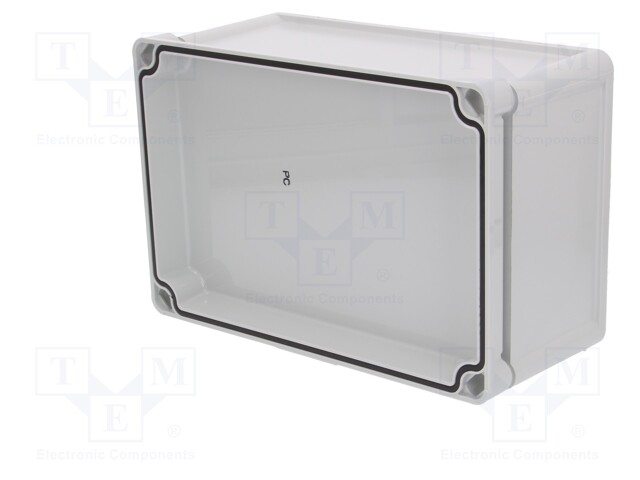

Enclosure: multipurpose; X: 188mm; Y: 278mm; Z: 130mm; SOLID; grey
Multiples:
1.0
Minimum quantity:
1.0
Product code:
PC 2819 13 G
Manufacturer: FIBOX
Manufacturer code: PC 2819 13 G
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDDAA8A1EA0C1E0C0D3&compId=FIBOX%20GROUP.txt?ci_sign=3279eee6074d1752cc1d4c3324a8505dbbe5f778
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDDBEF0B86EACBFA0D5&compId=fibox.txt?ci_sign=951ab67ab6b41421b28cf94fca71315f820268cc
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDF85D4F61EC14FC0D6&compId=FIBOX_Mat.txt?ci_sign=ba466ad526cfe3efd6882fe5fc8b801129db56e1
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE890C8C7D2AA7DB3D3&compId=SOLID-EN.pdf?ci_sign=a6789bb67961c58ed53d308defb22c42cad97c4a
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA0977A35543080C7&compId=FIBOX-CATALOGUE_2021.pdf?ci_sign=c211f190bbe171b29a6cbc8e4b5e06a91eaa4a98
Specification for Enclosure: multipurpose; X: 188mm; Y: 278mm; Z: 130mm; SOLID; grey
| Operating temperature | -40...80°C |
| IP rating | IP66, IP67 |
| Enclosure material | polycarbonate |
| Type of enclosure | multipurpose |
| Dimension Y | 278mm |
| Body colour | grey |
| Dimension X | 188mm |
| Dimension Z | 130mm |

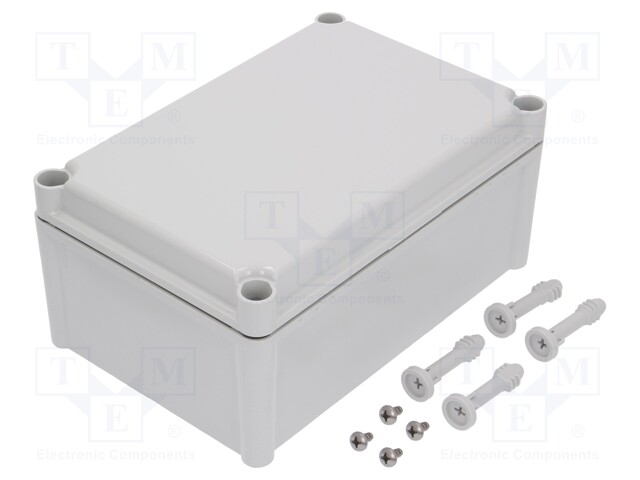

| Kit contents | cover fastening screws, mounting screws |
| Cover colour | grey |
| Cover material | polycarbonate (PC) |
| Mechanical impact resistance | IK08 |
