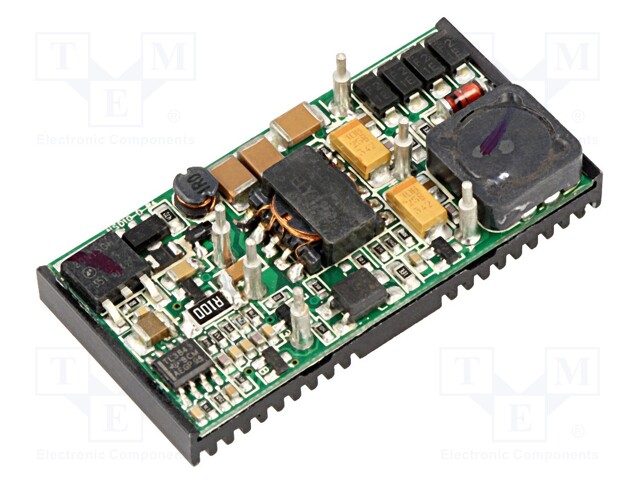

Converter: DC/DC; 10.08W; Uin: 9.8÷36V; Uout: 12VDC; Uout2: -12VDC
Multiples:
1.0
Minimum quantity:
1.0
Product code:
NSD10-12D12
Manufacturer: MEAN WELL
Manufacturer code: NSD10-12D12
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB752F1ED48E9994F43C3521EC&compId=NSD10-D-SPEC.PDF?ci_sign=6021167f7b063589f4f56d48fbf552aac19c7710
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69E96C65EA8314FA8&compId=Short_Form_dd.pdf?ci_sign=9e79bc9dc6e3b250477a2cfd10198e3258f594dc
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA390A2BDE3BA60C7&compId=Mean_Well_Industrial-Catalog.pdf?ci_sign=e5a3bf0d98e6bb6b792c315b1e2cf501830c330c
Specification for Converter: DC/DC; 10.08W; Uin: 9.8÷36V; Uout: 12VDC; Uout2: -12VDC
| Output current | 420mA |
| Mounting | PCB |
| Case | 2"x1" |
| Power | 10.08W |
| Operating temperature | -25...70°C |
| Protection | anti-overload, anti-overvoltage, short circuit protection |
| Series | NSD10-D |

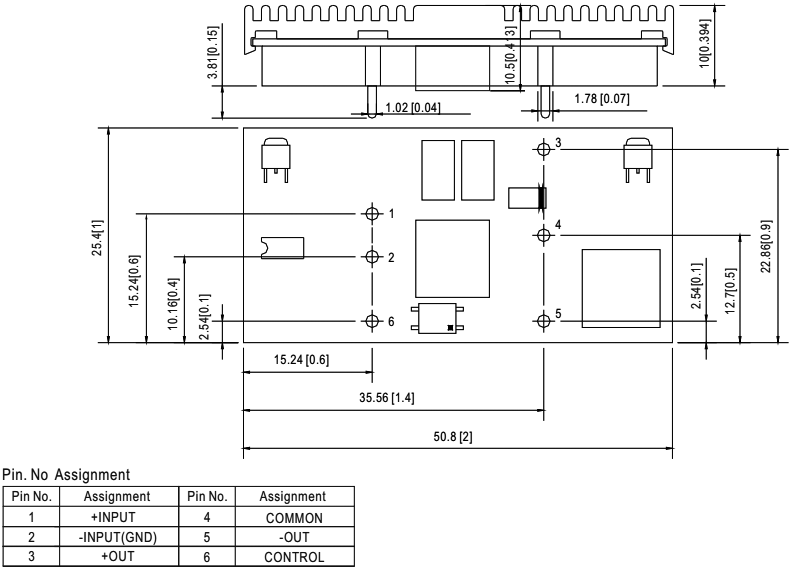

| Body dimensions | 50.8x25.4x10mm |
| Output voltage | 12V DC |
| Insulation voltage | 1kV DC |
| Efficiency | 77% |
| Output current 2 | 420mA |
| Output voltage 2 | -12V DC |
| Number of outputs | 2 |
