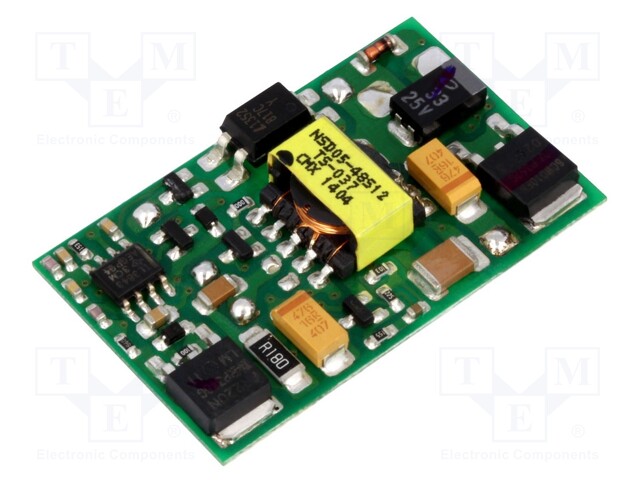

Converter: DC/DC; 5.04W; Uin: 18÷72V; 12VDC; Iout: 420mA; 7g; OUT: 1
Multiples:
1.0
Minimum quantity:
1.0
Product code:
NSD05-48S12
Manufacturer: MEAN WELL
Manufacturer code: NSD05-48S12
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB752F1ED48E998A159EECE1EC&compId=NSD05-S-SPEC.PDF?ci_sign=36707a268148d0e3d1e053de8649d1bb506ce060
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69E96C65EA8314FA8&compId=Short_Form_dd.pdf?ci_sign=9e79bc9dc6e3b250477a2cfd10198e3258f594dc
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA390A2BDE3BA60C7&compId=Mean_Well_Industrial-Catalog.pdf?ci_sign=e5a3bf0d98e6bb6b792c315b1e2cf501830c330c
Specification for Converter: DC/DC; 5.04W; Uin: 18÷72V; 12VDC; Iout: 420mA; 7g; OUT: 1
| Output current | 420mA |
| Mounting | PCB |
| Power | 5.04W |
| Operating temperature | -25...70°C |
| Protection | anti-overload, anti-overvoltage, short circuit protection |
| Series | NSD05-S |

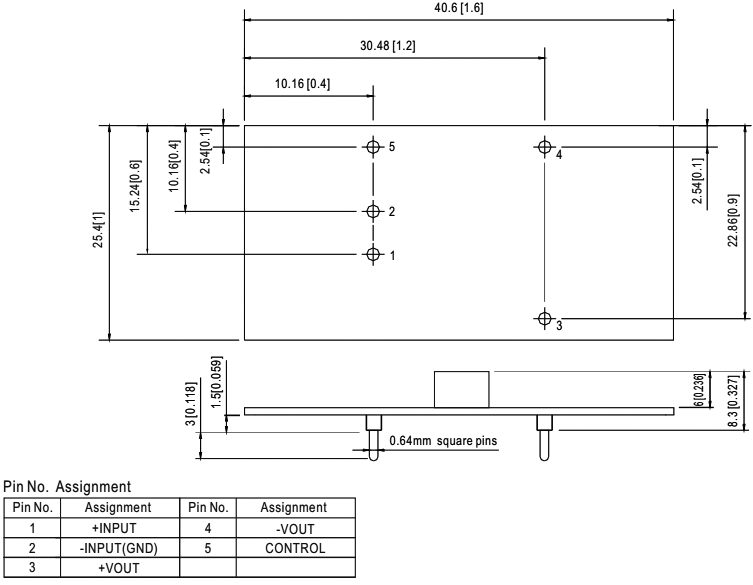

| Body dimensions | 40.6x25.4x8.3mm |
| Output voltage | 12V DC |
| Insulation voltage | 1kV DC |
| Efficiency | 83% |
| Number of outputs | 1 |
