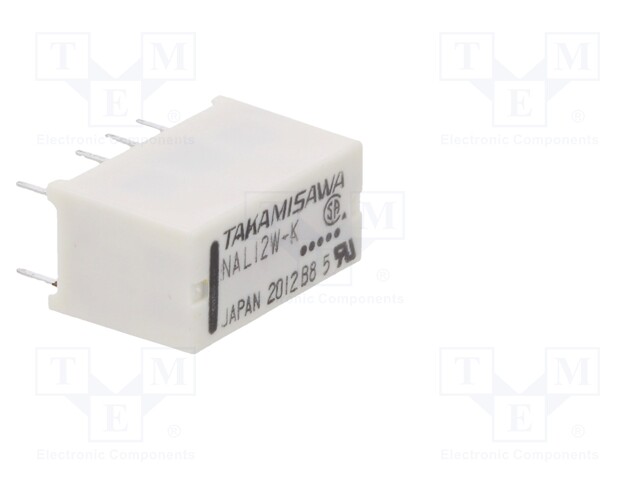

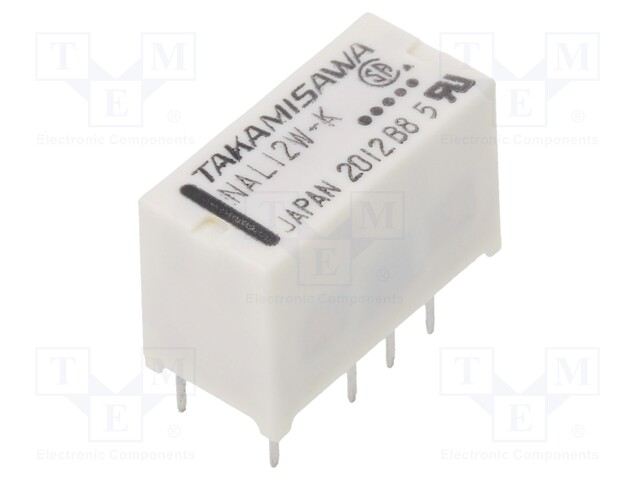

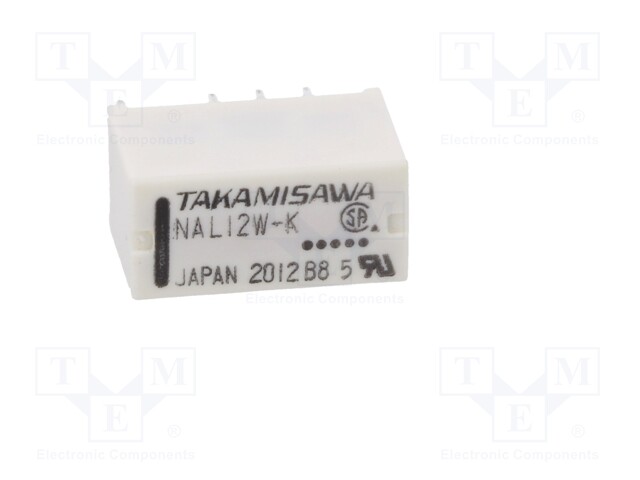

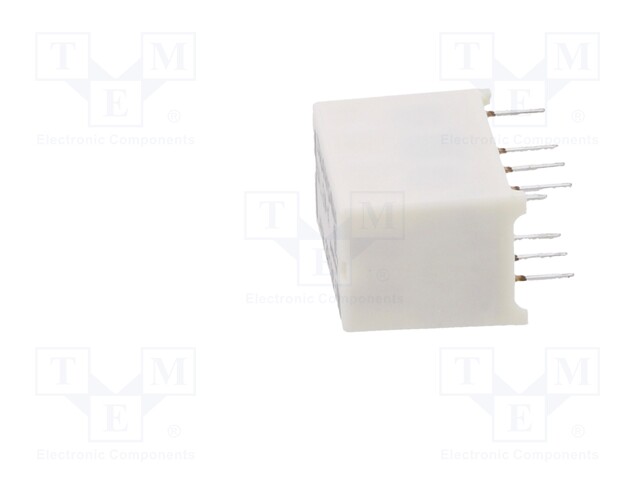

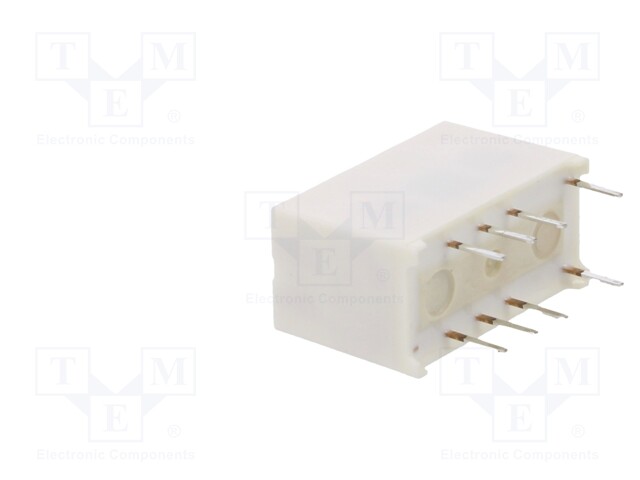

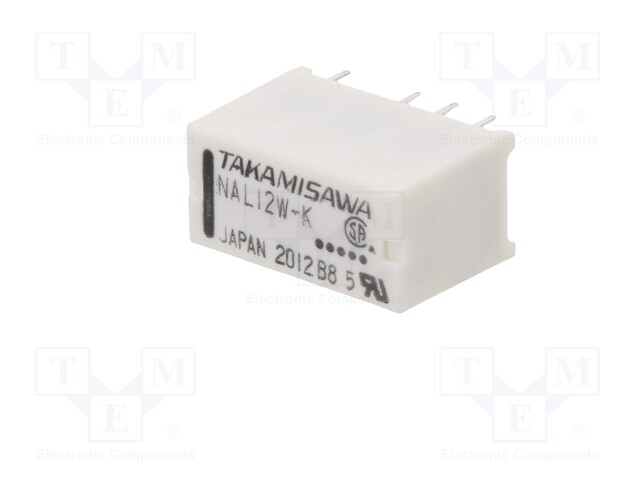

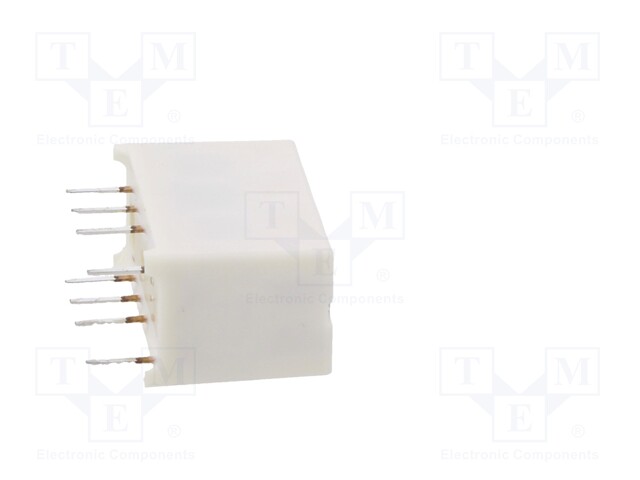

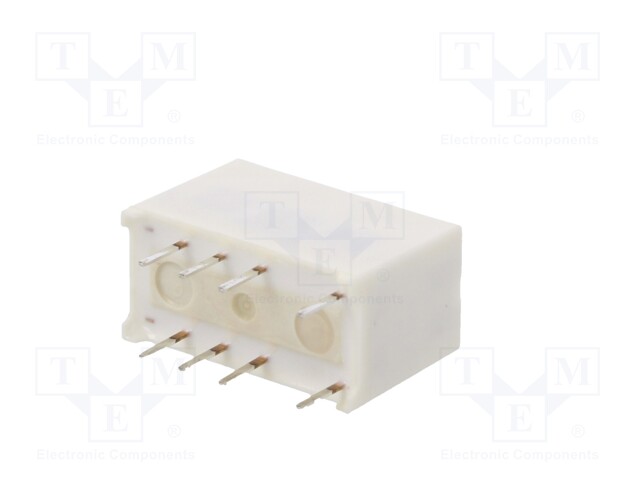

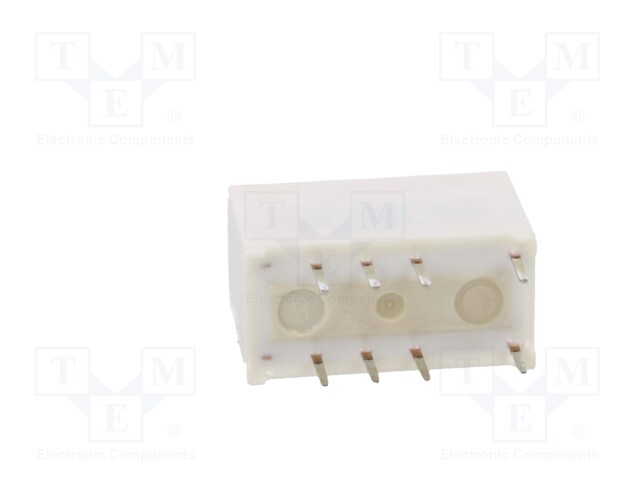

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 1A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: NAL-12W-K
    Manufacturer: FUJITSU
    Manufacturer code: NAL-12W-K
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    2.55 € 2.55 € (wo VAT) 2.5500000000000003 EUR

    2.55 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 1A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgPd/Au 0,2μm

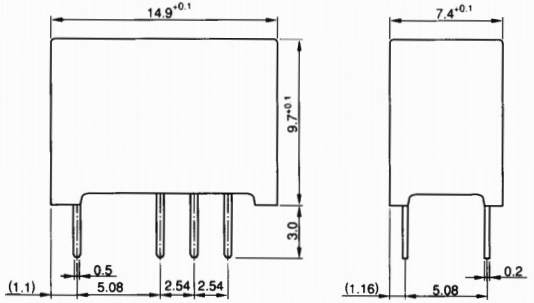

    Terminal pitch 2.54mm
    Switched voltage max. 220V DC, max. 250V AC
    Coil resistance 1.44kΩ
    Rated coil voltage 12V DC

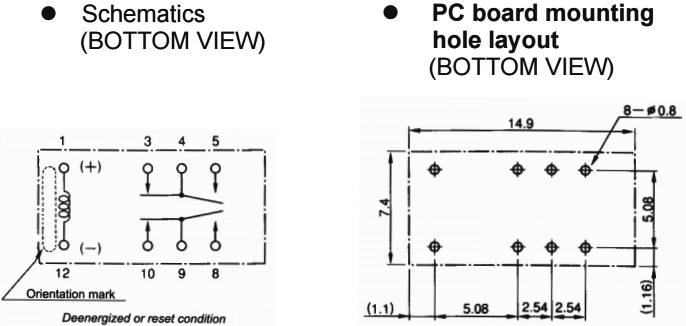

    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 2A
    Relay variant subminiature
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 100mW
    Operate time 6ms
    Release time 6ms
