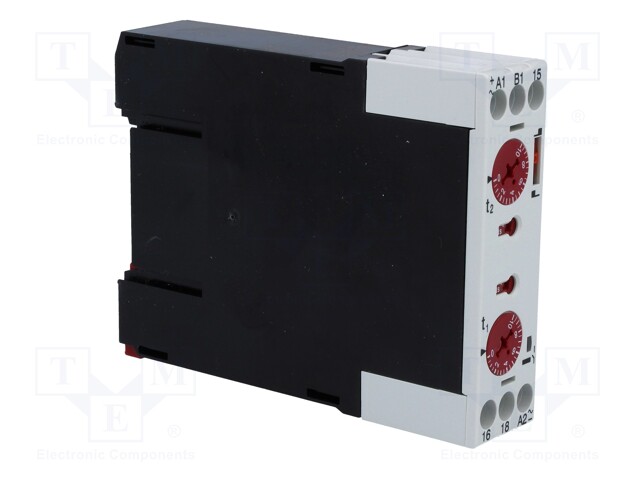

Timer; 0,05s÷60h; SPDT; 250VAC/3A; 24÷240VAC; 24÷48VDC; DIN; PIN: 6

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: KOP170J7MWVPN00
    Manufacturer: SAIA-BURGESS
    Manufacturer code: KOP170J7MWVPN00
    • Mounting
    • Supply voltage
    • Supply voltage
    • Operating temperature
    • IP rating
    • Number of pins
    • Type of module
    • Body dimensions
    • Kind of output
    • Indication
    • Electrical connection
    • Counting range
    • Counter operation modes
    • Counter operation modes
    • Counter operation modes
    • number of operation modes
    • The additional control inputs

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Timer; 0,05s÷60h; SPDT; 250VAC/3A; 24÷240VAC; 24÷48VDC; DIN; PIN: 6

    Mounting for DIN rail mounting
    Supply voltage 24...48V DC, 24...240V AC
    Operating temperature -20...60°C
    IP rating IP20
    Number of pins 6
    Type of module timer

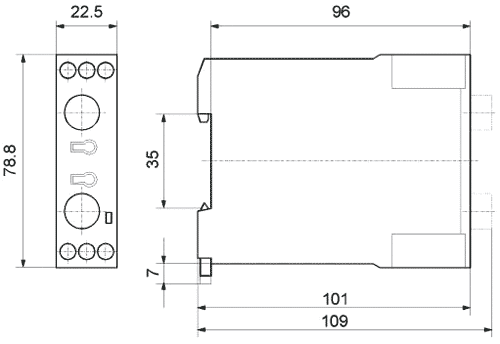

    Body dimensions 22.5x78.8x101mm
    Kind of output SPDT
    Indication LED
    Electrical connection screw terminals
    Counting range 0,05s...60h

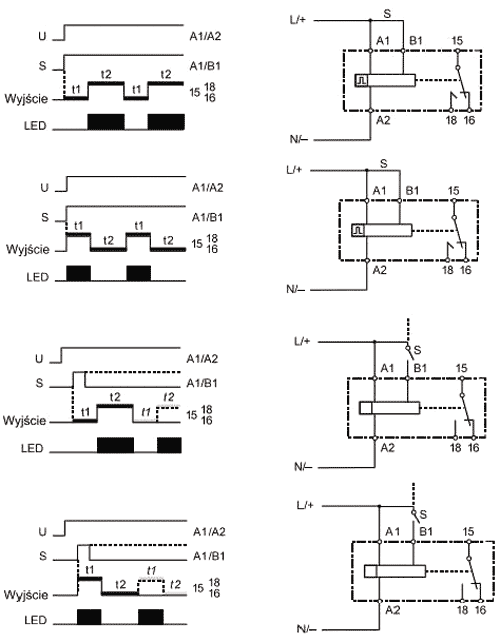

    Counter operation modes cyclical operation with two independent times T1 and T2, pause first, cyclical operation with two independent times T1 and T2, pulse first, with the control contact S
    number of operation modes 4
    The additional control inputs START
