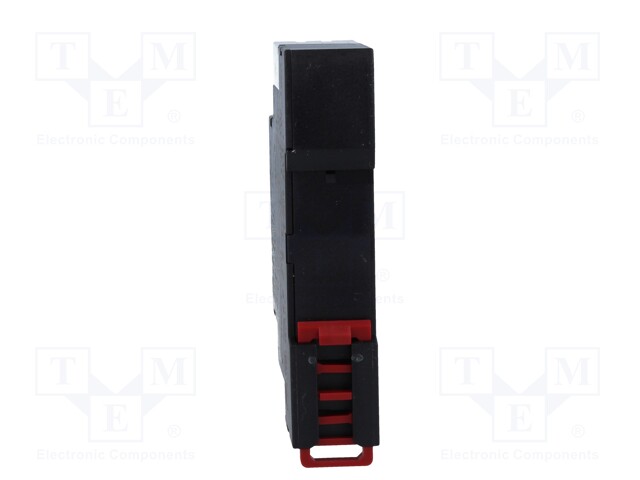

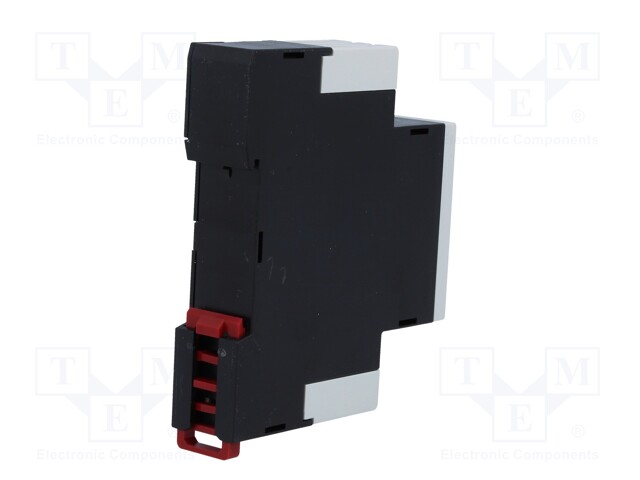

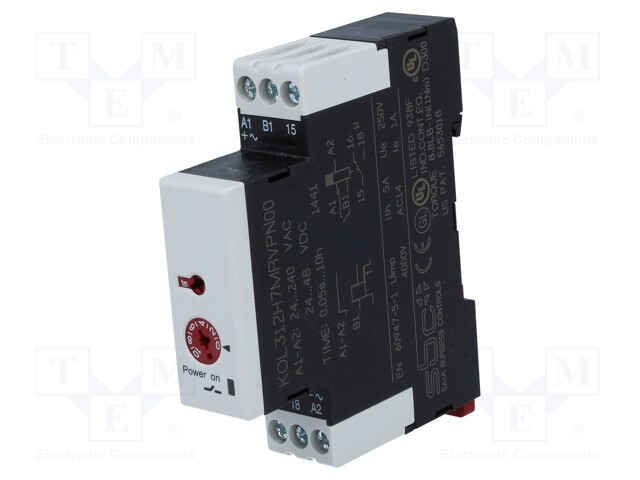

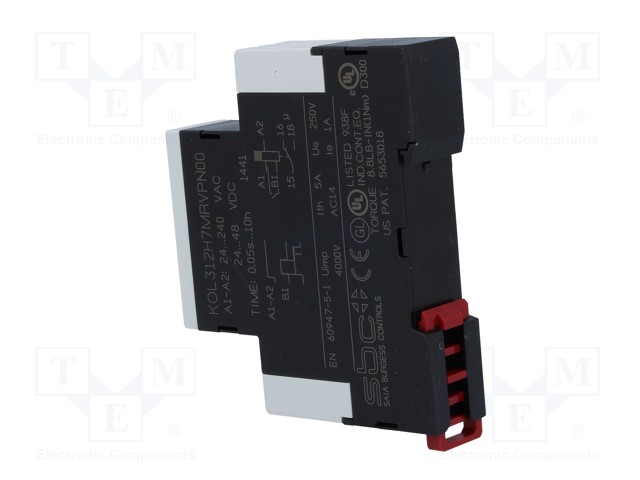

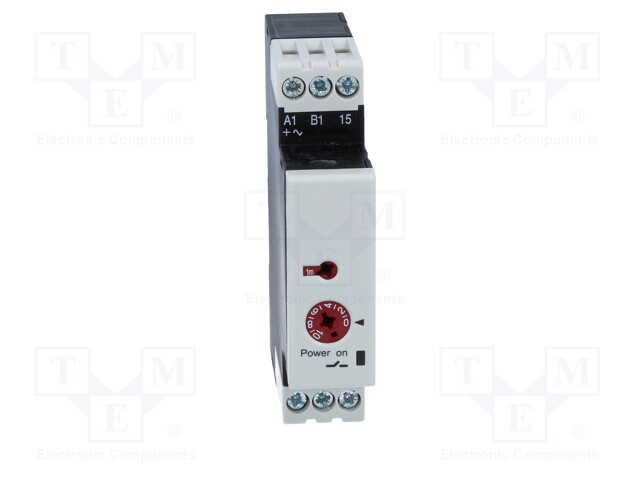

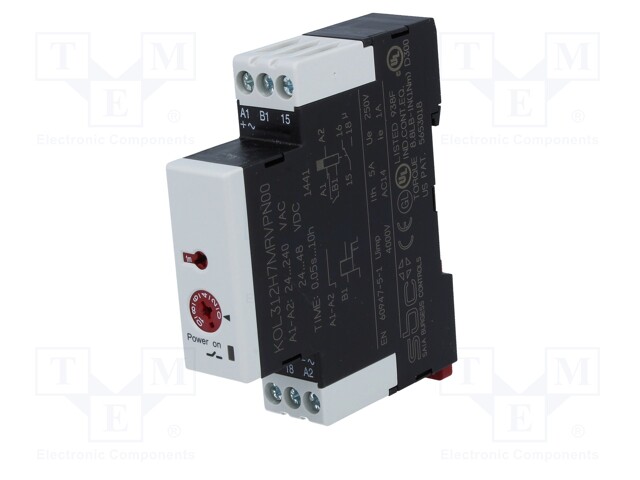

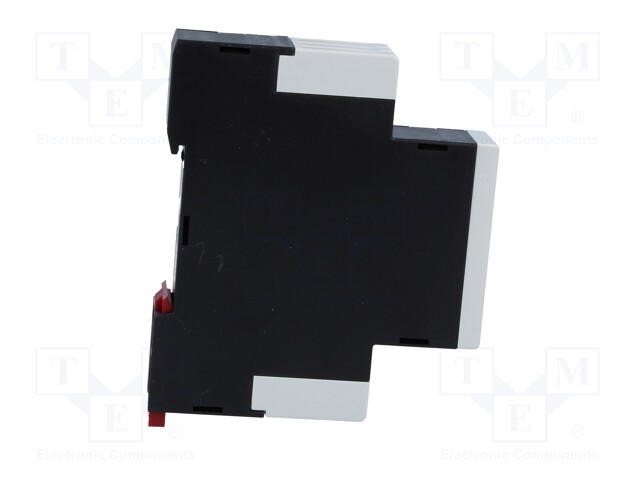

Timer; 0,05s÷10h; SPDT; 250VAC/5A; 24÷240VAC; 24÷48VDC; DIN; PIN: 6

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: KOL312H7MRVPN00
    Manufacturer: SAIA-BURGESS
    Manufacturer code: KOL312H7MRVPN00
    • Mounting
    • Supply voltage
    • Supply voltage
    • Operating temperature
    • IP rating
    • Number of pins
    • Type of module
    • Body dimensions
    • Kind of output
    • Indication
    • Electrical connection
    • Counting range
    • Counter operation modes
    • Counter operation modes
    • number of operation modes
    • The additional control inputs

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Timer; 0,05s÷10h; SPDT; 250VAC/5A; 24÷240VAC; 24÷48VDC; DIN; PIN: 6

    Mounting for DIN rail mounting
    Supply voltage 24...48V DC, 24...240V AC
    Operating temperature -20...50°C
    IP rating IP20
    Number of pins 6
    Type of module timer
    Body dimensions 17.5x80x70mm
    Kind of output SPDT
    Indication LED
    Electrical connection screw terminals
    Counting range 0,05s...10h
    Counter operation modes delayed switching off, with the control contact S
    number of operation modes 1
    The additional control inputs START
