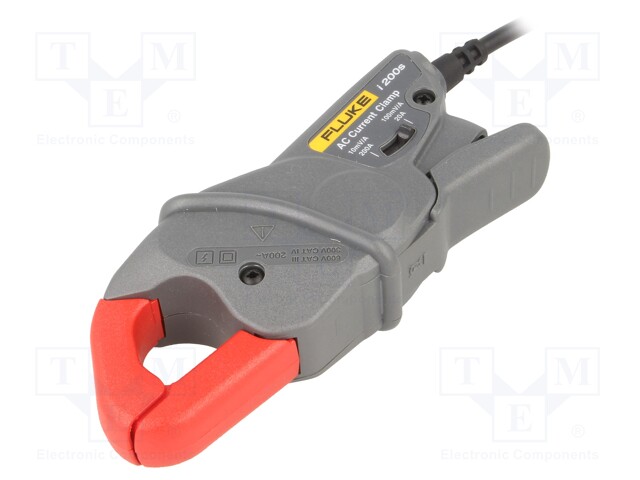

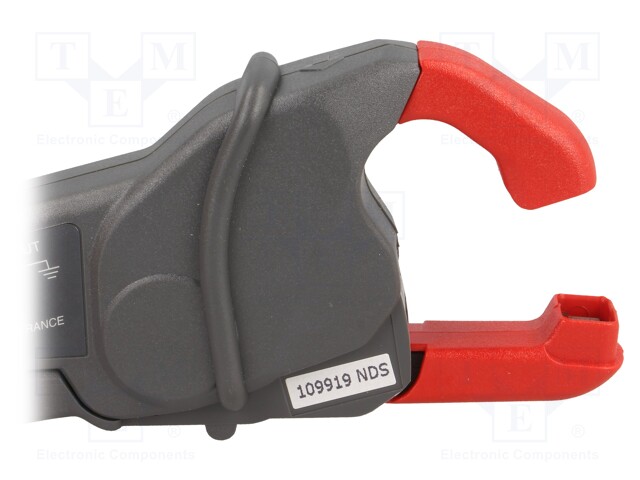

AC current clamp adapter; Øcable: 20mm; I AC: 0,1÷24A,0,5÷240A
Multiples:
1.0
Minimum quantity:
1.0
Product code:
I200S
Manufacturer: FLUKE
Manufacturer code: I200S
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDEABC2AD97901E80D6&compId=MEASURING.txt?ci_sign=d0ccb06ee923cc677e69012bfb5fb7bd92f37df8
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3A3B3C0FAEA9E926B&compId=i200s___iseng0500.pdf?ci_sign=e7d536fb44639dcab6ea47b2a82a43d66f959615
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3ABEB6D412F7421DC&compId=INB-MIER-EN.pdf?ci_sign=9f97fafdfd0fa92910eac1938c04e02cb683e79f
Specification for AC current clamp adapter; Øcable: 20mm; I AC: 0,1÷24A,0,5÷240A
| IP rating | IP40 |
| Max. operating voltage | 600V |
| Cable length | 2m |
| Dimensions | 135x50x30mm |
| Output signal | 10mV AC/1A (0,5A...240A), 100mV AC/1A (0,1A...24A) |
| Conform to the norm | CAT III 600V, EN 61010 |
| Measuring instrument features | permanently connected test leads |

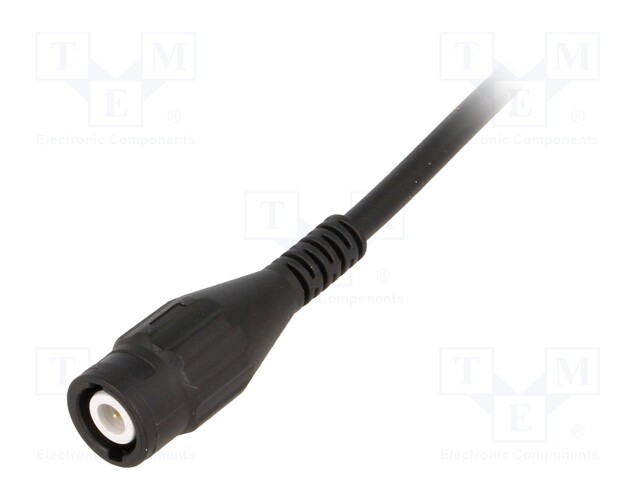

| Standard equipment | BNC to banana plug adapter |
| Type of test accessories | AC current clamp adapter |
| Max. diameter of measured cable | 20mm |
| Measurement | AC current |
| Weight without batteries | 180g |
