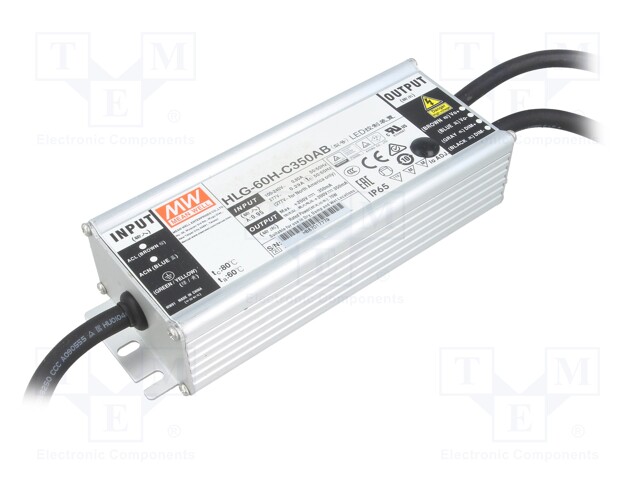

Power supply: switched-mode; LED; 70W; 100÷200VDC; 210÷350mA; IP65
Multiples:
1.0
Minimum quantity:
1.0
Product code:
HLG-60H-C350AB
Manufacturer: MEAN WELL
Manufacturer code: HLG-60H-C350AB
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB90B41ED9ABDA74A4A36480C2&compId=HLG-60H-C-SPEC.pdf?ci_sign=53260bda086d93ec50571a732ae4e817fe8ea065
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA3908F7DBE84A0C7&compId=Mean_Well_LED-Catalog.pdf?ci_sign=9418c0cab4404a4678439163a402f890ca6b0e6f
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBABB3BDD562D980C7&compId=MEANWELLLED.txt?ci_sign=47dae5812981da6c821142ede2a94e1719cfab54
Specification for Power supply: switched-mode; LED; 70W; 100÷200VDC; 210÷350mA; IP65
| Output current | 210...350mA |
| Supply voltage | 90...305V AC, 127...431V DC |
| Power | 70W |
| Operating temperature | -40...80°C |
| IP rating | IP65 |
| Protection | overheating, anti-overvoltage, short circuit protection |
| Type of power supply | switched-mode |
| Series | HLG-60H-C |
| Application | LED |
| Body dimensions | 171x61.5x36.8mm |
| Output voltage | 100...200V DC |
| Additional functions | active PFC, adjustable output current level, dimming function 1-10V DC, PWM controlled dimming function, resistance dimming function |
| Efficiency | 91% |
| Number of outputs | 1 |
| Electrical connection | 300mm wires FG L N |
| Kind of case | 957 |
