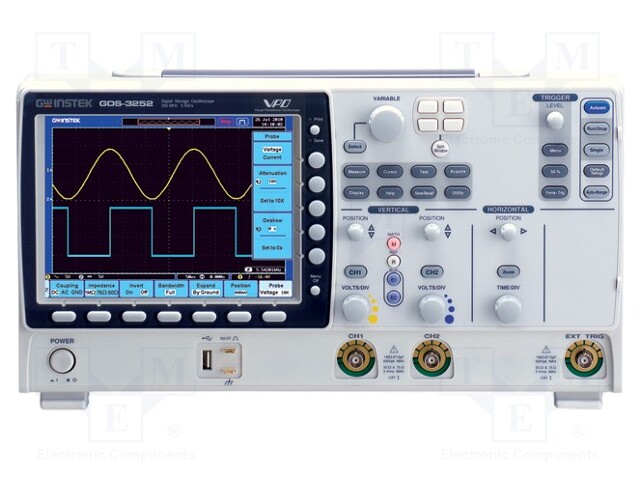

Oscilloscope: digital; Band: ≤250MHz; Channels: 2; 25kpts/ch
Multiples:
1.0
Minimum quantity:
1.0
Product code:
GDS-3252
Manufacturer: GW INSTEK
Manufacturer code: GDS-3252
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDEABC2AD97901E80D6&compId=MEASURING.txt?ci_sign=d0ccb06ee923cc677e69012bfb5fb7bd92f37df8
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3A3B3C7511D28726B&compId=GDS-3000%2BUser%2BManual%2B2013%2B0930.pdf?ci_sign=831e5d50c68940529e451d67fe85e56fb70a1651
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3ABEB6E1127D9E1DC&compId=INB-OSC-EN.pdf?ci_sign=cc953919fa7791e53b3e91c6a0ae867e152f4fb5
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE386C1AF2E46288CAD&compId=GDS-3000-DTE.pdf?ci_sign=6d367f46c0e4c97b2cbc65eb5cdd997e04a70082
Specification for Oscilloscope: digital; Band: ≤250MHz; Channels: 2; 25kpts/ch
| Supply voltage | 100...240V AC |
| Number of channels | 2 |
| Interface | Ethernet, RS232, USB |
| Dimensions | 400x200x130mm |
| Kind of display used | LCD 8" |
| Kind of output connector | D-Sub female socket, D-Sub male socket, RJ45 socket, USB A socket, USB B socket |
| Max. input voltage | 300V |
| Trigger | falling-edge, impulse width, rising-edge, video signal |
| Measuring instrument features | automatic measurement of many parameters, AUTOSET function for setting display parameters (time base, gain), mathematical functions: addition, subtraction, division, multiplication and FFT, memory for 20 settings, split screen function |
| Standard equipment | mains cable, oscilloscope probe with 1:1/10:1 divider |
| Sampling | 100Gsps (in equivalent time), 2,5Gsps (in real time) |
| Type of oscilloscope | digital |
| Trigger modes | automatic, normal, single |
| Vertical resolution | 8bit |
| Input coupling | AC, DC, GND |
| Trigger coupling | AC, DC, highpass, lowpass |
