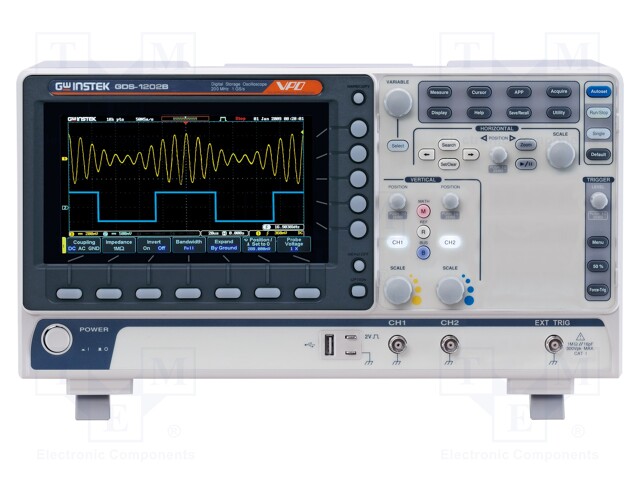

Oscilloscope: digital; Band: ≤200MHz; Channels: 2; 10Mpts; 1Gsps
Multiples:
1.0
Minimum quantity:
1.0
Product code:
GDS-1202B
Manufacturer: GW INSTEK
Manufacturer code: GDS-1202B
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDCB6FDC227890760D2&compId=Oscilloscopes.txt?ci_sign=fc4914b999adfc6a360c969426fcd53092999102
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDEABC2AD97901E80D6&compId=MEASURING.txt?ci_sign=d0ccb06ee923cc677e69012bfb5fb7bd92f37df8
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDA9CCA958BBE8220C4&compId=GDS-1000B.pdf?ci_sign=f5a8204cd31f06327913f83c966136c77e4c1da7
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDA9CCA958BBE8320C4&compId=GDS-1000B-MANUAL.pdf?ci_sign=8b4acfb9fea31beb6251cd42e3bf5468984e733a
Specification for Oscilloscope: digital; Band: ≤200MHz; Channels: 2; 10Mpts; 1Gsps
| Number of channels | 2 |
| Interface | USB |
| Dimensions | 384x208x127.3mm |
| Kind of display used | color, LCD 7" |
| Display resolution | 800x480 |
| Max. input voltage | 300V |
| Measuring instrument features | automatic measurement of many parameters, background noise filter, measurements by means of cursors, X-Y operation mode |
| Standard equipment | mains cable, oscilloscope probe (1 per channel) |
| Sampling | 1Gsps |
| Type of oscilloscope | digital |
| Trigger modes | automatic, normal, single |
| Vertical resolution | 8bit |
| Input coupling | AC, DC, GND |
| Trigger coupling | AC, DC, highpass, lowpass |
