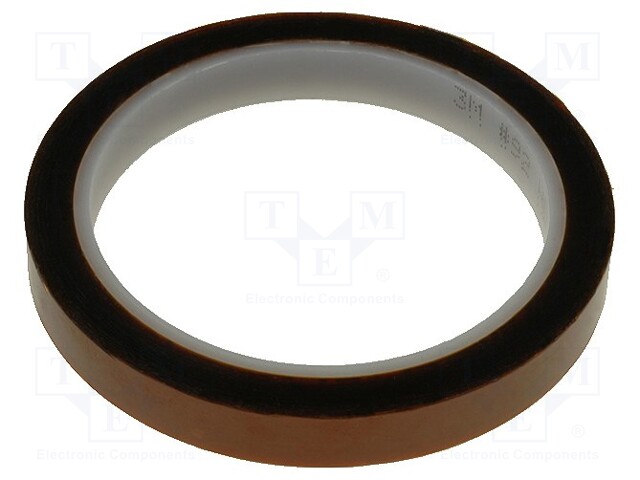

Tape: electrical insulating; W: 12mm; L: 33m; D: 76um; silicone; 55%

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: FE-5100-5507-5
    Manufacturer: 3M
    Manufacturer code: FE-5100-5507-5
    • Flammability rating
    • Width
    • Length
    • Thickness
    • Dielectric strength
    • Tape application
    • Tape application
    • Tape application
    • Tape application
    • Type of tape
    • Tape material
    • Min. insulation resistance
    • Max ambient temperature
    • Kind of adhesive
    • Tape features
    • Shearing force
    • Adhesion to steel
    • Elongation at rupture

    30.56 € 30.56 € (wo VAT) 30.560000000000002 EUR

    30.56 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Tape: electrical insulating; W: 12mm; L: 33m; D: 76um; silicone; 55%

    Flammability rating UL510
    Width 12mm
    Length 33m
    Thickness 76µm
    Dielectric strength 7.5kV
    Tape application high temperature applications, masking, electrical insulation, winding insulation
    Type of tape electrical insulating
    Tape material polyimide
    Min. insulation resistance 1TΩ
    Max ambient temperature 180°C
    Kind of adhesive silicone
    Tape features enables labelling
    Shearing force 53N
    Adhesion to steel 2.8N/cm
    Elongation at rupture 55%
