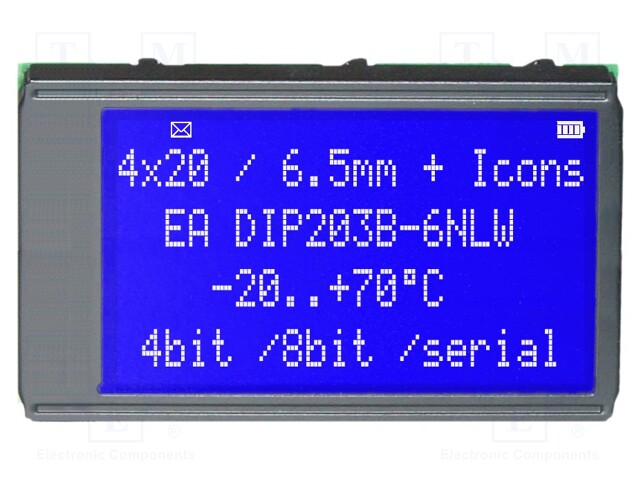

Display: LCD; alphanumeric; STN Positive; 20x4; blue; 75x45.8mm
Multiples:
1.0
Minimum quantity:
1.0
Product code:
EA DIP203B-6NLW
Manufacturer: ELECTRONIC ASSEMBLY
Manufacturer code: EA DIP203B-6NLW
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDCB798FC20E83C40D2&compId=EA%20DIP203B-6NLW.pdf?ci_sign=016fab4ee0174417d6773c339e4d79272ddca10a
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE80A1B5BCC66760D5&compId=displays.txt?ci_sign=eaf78fd912bebb1d94d1d350f52cc04fb0aa44fb
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDB8AAF6A40EB05A0C7&compId=display-visions.txt?ci_sign=bb0d6a37612ec70fbd412e3f6c33742a0c45459e
Specification for Display: LCD; alphanumeric; STN Positive; 20x4; blue; 75x45.8mm
| Supply voltage | 3.3V DC |
| Contacts pitch | 2.54mm |
| Interface | 8bit BUS |
| Number of pins | 24 |
| Dimensions | 75x45.8mm |
| Type of pin configuration | 2x12 |
| Number of characters (columns x lines) | 20x4 |
| Kind of display | alphanumeric |
| Display technology | STN Positive |
| Backgr. colour | blue |
| Backlight colour | white |
| Illumination | LED |
| Window dimensions (H x W) | 61x38mm |
| Kind of controller | SSD1803 |
| Type of display | LCD |
| Digit height | 3.745mm |
| Character width | 2.335mm |
| Supported character set | Cyrillic, Europe, Japanese |
