Power supply: switched-mode; 60W; 24VDC; 24÷30VDC; 2.5A; 90÷264VAC
Multiples:
1.0
Minimum quantity:
1.0
Product code:
DRA-60-24
Manufacturer: MEAN WELL
Manufacturer code: DRA-60-24
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE580D4CAEC2C9F2469&compId=DRA-60-SPEC.PDF?ci_sign=ece2f02725aae78947121b2da55527c5e9a6e27a
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69E990BD1387EAFA8&compId=Short_Form_din.pdf?ci_sign=4a2af7d7cff1d8d967fcaabc249b97f9dbe19d22
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA390A2BDE3BA60C7&compId=Mean_Well_Industrial-Catalog.pdf?ci_sign=e5a3bf0d98e6bb6b792c315b1e2cf501830c330c
Specification for Power supply: switched-mode; 60W; 24VDC; 24÷30VDC; 2.5A; 90÷264VAC
| Output current | 2.5A |
| Mounting | for DIN rail mounting |
| Supply voltage | 90...264V AC, 127...370V DC |
| Power | 60W |
| Operating temperature | -30...70°C |
| Protection | anti-overload, anti-overvoltage, short circuit protection |
| Type of power supply | switched-mode |
| Series | DRA-60 |

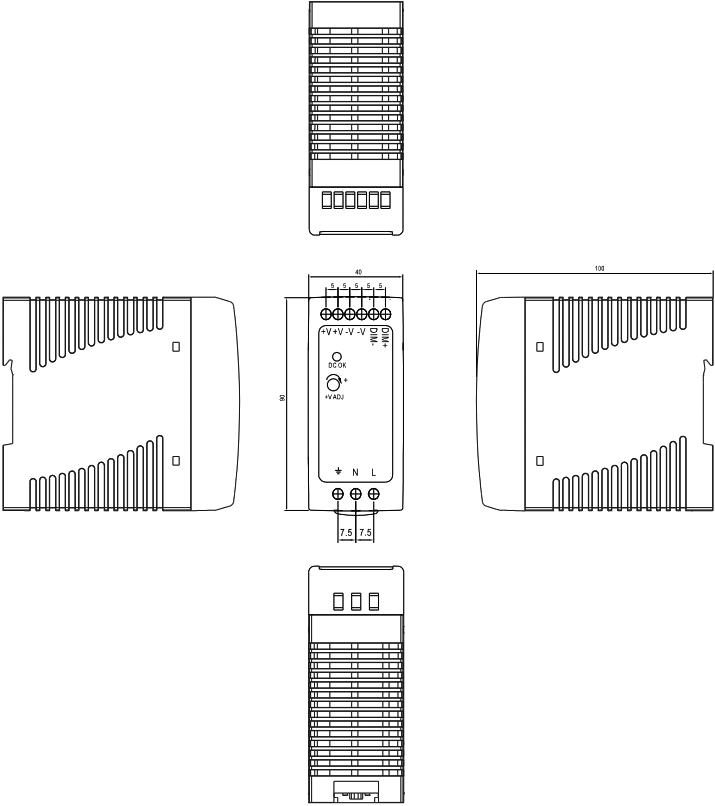

| Body dimensions | 40x90x100mm |
| Output voltage | 24V DC |
| Additional functions | active PFC, adjustable output voltage and current level, output voltage correctness indication |
| Efficiency | 87% |
| Number of outputs | 1 |
| Electrical connection | terminal block |
| Kind of power supply | for DIN rail |
