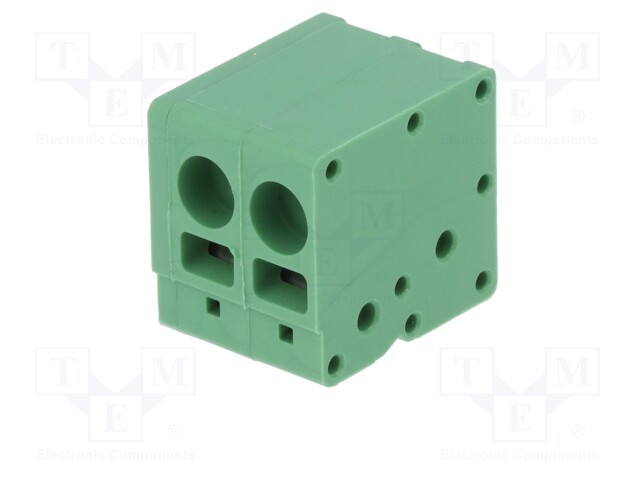

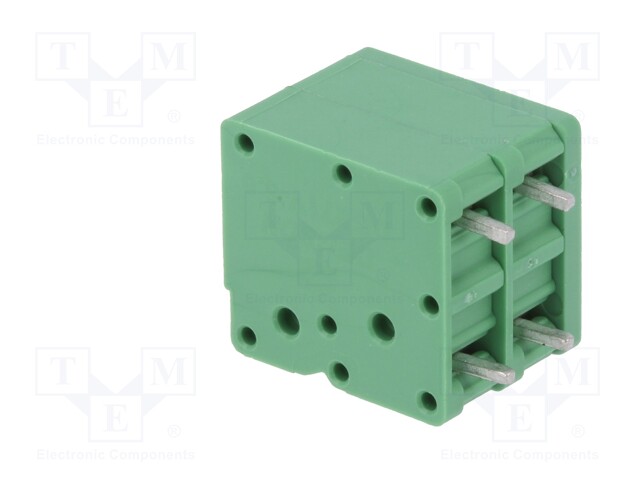

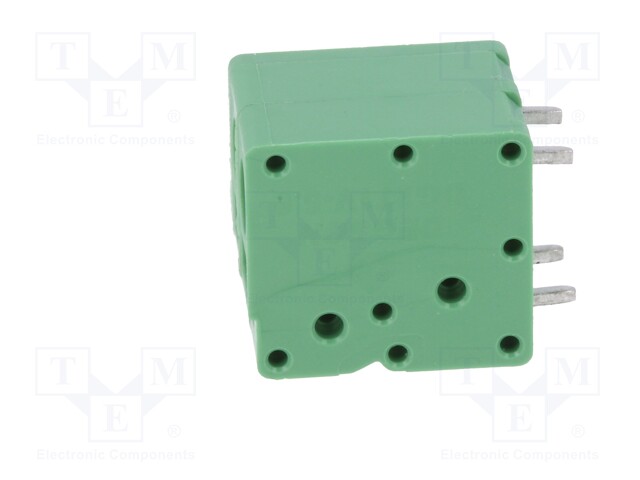

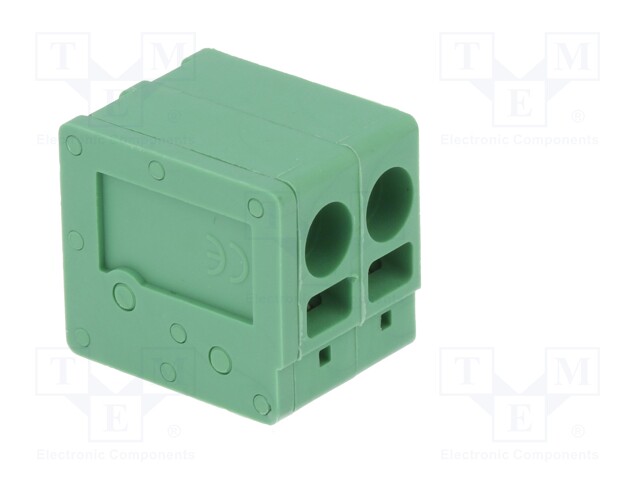

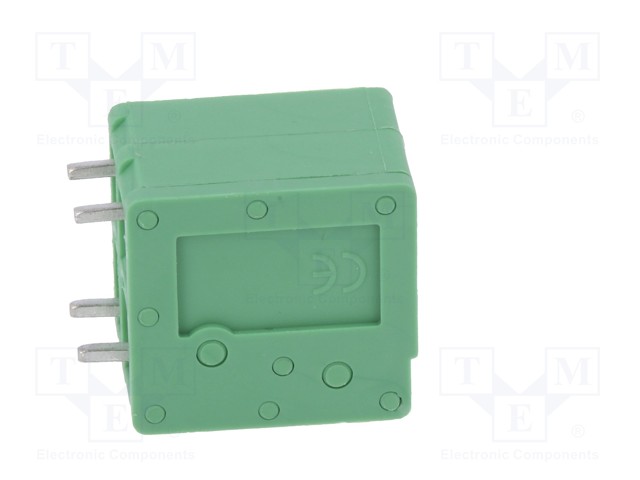

PCB terminal block; straight; 5mm; ways: 2; on PCBs; 0.2÷4mm2; 20A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DG271V-5.0-02P-14-100AH
    Manufacturer: DEGSON ELECTRONICS
    Manufacturer code: DG271V-5.0-02P-14-100AH
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Electrical mounting
    • Connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Contact material
    • Terminal pitch
    • Body material
    • Flammability rating
    • Length
    • Height
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Rated voltage
    • Conform to the norm
    • Conform to the norm
    • Spatial orientation
    • Depth

    1.36 € 1.36 € (wo VAT) 1.36 EUR

    1.36 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for PCB terminal block; straight; 5mm; ways: 2; on PCBs; 0.2÷4mm2; 20A

    Operating temperature -40...105°C
    Contacts pitch 5mm
    Electrical mounting spring clamp, THT
    Connector terminal
    Mechanical mounting on PCBs
    Colour green
    Contact plating tinned
    Type of connector PCB terminal block
    Contact material copper
    Terminal pitch 5x8.2mm
    Body material NYLON 66
    Flammability rating UL94V-0
    Length 11.4mm
    Height 14.8mm
    Current rating 20A
    Number of ways 2
    Type of pin configuration 1x2
    Rated voltage 300V
    Conform to the norm CE, UL
    Spatial orientation straight
    Depth 13.5mm
