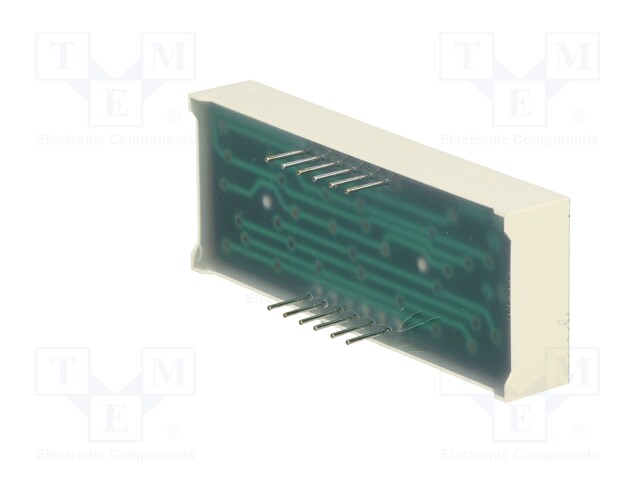

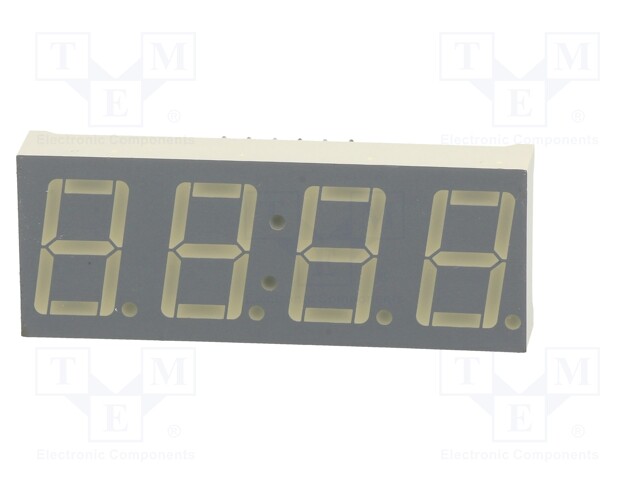

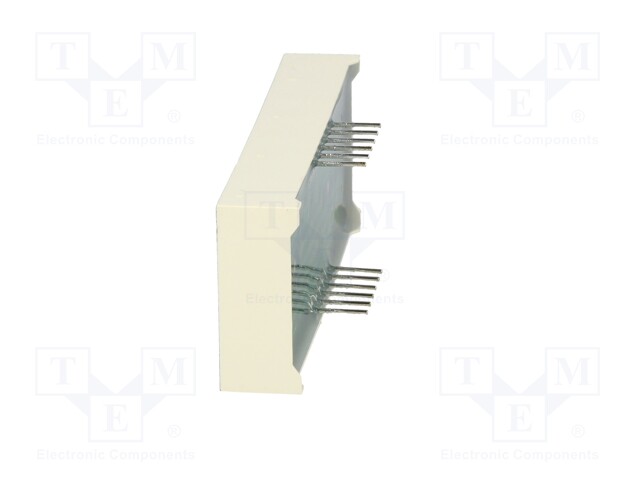

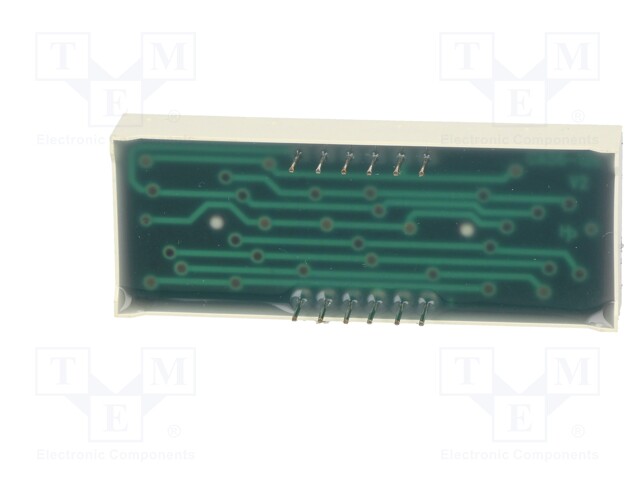

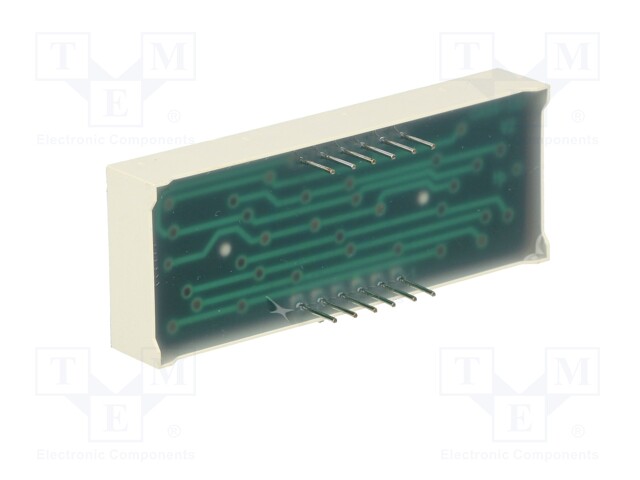

Display: LED; 7-segment; 14mm; 0.56"; No.char: 4; red; 12÷45mcd
Multiples:
1.0
Minimum quantity:
1.0
Product code:
CC56-12SRWA
Manufacturer: KINGBRIGHT ELECTRONIC
Manufacturer code: CC56-12SRWA
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE58DEC979909F56469&compId=APPLICATION%20NOTES%20(DISPLAY).pdf?ci_sign=a271ff8b5e8cfd5d816e2dfb76473e17b4a7e478
- pVersion=0046&contRep=ZT&docId=005056AB82531ED998880B4F0DC3B820&compId=KINGBRIGHT_TECH_NOTES.pdf?ci_sign=488380cf3450ddda868e2877d7bb774bb390246c
- pVersion=0046&contRep=ZT&docId=E1C048493893D5F1A6F5005056AB5A8F&compId=cc56-12srwa.pdf?ci_sign=5fec82fd5c8108576b8b35d1a1fd9b88e3ae3a5a
Specification for Display: LED; 7-segment; 14mm; 0.56"; No.char: 4; red; 12÷45mcd
| Mounting | THT |
| Colour | red |
| Operating current | 10mA |
| Dimensions | 19x50.3mm |
| Common electrode | cathode |
| Kind of display | 7-segment |
| Number of characters | 4 |
| Luminosity | 12...45mcd |
| Type of display | LED |
| Digit height | 14mm |
| Wavelength | 640nm |
| Digit height " | 0.56" |
