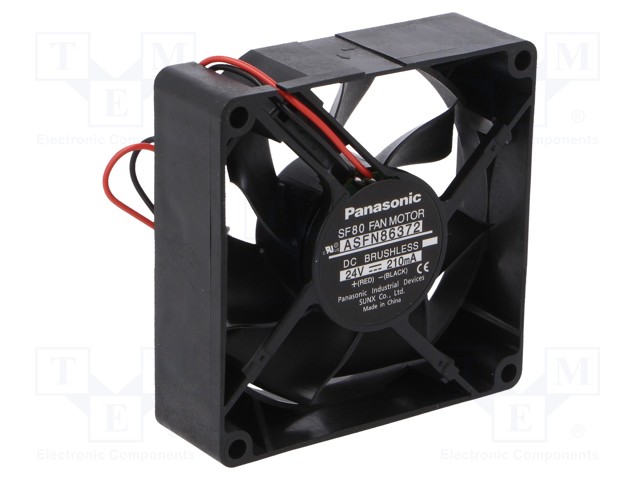

Fan: DC; axial; 24VDC; 80x80x25mm; 72m3/h; 35dBA; ball bearing

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: ASFN86372
    Manufacturer: PANASONIC
    Manufacturer code: ASFN86372
    • Supply voltage
    • Operating voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Cable length
    • Wire size
    • Weight
    • Current rating
    • Fan efficiency
    • Power consumption
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Noise level

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: DC; axial; 24VDC; 80x80x25mm; 72m3/h; 35dBA; ball bearing

    Supply voltage 24V DC
    Operating voltage 10...27.6V
    Operating temperature -10...60°C
    Enclosure material plastic
    Leads 2 leads
    Cable length 300mm
    Wire size 24AWG
    Weight 80g
    Current rating 210mA
    Fan efficiency 72m<sup>3</sup>/h
    Power consumption 5.04W
    Rotational rate/speed 3250rpm
    Fan motor brushless DC motor
    Fan dimensions 80x80x25mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material plastic
    Kind of fan axial
    Type of fan DC
    Noise level 35dBA
