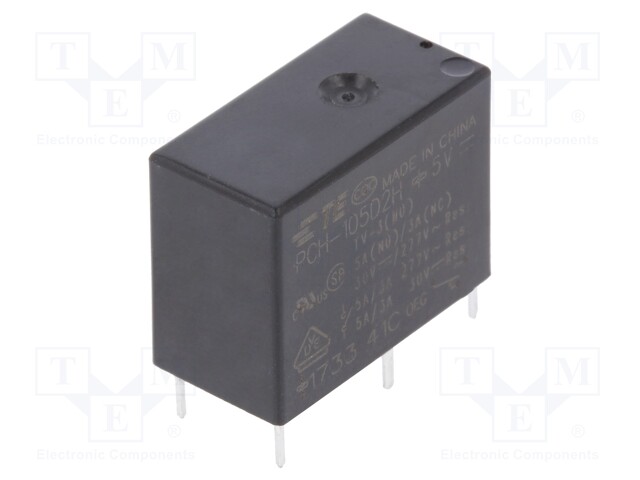

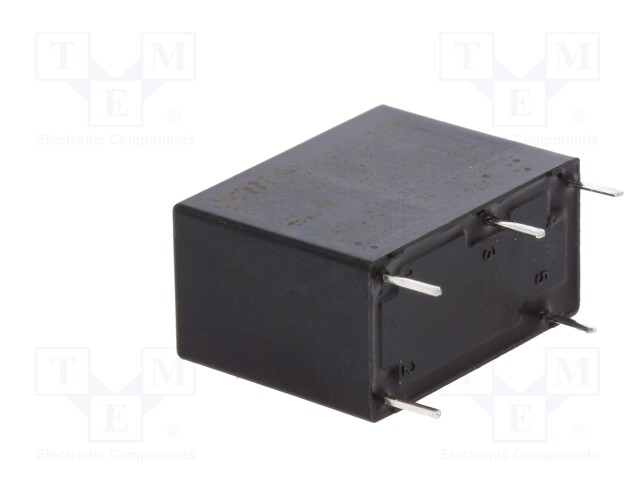

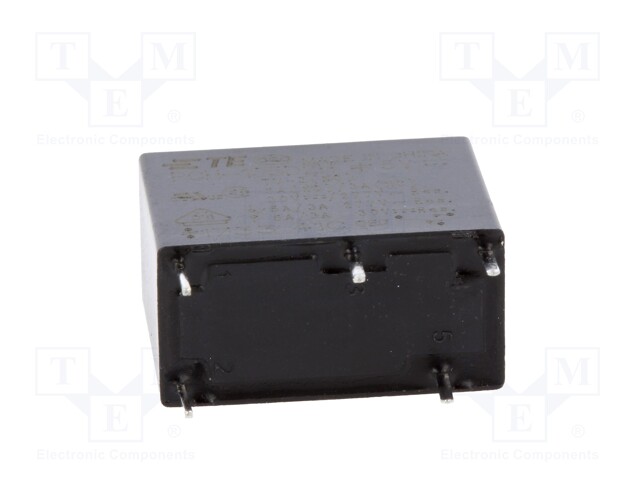

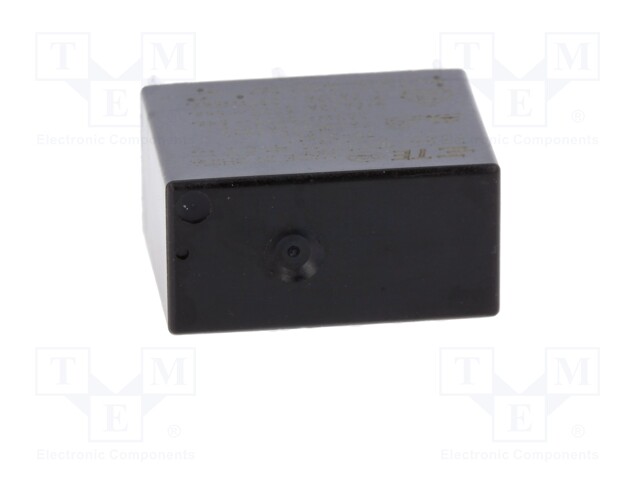

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 5A/277VAC; 5A/30VDC; 10A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 9-1440003-0
    Manufacturer: TE Connectivity
    Manufacturer code: 9-1440003-0
    • Mounting
    • Operating temperature
    • Series
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPDT; Ucoil: 5VDC; 5A/277VAC; 5A/30VDC; 10A

    Mounting THT
    Operating temperature -40...85°C
    Series PCH
    Contact material AgSnO<sub>2</sub>
    Body dimensions 20x15.2x10mm
    Mechanical durability 10000000cycles
    Switched voltage max. 30V DC, max. 277V AC
    Coil resistance 63Ω
    Rated coil voltage 5V DC

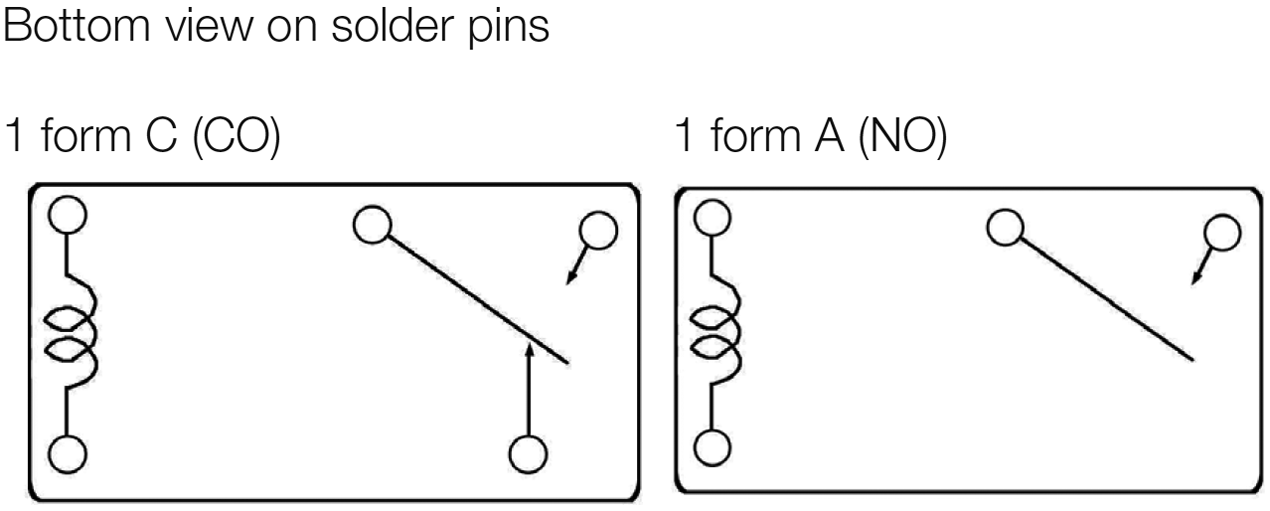

    Contacts configuration SPDT
    DC contacts rating @R 5A / 30V DC
    AC contacts rating @R 5A / 277V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Coil power consumption 400mW
    Operate time 10ms
    Release time 5ms
