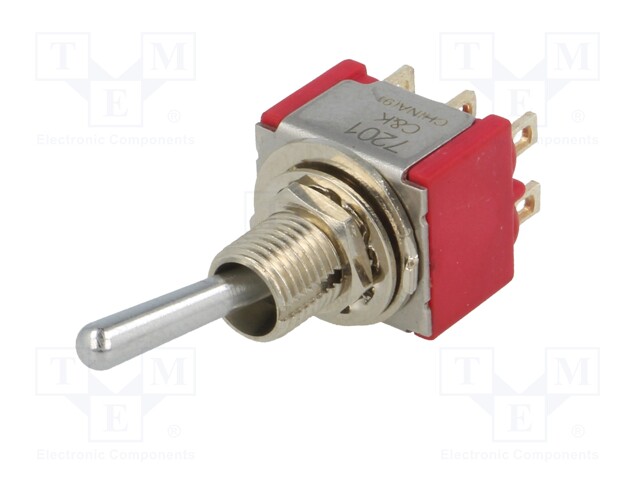

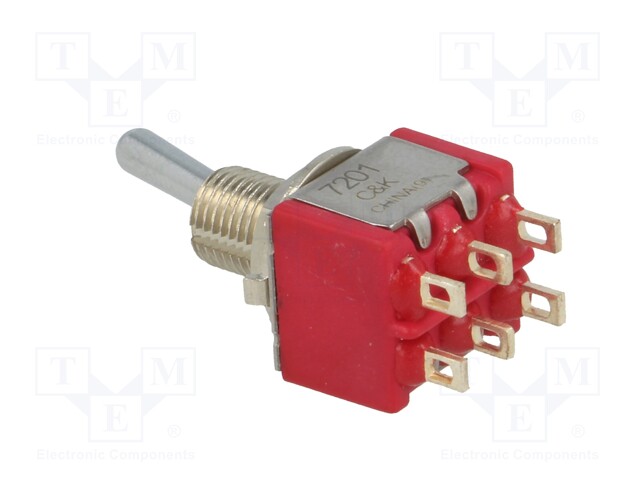

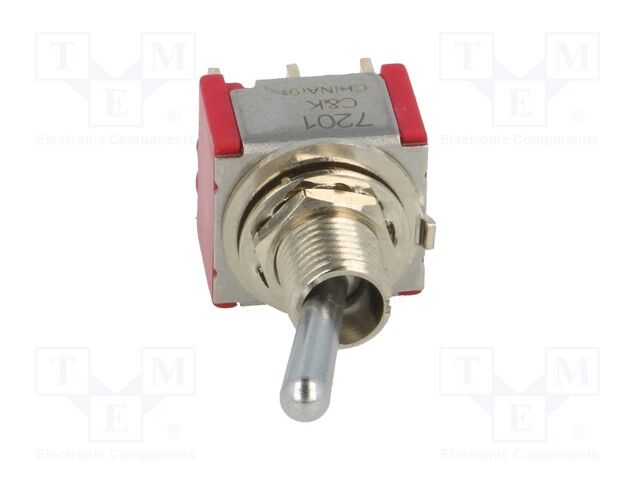

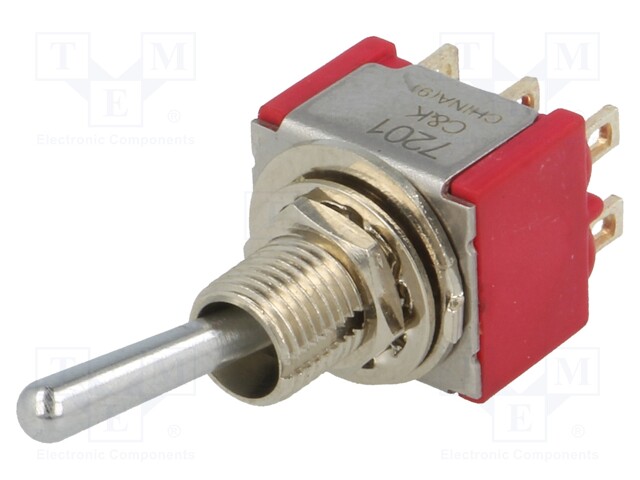

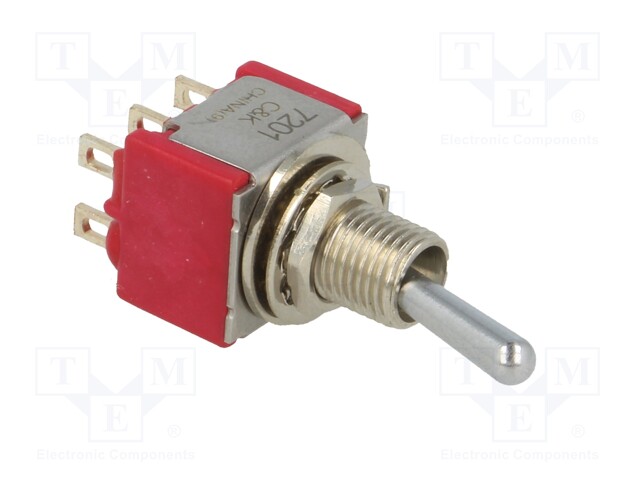

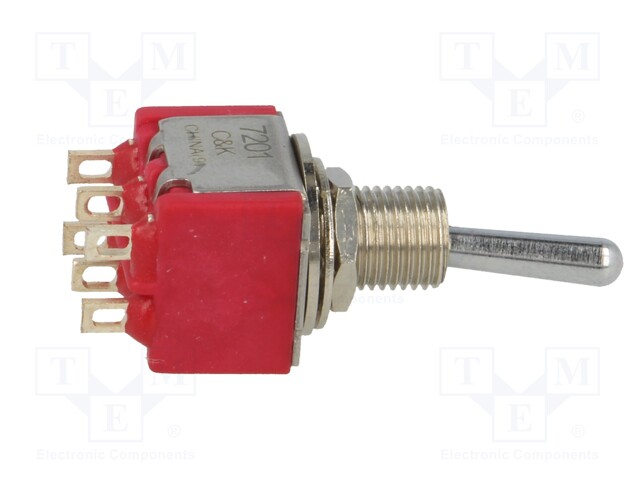

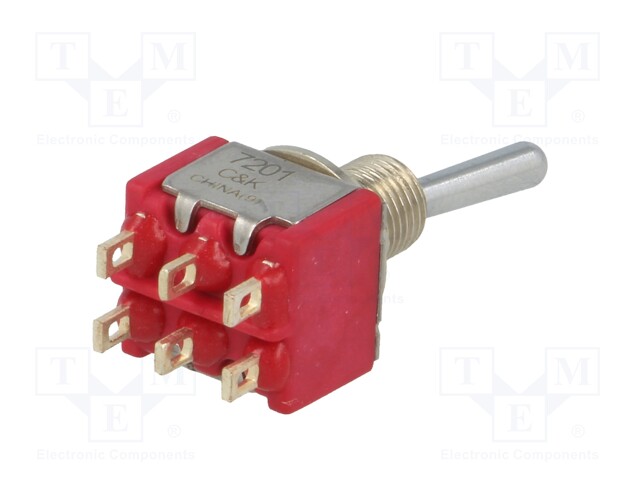

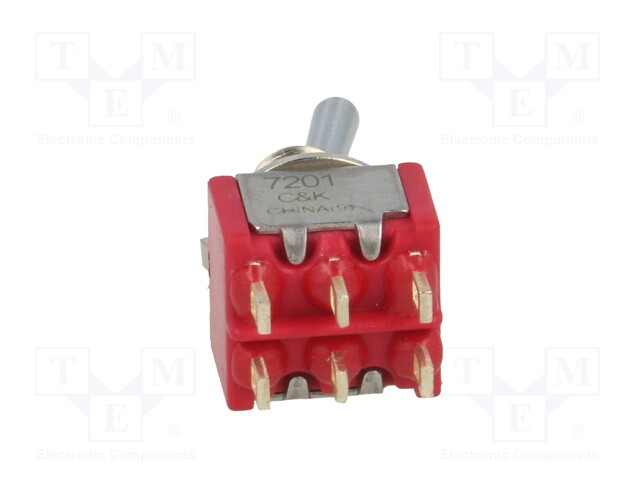

Switch: toggle; Pos: 2; DPDT; ON-ON; 2A/250VAC; 5A/28VDC; -30÷85°C

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 7201SYZQE
    Manufacturer: C&K
    Manufacturer code: 7201SYZQE
    • Operating temperature
    • IP rating
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Series
    • Max. contact resistance:
    • Mounting hole diameter
    • Body dimensions
    • Min. insulation resistance
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Knob height
    • Kind of toggle

    14.90 € 14.90 € (wo VAT) 14.9 EUR

    14.90 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: toggle; Pos: 2; DPDT; ON-ON; 2A/250VAC; 5A/28VDC; -30÷85°C

    Operating temperature -30...85°C
    IP rating IP40
    Type of switch toggle
    Contact plating silver plated
    Number of positions 2
    Leads for soldering
    Series 7000
    Max. contact resistance: 10mΩ
    Mounting hole diameter Ø6.35mm
    Body dimensions 12.7x6.86x8.89mm
    Min. insulation resistance 1GΩ
    Electrical life 100000cycles
    Contacts configuration DPDT
    DC contacts rating @R 5A / 28V DC
    AC contacts rating @R 2A / 250V AC
    Switching method ON-ON
    Stable positions number 2
    Knob height 11mm
    Kind of toggle round
