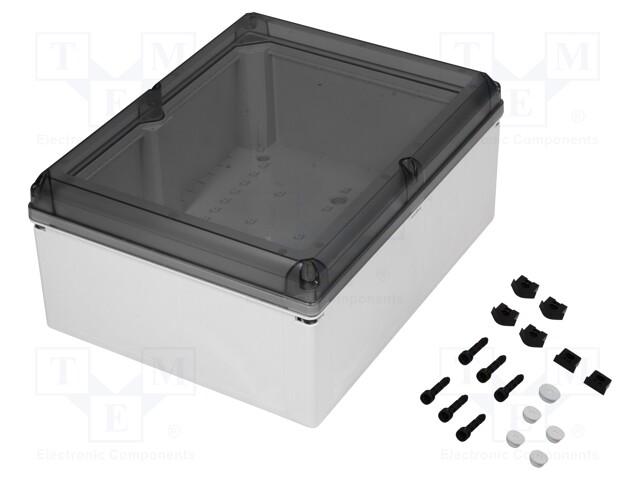

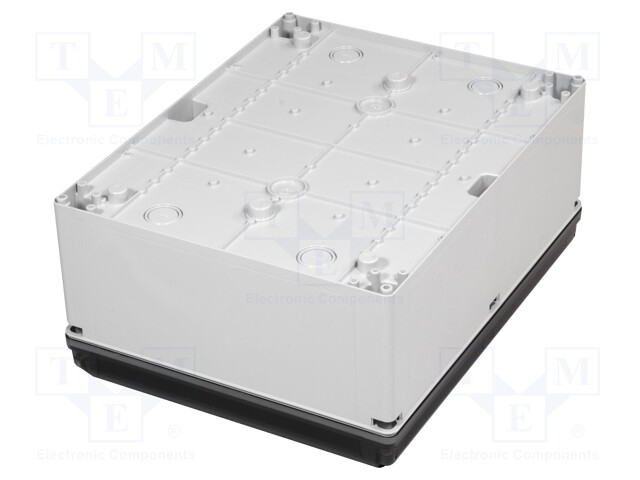

Enclosure: multipurpose; X: 400mm; Y: 500mm; Z: 220mm; GEOS; grey
Multiples:
1.0
Minimum quantity:
1.0
Product code:
70174501
Manufacturer: SPELSBERG
Manufacturer code: 70174501
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8BCF582DA9257E143&compId=GEOS.txt?ci_sign=692aaf5ed2c20654825e31c7093c444daee1de89
- pVersion=0046&contRep=ZT&docId=005056AB82531EE992AD879978AFF8BF&compId=GEOS-L-4050-22-to-70174501-en.pdf?ci_sign=a3e741a3d0d508a0eacaaff8e93f017dc41a3ea5
- pVersion=0046&contRep=ZT&docId=005056AB82531EE992AD96D8BC7AD8BF&compId=M-700-745-01-DRAWING.pdf?ci_sign=c20969b7fc4d5e797c344d8b5864814351e972da
Specification for Enclosure: multipurpose; X: 400mm; Y: 500mm; Z: 220mm; GEOS; grey
| Operating temperature | -35...80°C |
| IP rating | IP66, IP67 |
| Enclosure material | polycarbonate |
| Type of enclosure | multipurpose |
| Flammability rating | UL94V-2 |
| Dimension Y | 500mm |
| Body colour | grey |
| Dimension X | 400mm |
| Dimension Z | 220mm |
| Cover colour | transparent |
| Cover material | polycarbonate (PC) |
| Mechanical impact resistance | IK09 |
