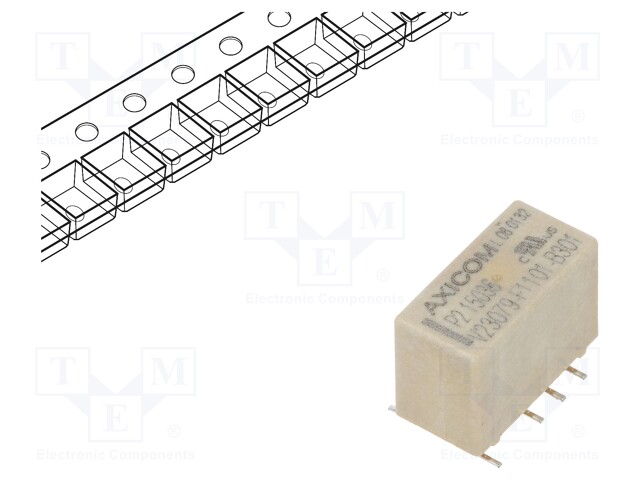

Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 2A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 7-1393788-3
    Manufacturer: TE Connectivity
    Manufacturer code: 7-1393788-3
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

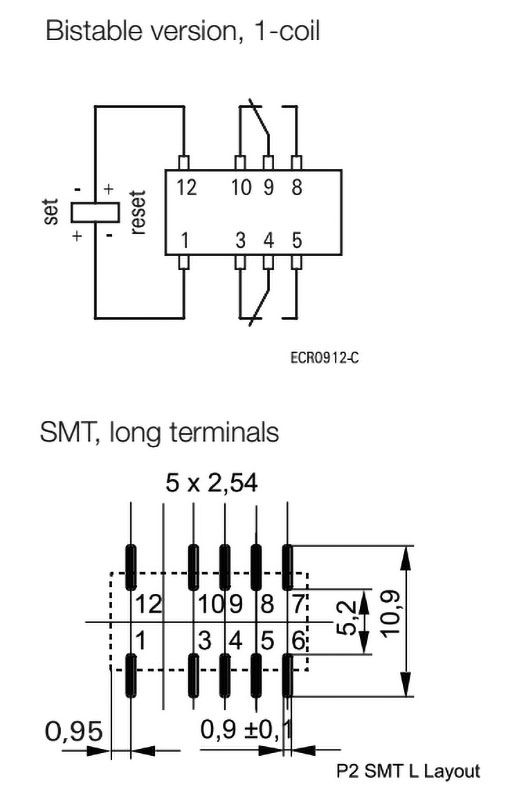

    Specification for Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 2A/30VDC

    Mounting SMT
    Operating temperature -40...85°C
    Terminal pitch 2.54mm
    Body dimensions 14.5x7.2x9.8mm
    Switched voltage max. 220V DC, max. 250V AC
    Coil resistance 357Ω
    Rated coil voltage 5V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 2A
    Relay variant bistable, miniature
    Coil voltage max. 15.33V DC
    Type of relay electromagnetic
    Coil voltage min. 3.75V DC
    Coil power consumption 70mW
