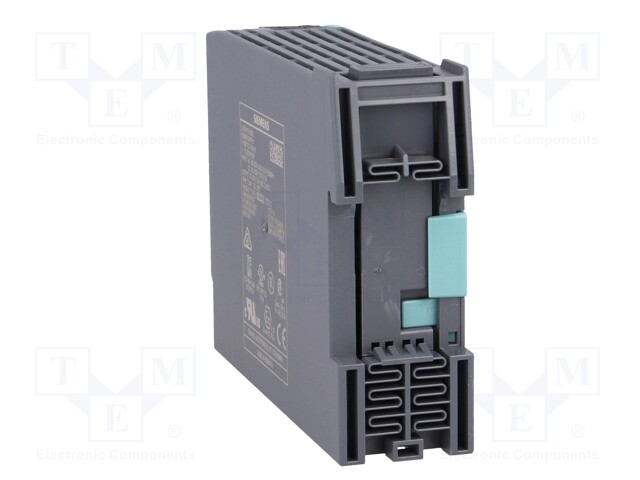

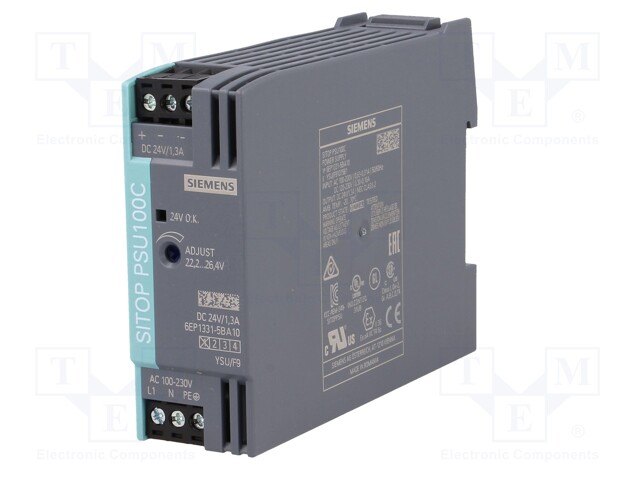

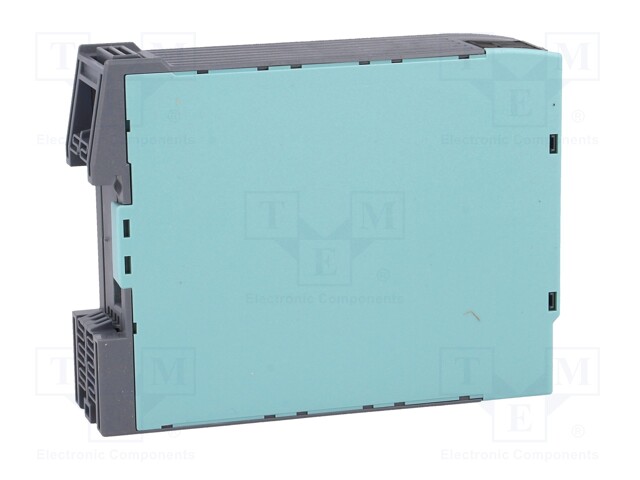

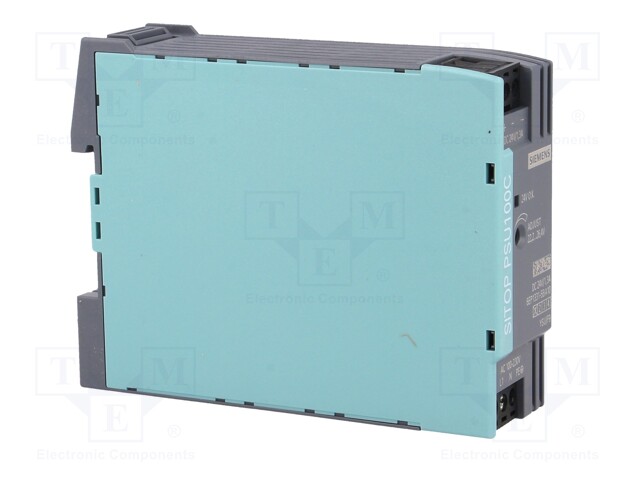

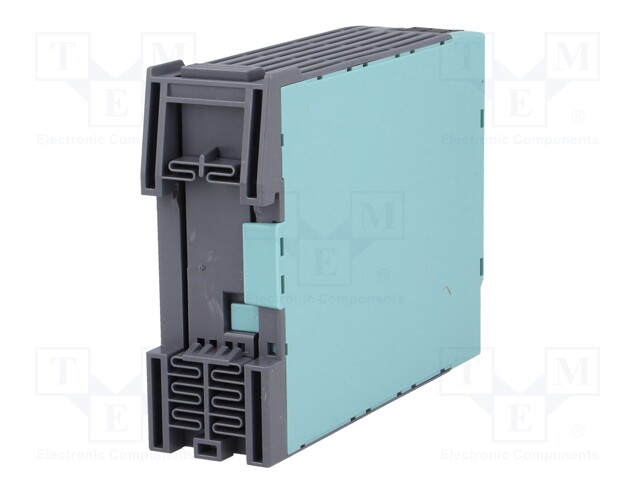

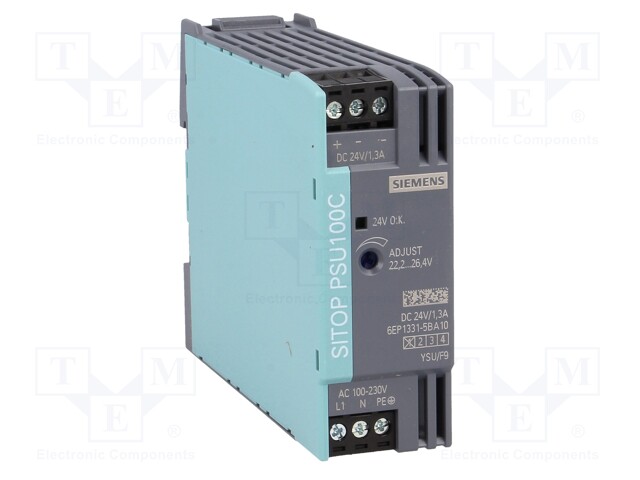

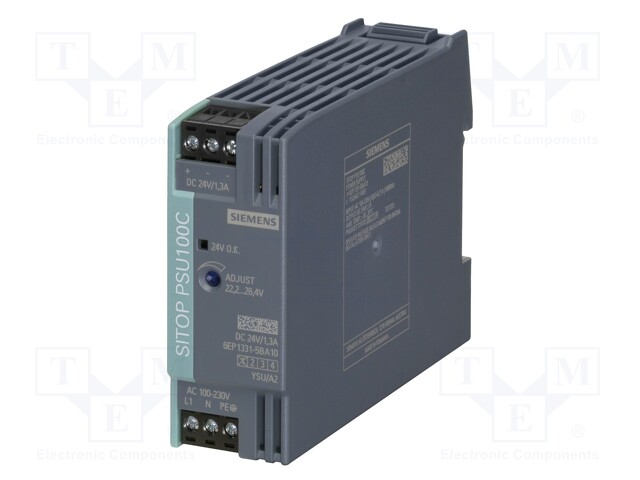

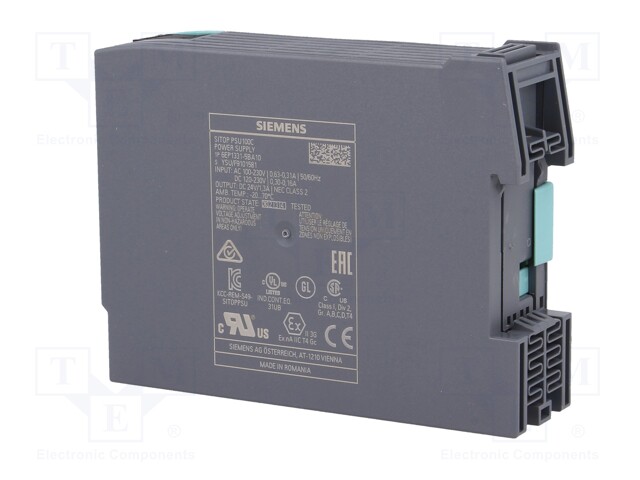

Power supply: switched-mode; 30W; 24VDC; 1.3A; 85÷264VAC; IP20
Multiples:
1.0
Minimum quantity:
1.0
Product code:
6EP1331-5BA10
Manufacturer: SIEMENS
Manufacturer code: 6EP1331-5BA10
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3ABEB71502DFCC1DC&compId=INB-ZAS-DIN-EN.pdf?ci_sign=4f05ad7e6bee992fce562e9c2b0560fdc0cebdad
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE584EC8967D5FE8469&compId=6EP1331-5BA10.pdf?ci_sign=435adcb0a4a40ea9ea36ff958714d062655608a2
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE7A9896A9C4BFC874A&compId=SITOP%202017-EN.pdf?ci_sign=4358054467bc1a187d0a4c1a2b697e577fbbffc5
Specification for Power supply: switched-mode; 30W; 24VDC; 1.3A; 85÷264VAC; IP20
| Output current | 1.3A |
| Mounting | for DIN rail mounting |
| Supply voltage | 85...264V AC, 110...300V DC |
| Power | 30W |
| Operating temperature | -20...70°C |
| IP rating | IP20 |
| Protection | anti-overvoltage, short circuit protection |
| Type of power supply | switched-mode |
| Series | SITOP compact |
| Body dimensions | 30x80x100mm |
| Output voltage | 24V DC |
| Efficiency | 86% |
| Number of outputs | 1 |
| Electrical connection | terminal block |
| Kind of power supply | for DIN rail |
