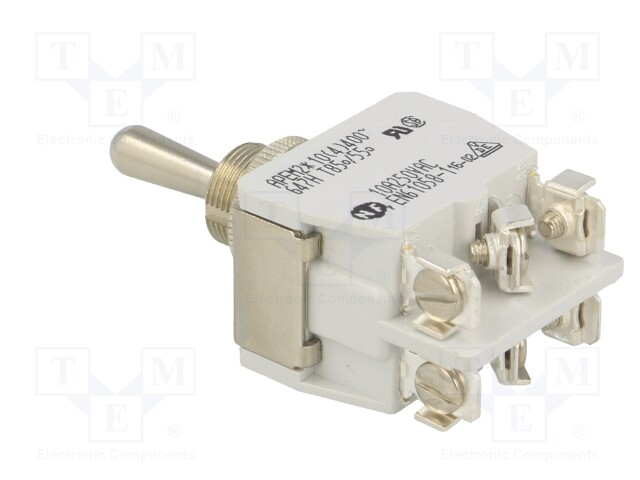

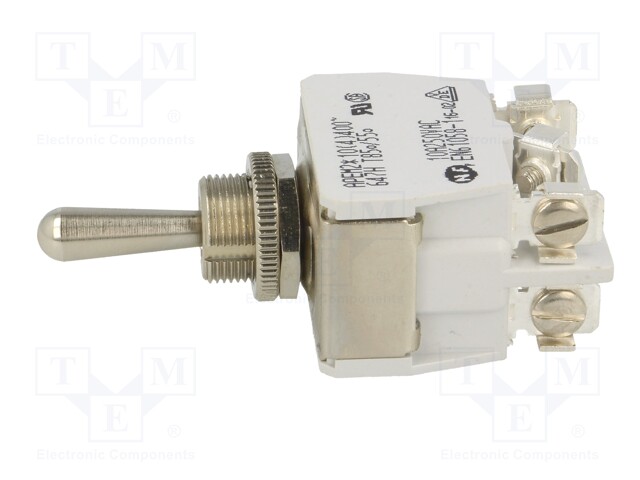

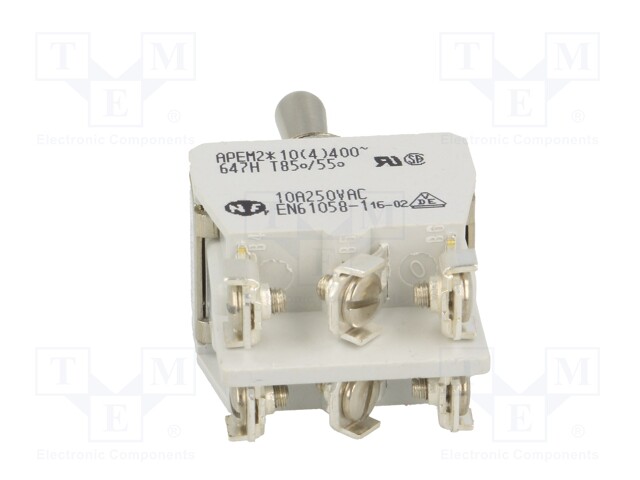

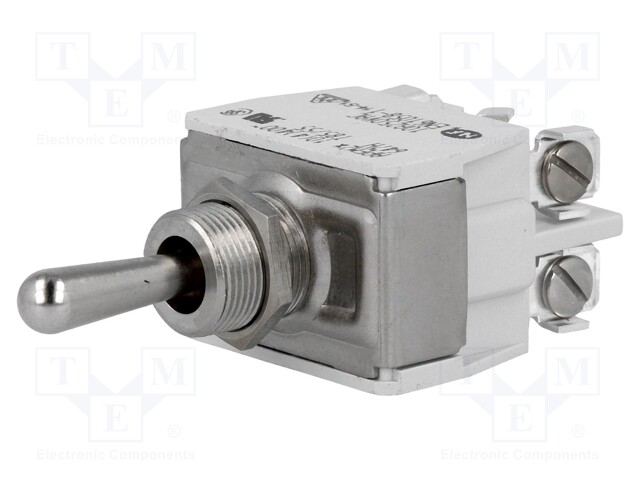

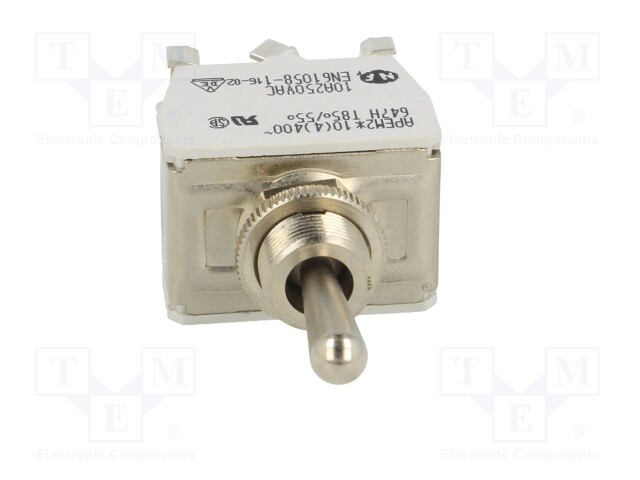

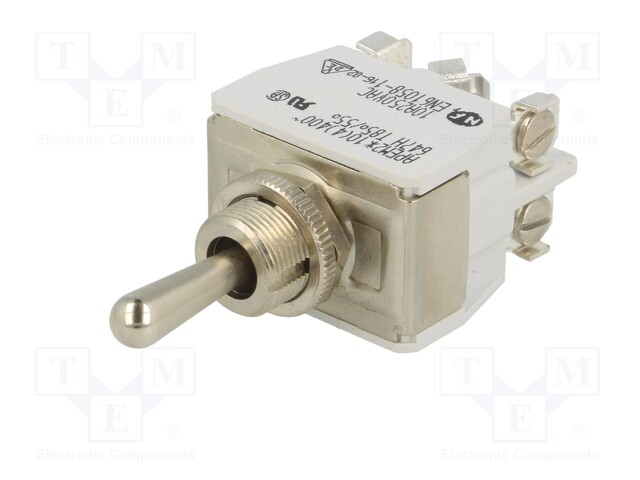

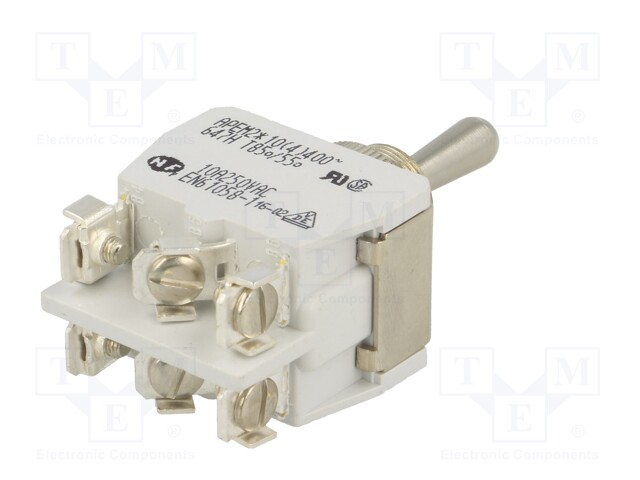

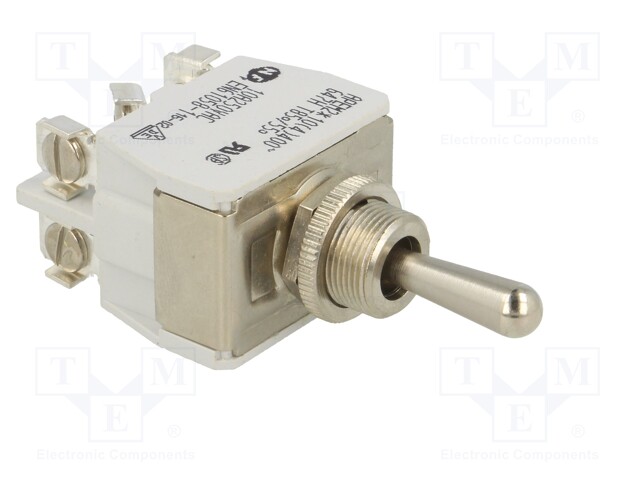

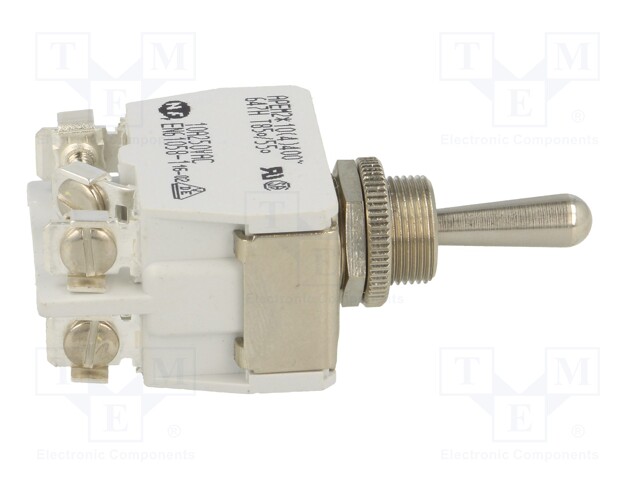

Switch: toggle; Pos: 3; DP3T; (ON)-OFF-(ON); 10A/250VAC; 5A/25VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 647H
    Manufacturer: APEM
    Manufacturer code: 647H
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Max. contact resistance:
    • Mounting hole diameter
    • Body dimensions
    • Panel thickness
    • Min. insulation resistance
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Knob height
    • Kind of toggle

    14.76 € 14.76 € (wo VAT) 14.76 EUR

    14.76 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: toggle; Pos: 3; DP3T; (ON)-OFF-(ON); 10A/250VAC; 5A/25VDC

    Operating temperature -20...55°C
    Type of switch toggle
    Contact plating silver nickel alloy
    Number of positions 3
    Leads screw terminals
    Max. contact resistance: 10mΩ
    Mounting hole diameter Ø12.2mm
    Body dimensions 29.5x14x15mm
    Panel thickness max. 4.5mm
    Min. insulation resistance 1GΩ
    Electrical life 10000cycles
    Contacts configuration DP3T
    DC contacts rating @R 5A / 25V DC
    AC contacts rating @R 10A / 250V AC
    Switching method (ON)-OFF-(ON)
    Stable positions number 1
    Knob height 17.5mm
    Kind of toggle round
