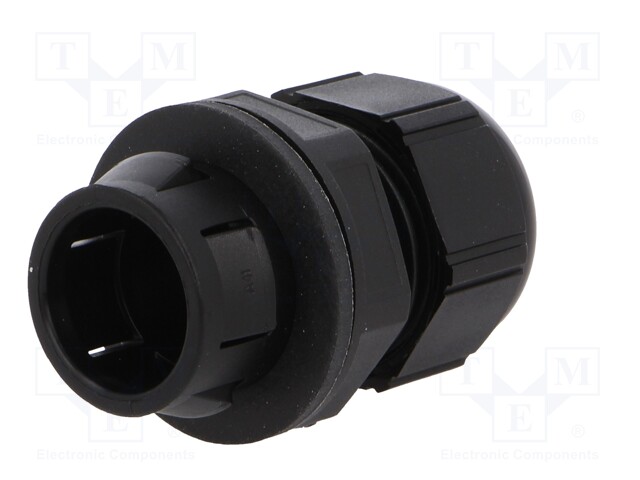

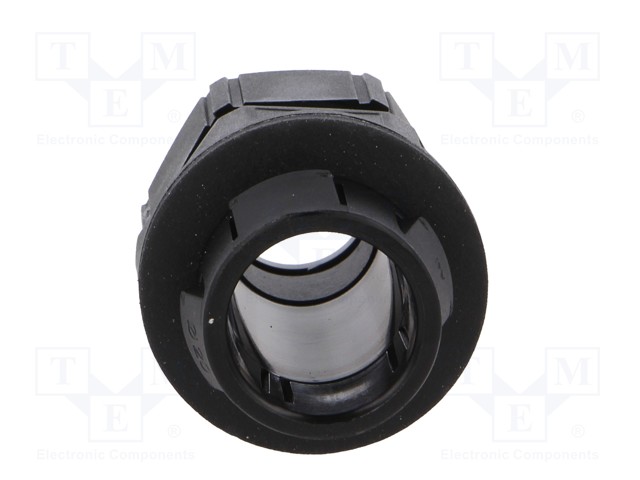

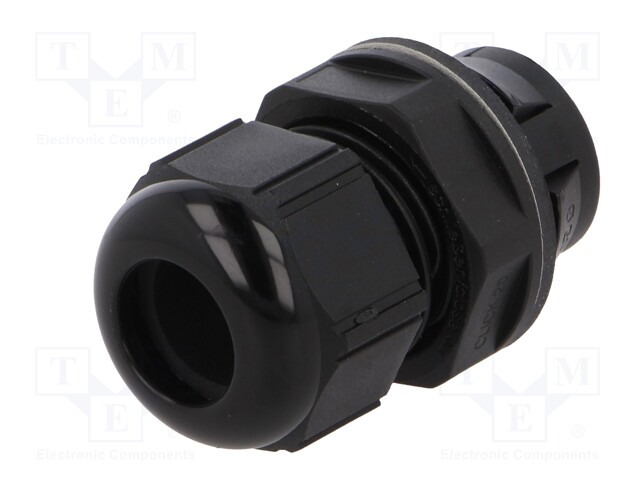

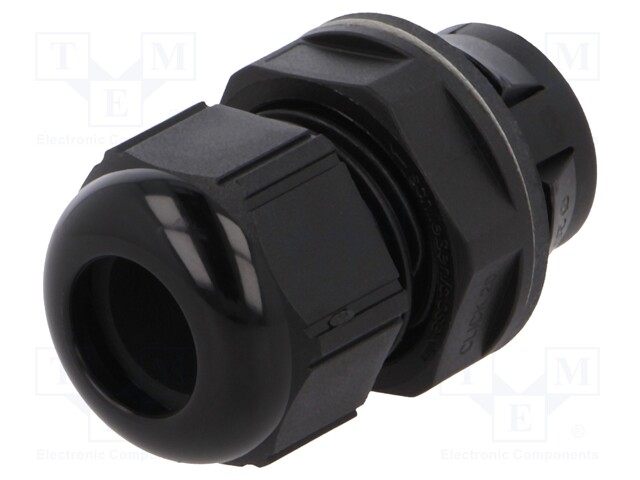

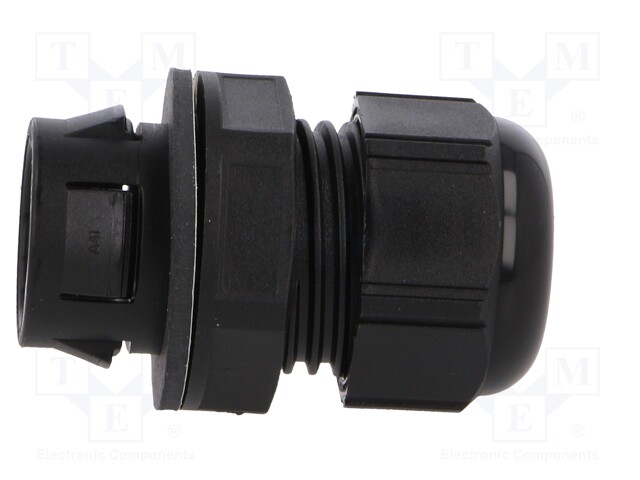

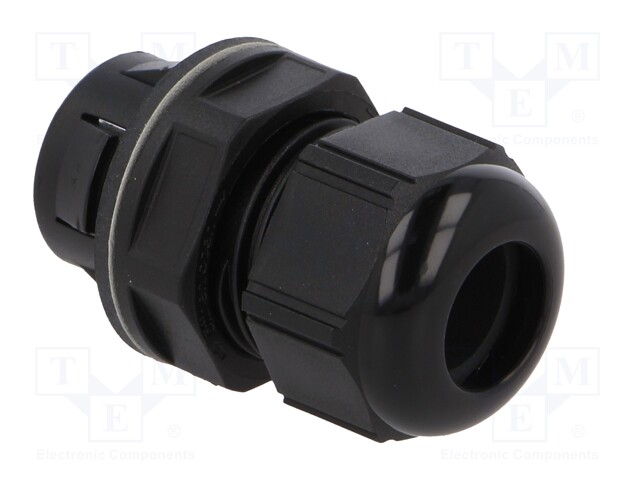

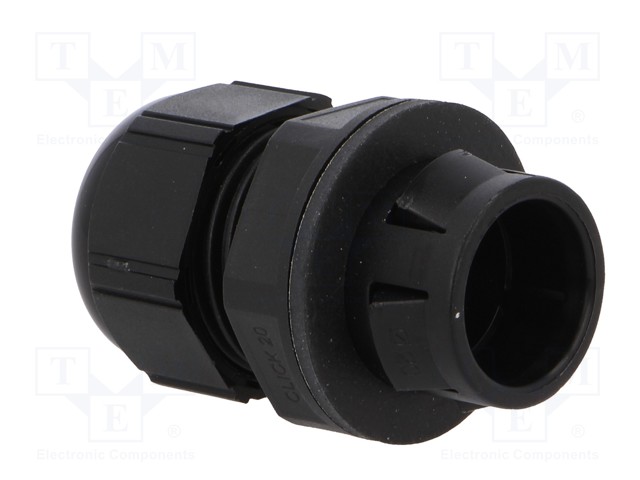

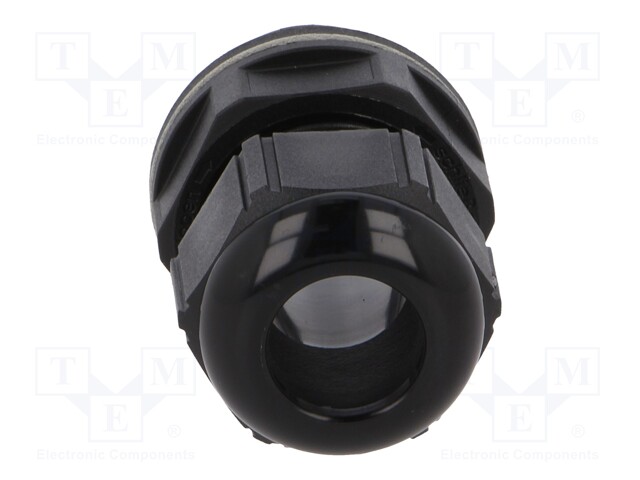

Cable gland; IP68; Mat: polyamide; black; push-in
Multiples:
1.0
Minimum quantity:
1.0
Product code:
53112883
Manufacturer: LAPP KABEL
Manufacturer code: 53112883
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F994F29A7BEA18&compId=CLICK-M32-RAL9005.txt?ci_sign=ef1592c68747a142ce095326dffc8f5562071941
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69F80702951E76FA8&compId=SKINTOP%20CLICK-EN.pdf?ci_sign=91edc23f28e1227e06514829e2860cf07fee8ad0
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE891F3328F900E33D3&compId=DB53112686EN.pdf?ci_sign=a2407b77d4509887165c6669469ae7990f33efaa
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE891F33315775533D3&compId=httpsyoutu.beaNU_jK3oO4w.txt?ci_sign=539cfc1d5a1910d368920a145704f98a435e5236
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE891F33315775A73D3&compId=LAPP_PRO26624ENGB.pdf?ci_sign=125091deefb1cede137da9750cbec606f03b5e8e
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDA98BF6482EA1AA0C4&compId=LAPP-THREAD%20DIMENSIONS.pdf?ci_sign=bcfc88b9ba68bf1ed1c6e324e7ca849fbd37fe64
Specification for Cable gland; IP68; Mat: polyamide; black; push-in
| Operating temperature | -20...100°C |
| IP rating | IP68 |
| Mechanical mounting | push-in |
| Resistance to | UV rays |
| Body material | polyamide |
| Body colour | black |
| Panel cutout diameter | 20.3mm |
| Panel thickness | 1...4mm |
| Cable external diameter | 7...13mm |
| Type of cable accessories | cable gland |
