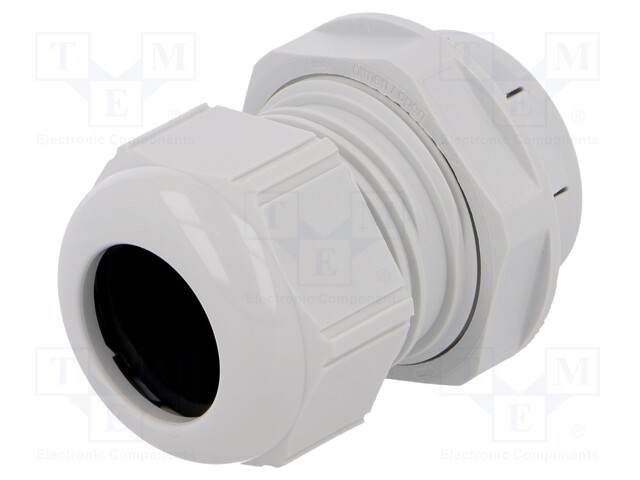

Cable gland; IP68; Mat: polyamide; light grey; push-in
Multiples:
1.0
Minimum quantity:
1.0
Product code:
53112694
Manufacturer: LAPP KABEL
Manufacturer code: 53112694
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F994F29A7BEA18&compId=CLICK-M32-RAL9005.txt?ci_sign=ef1592c68747a142ce095326dffc8f5562071941
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69F80702951E76FA8&compId=SKINTOP%20CLICK-EN.pdf?ci_sign=91edc23f28e1227e06514829e2860cf07fee8ad0
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE891F336155702B3D3&compId=LAPP_PRO26624ENGB.pdf?ci_sign=6b55c3b362689b1a6df233d090de357313d638a8
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE891F33656896873D3&compId=DB53112686EN.pdf?ci_sign=bb896b6ad0f2f5c27187defbff86545645fd0c45
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE891F33656896AF3D3&compId=httpsyoutu.beaNU_jK3oO4w.txt?ci_sign=73e457f61d233c2eb037c342d3d19190f7103211
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDA98BF6482EA1AA0C4&compId=LAPP-THREAD%20DIMENSIONS.pdf?ci_sign=bcfc88b9ba68bf1ed1c6e324e7ca849fbd37fe64
Specification for Cable gland; IP68; Mat: polyamide; light grey; push-in
| Operating temperature | -20...100°C |
| IP rating | IP68 |
| Mechanical mounting | push-in |
| Body material | polyamide |
| Body colour | light grey |
| Panel cutout diameter | 32.3mm |
| Panel thickness | 1...4mm |
| Cable external diameter | 11...21mm |
| Type of cable accessories | cable gland |
