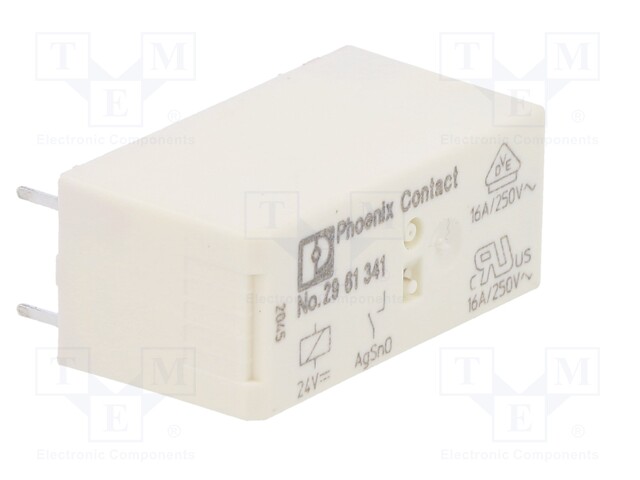

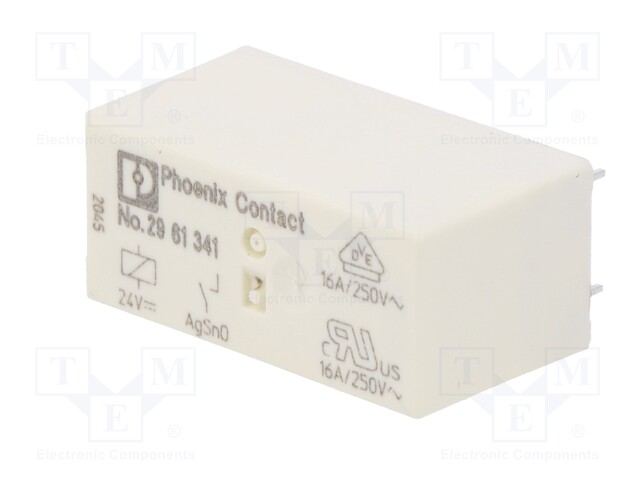

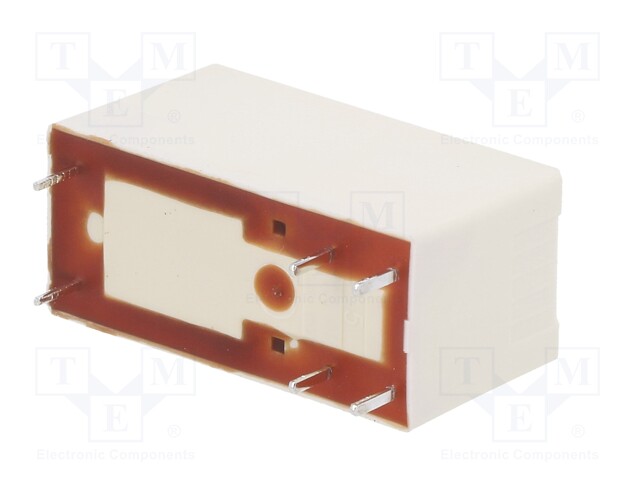

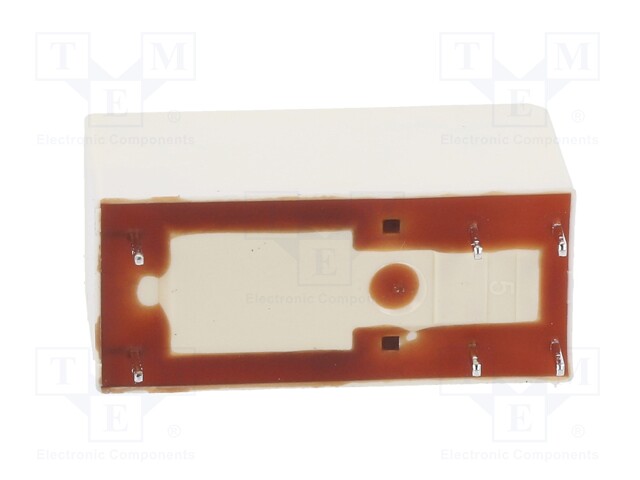

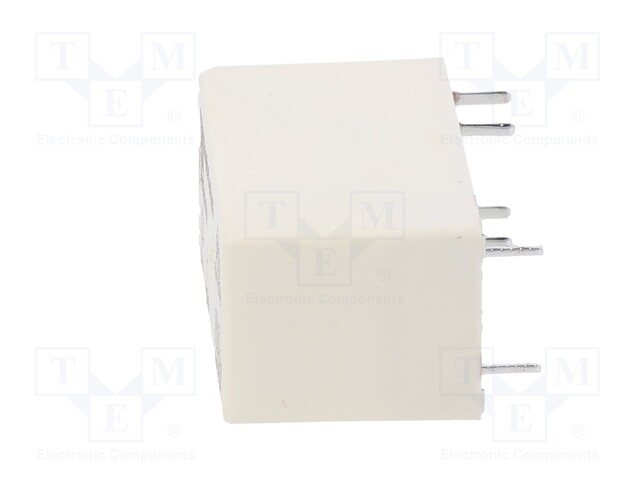

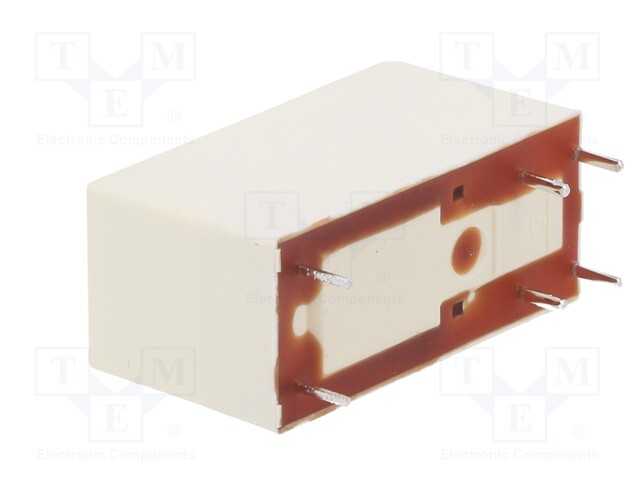

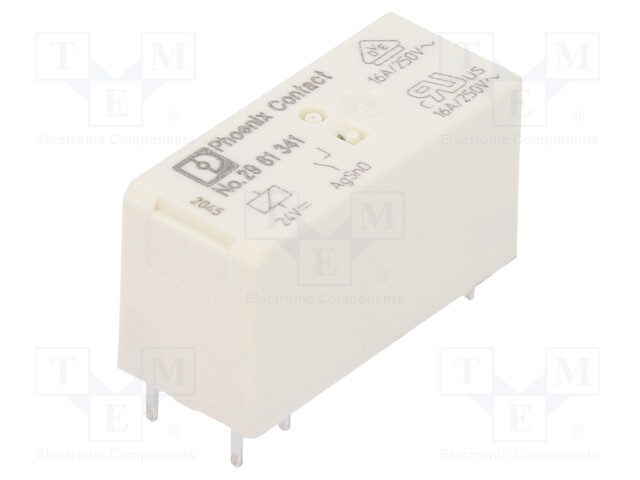

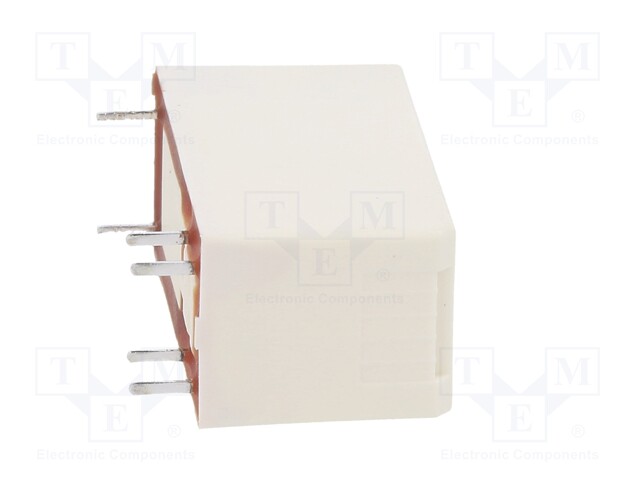

Relay: electromagnetic; SPST; Ucoil: 24VDC; 16A/24VDC; max.250VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 2961341
    Manufacturer: PHOENIX CONTACT
    Manufacturer code: 2961341
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Coil voltage min.
    • Operate time
    • Release time
    • Coil current

    4.98 € 4.98 € (wo VAT) 4.98 EUR

    4.98 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST; Ucoil: 24VDC; 16A/24VDC; max.250VAC

    Mounting PCB
    Operating temperature -40...85°C
    Leads for soldering
    Body dimensions 29x12.7x15.7mm
    Mechanical durability 30000000cycles
    Switched voltage max. 250V AC, max. 250V DC
    Coil resistance 1.44kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST
    DC contacts rating @R 2A / 24V DC
    AC contacts rating @R 6A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Coil voltage max. 54V DC
    Coil voltage min. 19.2V DC
    Operate time 8ms
    Release time 3ms
    Coil current 17mA
