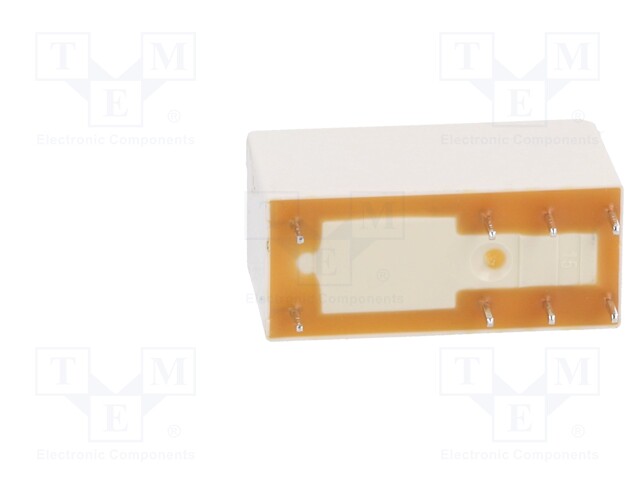

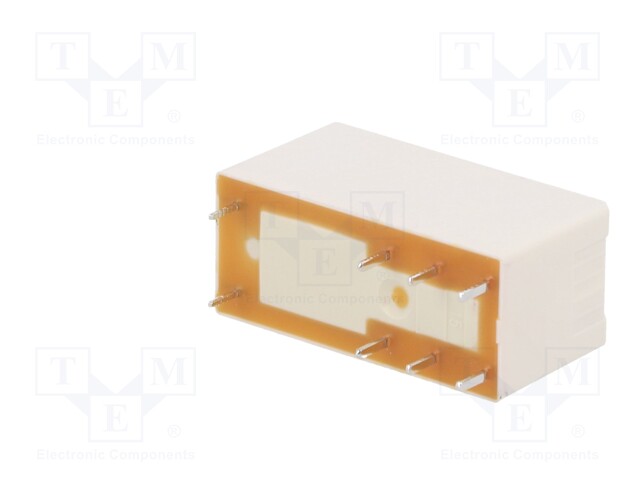

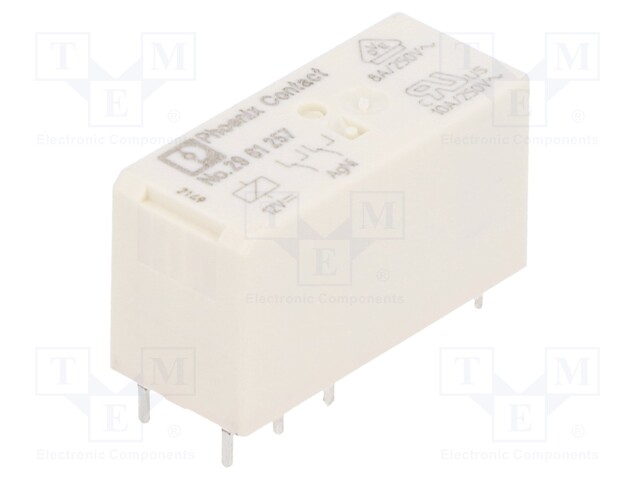

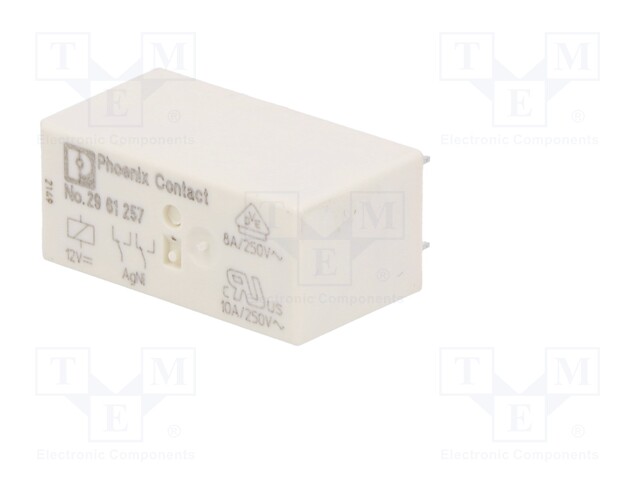

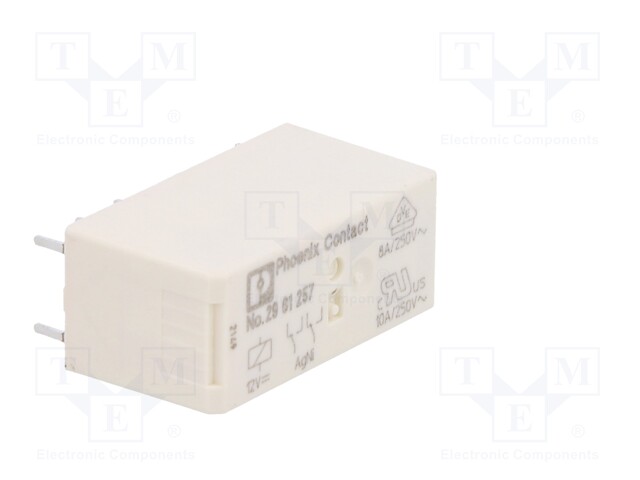

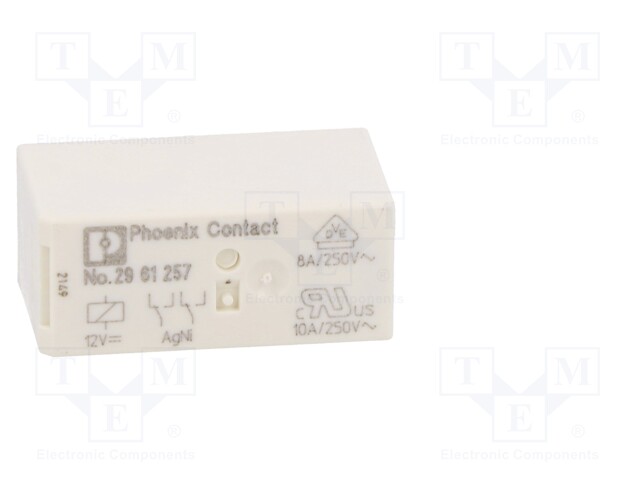

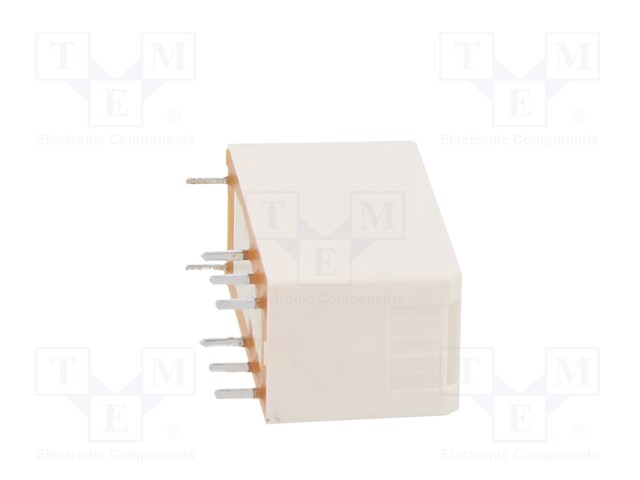

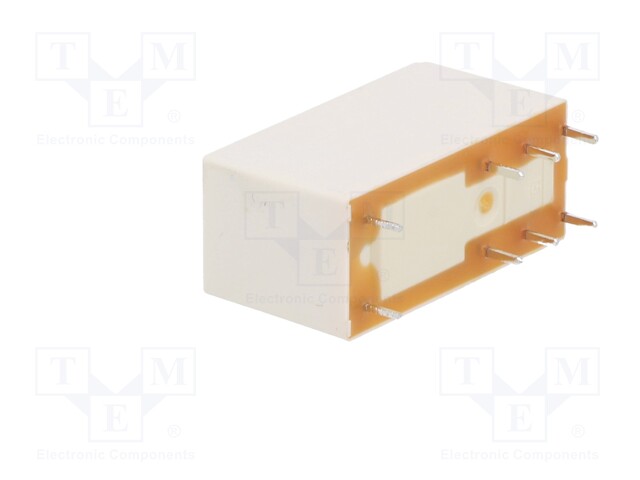

Relay: miniature

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 2961257
    Manufacturer: PHOENIX CONTACT
    Manufacturer code: 2961257
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage min.
    • Operate time
    • Release time
    • Coil current

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: miniature

    Mounting PCB
    Operating temperature -40...85°C
    Leads for soldering
    Contact material AgNi
    Body dimensions 29x12.7x15.7mm
    Mechanical durability 30000000cycles
    Switched voltage max. 250V AC, max. 250V DC
    Coil resistance 360Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 24V DC
    AC contacts rating @R 3A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Coil voltage min. 7.8V DC
    Operate time 7ms
    Release time 3ms
    Coil current 33mA
