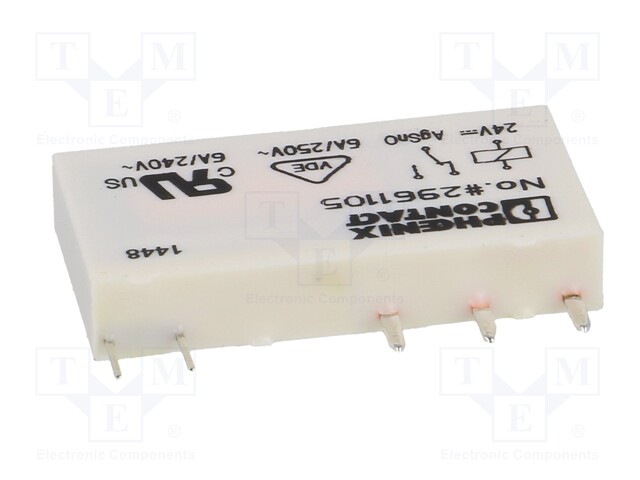

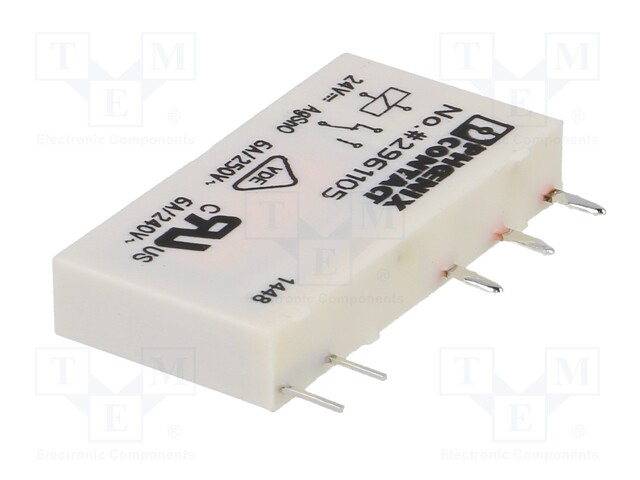

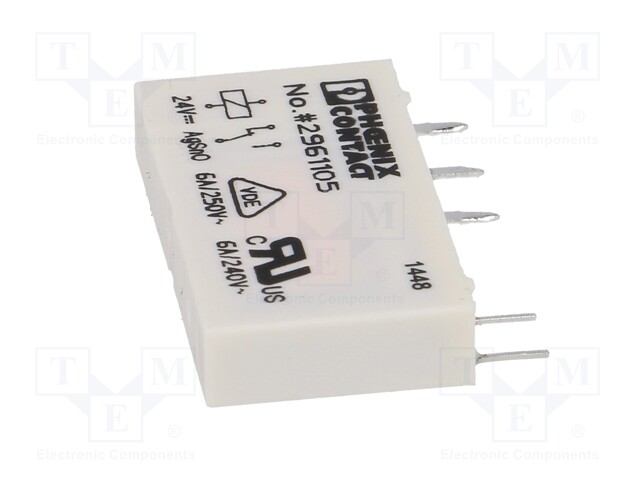

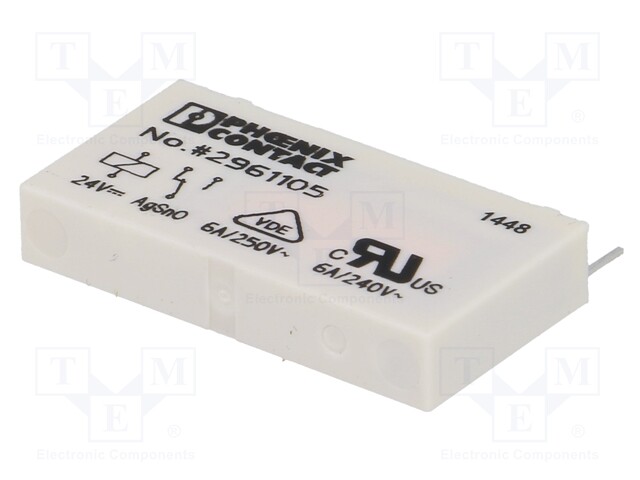

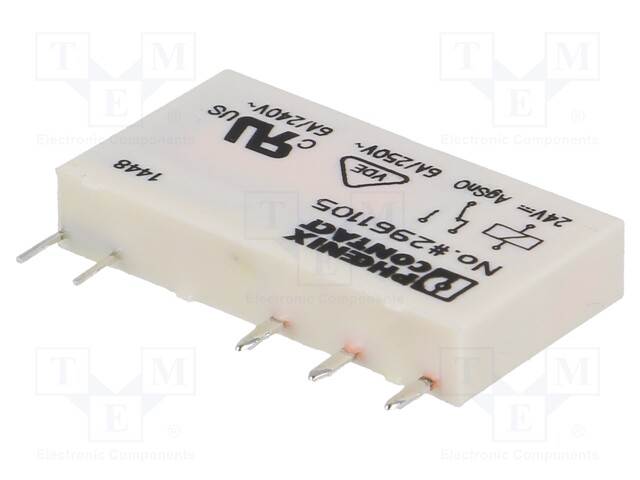

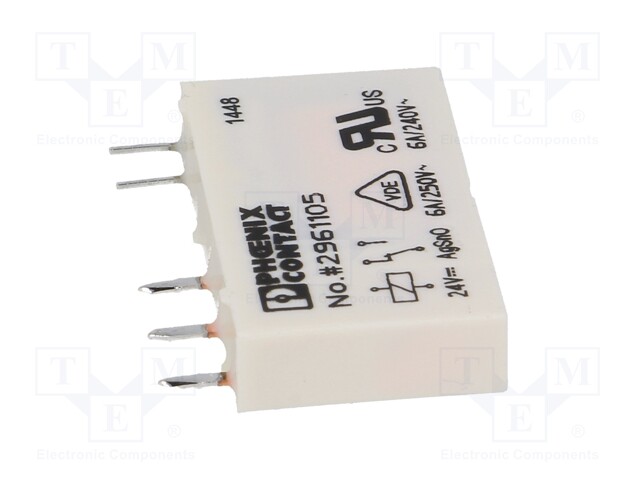

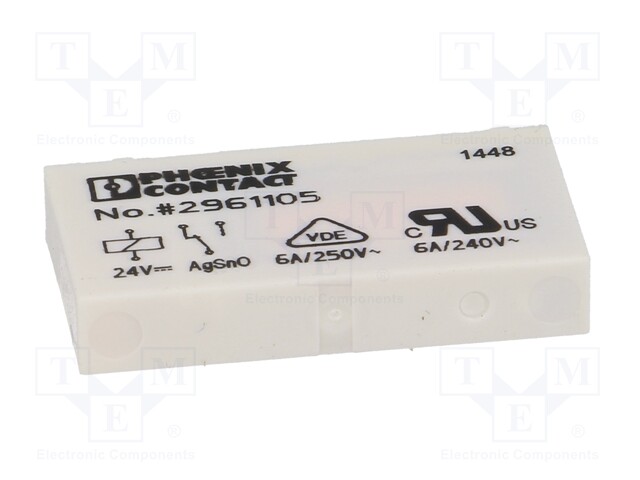

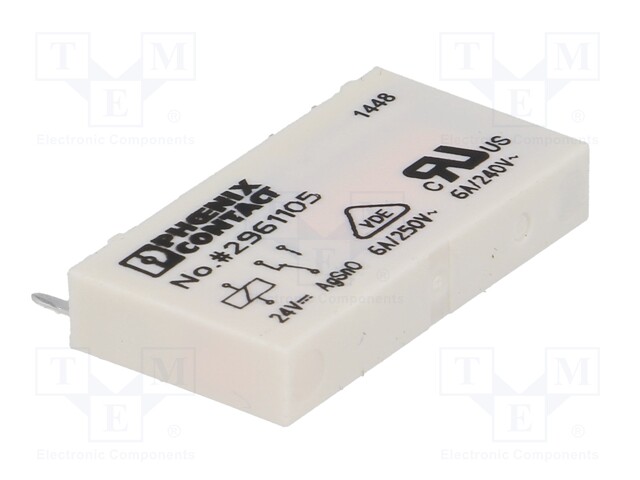

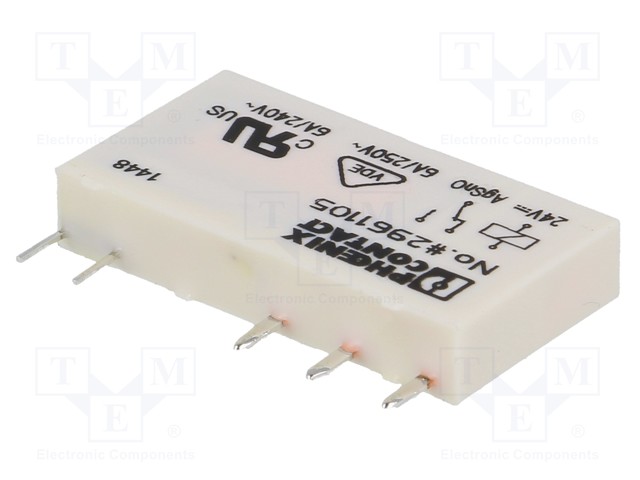

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A/250VAC; 2A/24VDC; 6A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 2961105-1
    Manufacturer: PHOENIX CONTACT
    Manufacturer code: 2961105
    • Mounting
    • Mounting
    • Operating temperature
    • Leads
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage min.
    • Operate time
    • Release time

    7.53 € 7.53 € (wo VAT) 7.53 EUR

    7.53 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A/250VAC; 2A/24VDC; 6A

    Mounting PCB, socket
    Operating temperature -40...85°C
    Leads for soldering
    Terminal pitch 5mm
    Body dimensions 28x5x15mm
    Mechanical durability 20000000cycles
    Switched voltage max. 250V DC, max. 250V AC
    Coil resistance 3.39kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 2A / 24V DC
    AC contacts rating @R 3A / 230V AC
    Contact current max. 6A
    Relay variant miniature
    Coil voltage min. 14.4V DC
    Operate time 5ms
    Release time 2.5ms
