Wire: ribbon; flat; 0.635mm; stranded; Cu; 20x30AWG; unshielded; PVC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 191-3005-020
    Manufacturer: AMPHENOL SPECTRA-STRIP
    Manufacturer code: 191-3005-020
    • Operating temperature
    • Core structure
    • Kind of core
    • Kind of core
    • Outer insulation material
    • Number of cores
    • Rated voltage
    • Ribbon cable pitch
    • B dimension
    • A dimension
    • Insulation colour
    • Type of wire
    • Shield structure
    • Package contents
    • Wire cross-section shape
    • Core diameter 2

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

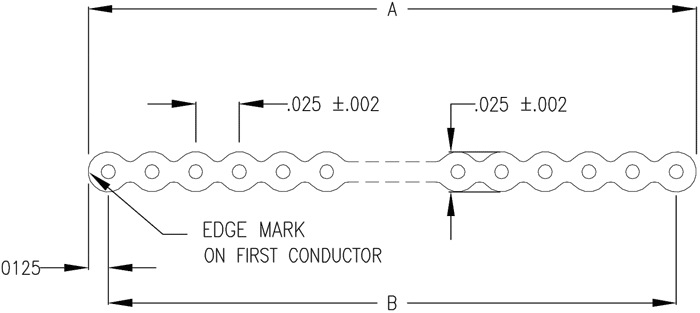

    Specification for Wire: ribbon; flat; 0.635mm; stranded; Cu; 20x30AWG; unshielded; PVC

    Operating temperature max. 105°C
    Core structure stranded
    Kind of core Cu, tinned
    Outer insulation material PVC
    Number of cores 20
    Rated voltage 150V
    Ribbon cable pitch 0.635mm
    B dimension 12.07mm
    A dimension 12.7mm
    Insulation colour grey
    Type of wire ribbon
    Shield structure unshielded
    Package contents 30,5m
    Wire cross-section shape flat
    Core diameter 2 30AWG
